MULE 52010 Quick Start Manual

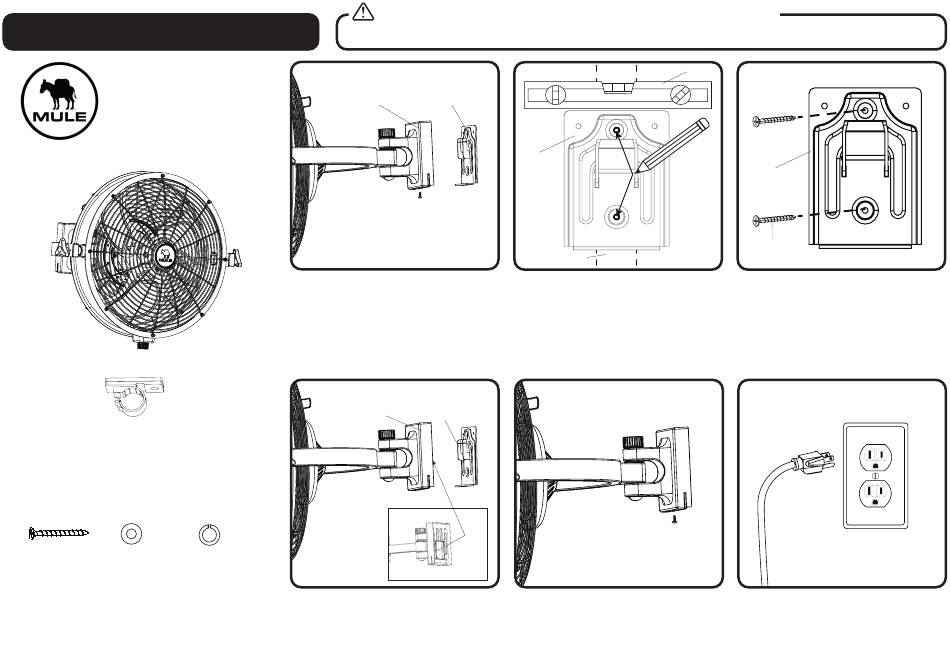

QUICK START GUIDE QUICK START
MULEPRODUCTS.COM
Cord Clip (x6)
HARDWARE KIT
Bracket Screw Washer
(x2) (x2)
+2 extra +2 extra
TOOLS REQUIRED
Tools required for assembly: Phillips screwdriver, level, drill, 1/8" drill bit, stud finder and pencil.
10037 • 011924
Read all instructions before you begin assembly. If any parts are missing, please contact
Customer Service at 1-877-289-8692, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
1 1
Fan Base
Remove the mounting screw from the underside of the fan base. Then
remove the mounting bracket.
4 4
Base of Fan
Lock Washer
(x2)
+2 extra
Hang the slot in the base of the fan on the hook preassembled to the
mounting bracket.
BEFORE YOU BEGIN ASSEMBLING THE GARAGE FAN
2 2
Mounting Bracket
Mounting
Bracket
Mounting Screw
Use a stud finder (sold separately) to locate the stud to which the fan
will be mounted. Determine the desired height of the mounting bracket.
Hold the mounting bracket against the wall and use a level (sold
separately) to ensure the mounting bracket is level with the horizon.
Then, use a pencil and mark the center of the two holes in the center
of the mounting bracket.
Note: When determining the location of the fan, ensure proximity to
120 V grounded outlet. The wall fan's power cord is 9 feet in length.
5 5
Hook
Mounting
Bracket
Slot
Base of Fan
Replace the previously removed mounting screw into the fan base to
secure the base to the mounting bracket.
1
Level 3 3
Pencil
Stud
Use a Phillips screwdriver to install the two bracket screws through the
mounting bracket, drywall (if applicable), and into the stud.
Note: Drilling pilot holes can make screw installation easier. If desired,
use a drill with an 1/8" diameter drill bit (or smaller) to drill the pilot
holes.
6 6
Mounting Screw
Plug the fan's power cord into a 120 V grounded outlet.

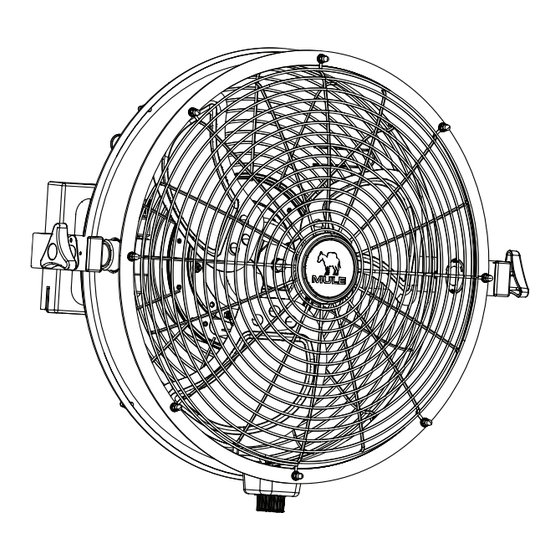

WALL FAN MODEL #52010, 52011
Mounting
Bracket
Bracket
Screw
