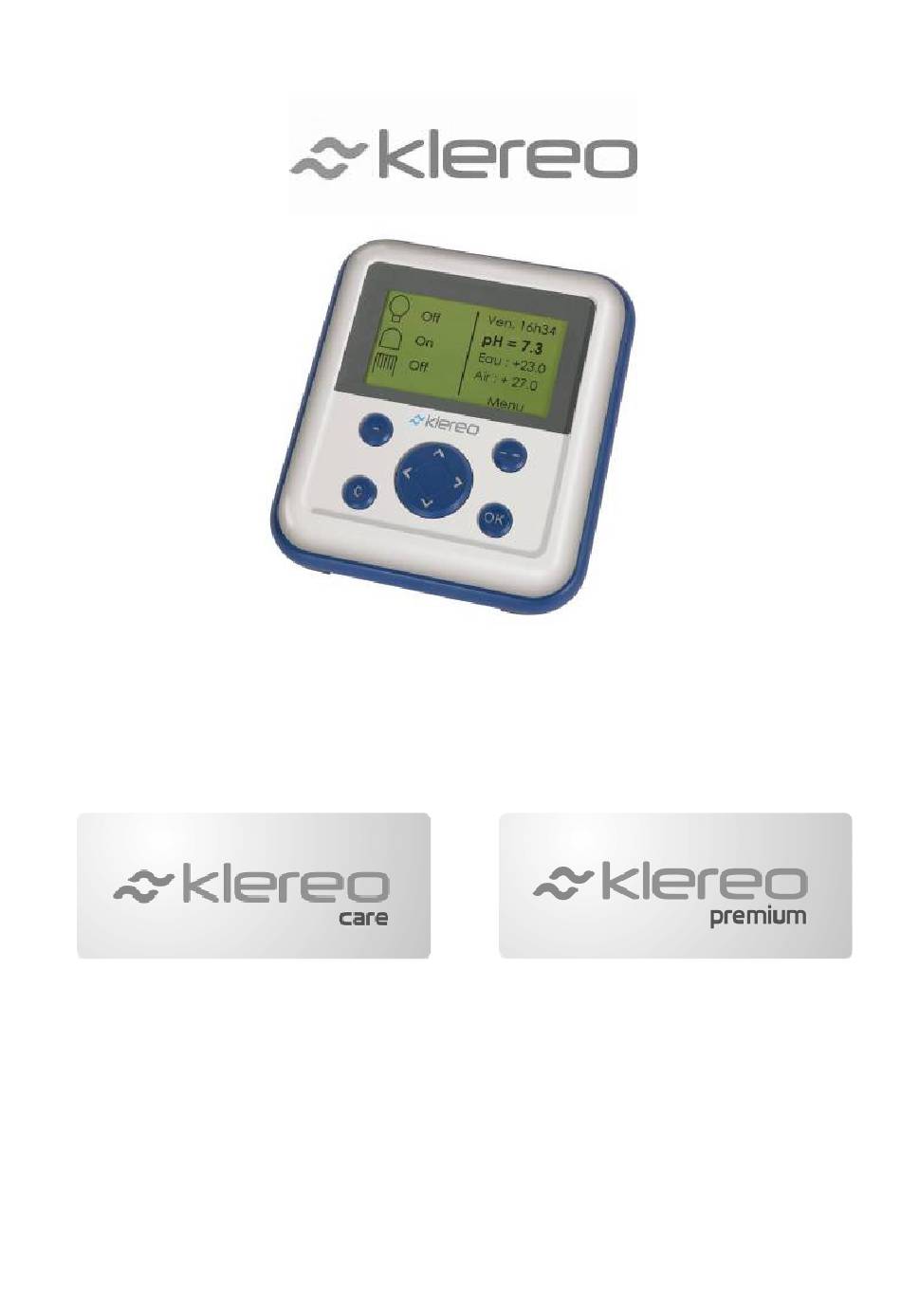

Klereo Care – Premium installation manual V2
SWIMMING POOL MONITORING SYSTEM
Notice
Installation manual
Read carefully and keep for future reference. Please study the manual closely, before
bringing the system into service (Version 2)
1 - The content of this booklet may be modified without prior notice.
2 - Printing restrictions mean that the displays shown in this booklet may vary from those
actually appearing on the product.
3 - The content of this booklet may not be reproduced in any way without the manufacturer's
permission.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Care and is the answer not in the manual?

Questions and answers

Related Manuals for Klereo Care

Summary of Contents for Klereo Care

  • Page 1 Klereo Care – Premium installation manual V2 SWIMMING POOL MONITORING SYSTEM Notice Installation manual Read carefully and keep for future reference. Please study the manual closely, before bringing the system into service (Version 2) 1 - The content of this booklet may be modified without prior notice.

  • Page 2: Table Of Contents

    ONNECTING THE LEREO AD CHARGER BASE ....................21 ONNECTING LEREO REMIUM CONTROL BOX UNIT 4.2.1 Klereo Care control box unit power supply ..................... 21 4.2.2 Klereo Premium control box unit power supply ....................21 ........................22 ONNECTING LEREO ARE INPUTS OUTPUTS ........................
  • Page 3 NSTALLATION POWER LINE COMMUNICATION PLUGS AND A REMOTE ANTENNA 5.2.1 Communication problem between the Klereo control box unit and the ADSL Internet box ......32 5.2.2 Communication problem between the Klereo Pad and the Klereo control box unit ........33 START UP ................................

  • Page 4: Klereo Care - Premium System Description

    Follow-up and remote control monitoring of pool equipments thanks a simple and user • friendly Internet interface (optional) Klereo Care - Premium kits contents Klereo Care et Premium kits are equipped as follows: Klereo Premium Klereo Care A Klereo PAD remote control display unit...

  • Page 5: Klereo Pad Remote Control Display Unit

    Figure 1. Klereo Care/Premium basic kit contents 1.3 Klereo PAD remote control display unit It is the interface between the user or the installer and the Klereo system. It allows visualizing the pool parameters and to remote control the different pool operational functions: filtering, lighting, heating and other auxiliary functions such as garden lighting, fountain, water blade, counter current system, cleaning robot, and so on.

  • Page 6: Klereo Care - Premium Kits Options

    Klereo Care – Premium installation manual V2 1.4 Klereo Care – Premium kits options Klereo Care - Premium kits can be upgraded with different options in order to optimize water treatment (pH and disinfectant regulation kits) as well as remote control your pool thorugh Internet(Klereo Connect kit).

  • Page 7: C) Active Oxygen Regulation Kit (Ref: Kl20-Oxy)

    Figure 8. Flow switch 1.4.4 Klereo Connect The Klereo Connect (Ref. KL60-C1) option allows to remote control the swimming pool via Internet. It is a user-friendly interface to visualize pool parameters and pilot pool equipments. Figure 9. Klereo Connect box...
  • Page 8 Klereo Care – Premium installation manual V2 COPIER UN ECRAN EN ANGLAIS Figure 10. Example of Klereo Connect interface screen...

  • Page 9: Usage Limitations

    Klereo Premium control box will be protected by a 30mA general earth leakage – protection. Klereo Premium control box unit is not fitted with electrical modules to drive directly the – filter pump. You need to make the connection with the filter pump control box equipped with a thermal overload circuit breaker and a contactor (the filter pump output will monitor the contactor coil A1 and A2).

  • Page 10: Hydraulic Installation

    Figure 11. Tools for installation We recommend to charge the Klereo Pad display unit when starting the installation so that it is operational when entering the settings and making the demo to the end user. (Refer to § 4.1: Connecting the Klereo Pad charger base and to § 6: Start Up).

  • Page 11: Hydraulic Accessories Positioning

    Klereo Care – Premium installation manual V2 The flow switch and water temperature sensor as well as pH and ORP probes must be installed: o After the filter o Before the heating system (Heating pump or heat exchanger) as well as before the water treatment injection points or the Salt Chlorinator cell.

  • Page 12: The Multi-Sensor Tube (Optional)

    Klereo Care – Premium installation manual V2 3.3.2 The multi-sensor tube (optional) Cut the pipe to a length of 440 mm for Ø 50 mm multi-sensor tubes and 550 mm for Ø 63 mm ones. If there is an elbow bend on the filter circuit, it must be at least 10cm .

  • Page 13: Positionning The Pressure Sensor

    Klereo Care – Premium installation manual V2 The following procedure should be used when inserting the probes into the holders. Do not force them into place but rather: 1. Unscrew the probe holder, and remove the metal and rubber washers.

  • Page 14: Installing The Flow Switch

    Klereo Care – Premium installation manual V2 3.6 Installing the flow switch The flow switch is optional to make sure that there is sufficient water stream flow in different places along the filtering network. Use a Ø 50 or 63 mm T shape collar to install it.

  • Page 15: Water Treatment Injection

    Mounting metering pumps (see manual for metering pump) 3.8 Water treatment injection Klereo advise to use a T shape collar for water treatment injection (pH correcting agent, disinfectant). When it is not possible to position a T shape collar, use a standard holding collar..

  • Page 16: Positioning Water Treatment Products, Injections And Empty Tank Level Detectors

    Klereo Care – Premium installation manual V2 Check direction of the arrow Apply Teflon tape to seal Figure 25. Mounting injector valve IMPORTANT Check direction of circulation and orientation of the non-return valve when fitting it. 3.9 Positioning water treatment products, injections and empty tank level...
  • Page 17 Check that the holding collars used to inject the products are sealed. The room must be ventilated. Keep a minimum distance of 1 m between the tanks and the Klereo components, to avoid fumes from the products damaging the system.

  • Page 18: Installing The Solenoid Valve For Bromine Or Chlorine Tablets Regulation

    Klereo Care – Premium installation manual V2 Use sodium hypochlorite in liquid form as disinfectant, sulfuric acid to reduce pH and caustic soda (sodium hydroxide) to increase pH. When making installation or when replacing a tank, check that the chlorine injection pump is connected to the liquid chlorine tank, and the same for the pH reduction or pH increase product injection pump.

  • Page 19: Installing The Cell With Klereo Salt Chlorinator

    Klereo Care – Premium installation manual V2 Figure 31. Second possibility for installing the Bromine regulation kit Connecting the solenoid valve is done in Ø 32mm. Use unions in case of pipes Ø 50 or 63mm. Hydraulic kits for Bromine are optional: KL20-KH50: 2 collars 3/4"...

  • Page 20: Electrical Installation

    Klereo Care – Premium installation manual V2 IMPORTANT The 3 gate valves installed on the by-pass are only used to make maintenance easier. They must remain imperatively fully open in order to have the maximum flow going through the cell.

  • Page 21: Connecting Klereo Care/Premium Control Box Unit

    Adjusting protection current filter pump Figure 34. Klereo Care main unit electricity supply connection The main unit must have a single-phase 220V 50-60Hz power supply. When this is powered up, the circuit-breakers and earth leakage protection switches are toggled. 4.2.2...

  • Page 22: Connecting Klereo Care Inputs/Outputs

    4.3 Connecting Klereo Care inputs/outputs You will find on the next page a wiring diagram synoptic corresponding to the single-phase Klereo Care control box unit. In appendix 3, you will find other set-up (Care/ Premium, single/ three-phase, with booster pump…)
  • Page 23 Klereo Care – Premium installation manual V2...

  • Page 24: Connecting Filtering For Klereo Premium

    "Disconnect the existing wiring going to the power relay contactor A1-A2 terminals (former mechanical clock wiring) Connect the Klereo Premium A1-A2 output to the existing contactor A1-A2 terminals." Figure 36. Example of connection to an existing swimming pool control box unit.

  • Page 25: Connecting Lighting To An Existing Swimming Pool Control Box Unit

    Klereo Care – Premium installation manual V2 4.5 Connecting lighting to an existing swimming pool control box unit The lighting output (K KN) must be connected to the electrical circuit supplying the pool lighting transformer. This output is a normally open contact. The power supply going through should not exceed 8A.

  • Page 26: Connecting The Metering Pumps

    Connecting the cell power supply 4.8.2 Connecting Klereo Salt control box unit power supply Make an electrical connection between R-RN terminals on Klereo Care/Premium control box unit and N-L terminals on Klereo Salt control box unit. Klereo Salt control box unit...

  • Page 27: Connecting The Transformer And The Solenoid Valve

    In case of a Bromine or Chlorine tablets regulation kit. The transformer must be fixed onto the DIN rail of a IP55 control box or into the Klereo Care / Premium control box unit if there is sufficient room. Connect the R-RN terminals to the transformer primary between terminals 2 and 5.

  • Page 28: Connecting Sensors

    Klereo Care – Premium installation manual V2 Figure 43. Connecting the heating output 4.11 Connecting sensors ORP and pH probes, water temperature, pressure and flow switch sensors must be connected to the multi-sensor unit. Transmission button for instant value Terminals...

  • Page 29: Installing The Air Temperature Sensor

    Klereo Care – Premium installation manual V2 IMPORTANT Pressure and water temperature sensors The filter will be clean when it is installed, so the pressure measured then by the system is used as reference (clean filter). The clogging limit (maximum pressure) must be at least 200 mbar above clean filter pressure..

  • Page 30: Inputs: Gh And Ij

    Figure 46. Wiring a power relay 4.14 220V inputs: GH and IJ Klereo Care and Premium control box units are equipped with 2 x 220V inputs for a monitoring of lighting, an auxiliary or filtering outside Klereo. • The different filtering modes (for example with overflow level control box systems) are:...

  • Page 31: Contacts Inputs

    Klereo Care – Premium installation manual V2 Domo terminal boards Domo terminal boards Figure 47. « two-way switch » or « push-button » mode wirings for IJ inputs Remarks: GH/lighting input will monitor the lighting output (K/KN) IJ input will monitor Aux 1output (L/LN).

  • Page 32: Klereo Connect

    To solve this problem, we advise to install power line communication plugs (Ref. KL60-CPL2, optional). The best in that case is to install the Klereo connect box as close as possible to the Klereo control box unit, including next to it in the technical room.

  • Page 33: Communication Problem Between The Klereo Pad And The Klereo Control Box Unit

    5.2.2 Communication problem between the Klereo Pad and the Klereo control box unit In this case, unscrew the antenna fixed onto the Klereo control box unit and connect the cable of the remote antenna (ref. KL10-AD15, optional) Figure 55. Remote control antenna, Ref. KL10-AD15...

  • Page 34: Start Up

    6. START UP Klereo USB key Your Klereo specialist has a USB key to access the professional menu. Connect the key during installation /set-up as well as when conducting maintenance actions. When the USB key is disconnected, you have only access to the end-user menus, the professional menus are not available.
  • Page 35 Klereo Pad or by pressing the corresponding key button on the Klereo control box unit more than 2 seconds (until the indicator light changes color from red).
  • Page 36 Klereo Care – Premium installation manual V2 Once the display unit starts up, it displays the following home screen: 1. Date and time. Alternately with “messages” if any. Battery charge status 3. pH, water and air temperature values 4. Display area for status functions*.

  • Page 37: Main Menu

    Klereo Care – Premium installation manual V2 6.3 Main menu Press screen selection key to access main menu, use the browse key to select the required sub-menu and press OK to enter. The main menu is used to access the pool functions and...

  • Page 38: Calibration And Checking Of Probes (If Installed)

    / wasting is finished, set up again the filtering operational mode as it does not come back to its initial mode. For more information refer to Klereo user manual §6.5. The filter pump electrical power value will serve to calculate the electrical consumption.

  • Page 39: Checking Orp Probe (If Installed)

    Rinse and insert the probe into the probe holder, then place it in its base if OK. After this operation, check the value shown on the Klereo unit when the probe is dipped in water (between pH7 and pH8) Press a...

  • Page 40: Regulations Tests

    6.7 Regulations tests Now that all parts of the Klereo system are in place, the various regulations must be checked. Press the buttons on the control box unit to check operation of filtering, lighting and auxiliary 1 and 2.

  • Page 41: Disinfectant Set-Up

    “Klereo Salt Chlor 1” is a basic Salt Chlorinator no more available for sale. If you have bought a Klereo Salt, select as disinfectant « Klereo Salt Chlor 2 ». Select then the Klereo Salt Chlorinator model (KL50-S15, KL50-S20, KL50-S25…) by pressing the screen selection key below «Model».

  • Page 42: Sensors Values

    Klereo Sensors Values are transmitted by the Klereo control box unit at regular intervals or every time you press the instantaneous transmission button. The pH and ORP values shown are only used for regulation after a filtration period of 10 min (pH) and 30 to 90 min (ORP).

  • Page 43: Disinfectant Target Value

    Klereo Care – Premium installation manual V2 Select the regulated mode (recommended mode by klereo), then go to the menu “target” by pressing » to enter the pH target value as well as the Min and Max limits. Figure 64.

  • Page 44: C) Orp Security

    Modifying the regulated mode c) ORP security There is an adjustable ORP security when using a Salt Chlorinator treatment (whatever the model, Klereo or another brand) in order to stop Chlorine production when reaching a maximum value. The default value is 800mV.

  • Page 45: Programming The Frost Function

    Once installed in a location protected from the sun, the air temperature must be set up as follows: Remark: in case the air temperature sensor is no more radio matched with the Klereo control box unit (no communication between them) the following adjustments are not possible.

  • Page 46: Equipments Set-Up

    If you select this option, you will have to set up the threshold values (Refer to § 6.12: Programming frost function). Klereo filtering: this function is selected when delivered. Indeed, it is Klereo default piloting filtering. However filtering can also be controlled by an external device : in that case disable...

  • Page 47: Heating

    IMPORTANT If Klereo filtering is disabled, water treatment will only be ON when: The Klereo control box detects a water flow: in that case, set-up the flow switch in “treatment validation” There is 220V detected on input I-J (Klereo control box unit power supply input).

  • Page 48: Adjusting Target Value For Heating

    This is default selected when delivered. • None: mark this option when there is no heating equipment. The « heating mode » menu will only appear when Klereo Therm has been selected. With this menu, there are extra possibilities to parameter the heating pump.
  • Page 49 To match the Klereo Therm heating pump, proceed as follows: 1- Press the orange matching key button (as shown on picture 73) on the Klereo Therm circuit board till LED 2 flashes rapidly then stops and after LED 1 flashes rapidly.

  • Page 50: Sensors Set-Up

    Default selected when delivered. This two treatment priorities are inactive when Klereo is in “Eco mode”. Boost treat. priority: this option starts immediately the disinfectant boost treatment during 24h and therefore forces filtering.

  • Page 51: Inputs Set-Up

    • Authorize filtering: authorize filtering in case of 220V input (useful when using automatic valve for backwash system) • Slave filtering: to use Klereo control box unit in slave mode. In this setting-up, filtering is ON when there is 220V input and OFF on the contrary.

  • Page 52: Programming Modes For Filtering, Lighting And Auxiliaries Outputs

    Klereo Care – Premium installation manual V2 6.18 Programming modes for filtering, lighting and auxiliaries outputs: Function Programming Operating mode mode Regulated Filtering regulated according to water temperature Time slots Operation programmed in time slots Manual Always ON or OFF...

  • Page 53: Selecting The Control Modes

    Klereo Care – Premium installation manual V2 Browse: Definition Used to confirm the change of programming mode and perform the following actions: Stop in manual mode, modify in time slot or timer mode and info in Regulated mode On in manual mode and On/Off in timer mode Browsing to choose programming mode.

  • Page 54: Appendix 1: Menu Map

    Klereo Care – Premium installation manual V2 APPENDIX 1: MENU MAP List of messages if Air temp. Water multi. pH Multi ORP Multi Pressure Multi Re-synchronization Sensors validation Regulated Filtering mode Time slots Manual Fill in the value Pool volume...
  • Page 55 Klereo Care – Premium installation manual V2 Other Salt Chlor. Active Oxygen Bromine None pH correcting agent pH minus pH plus None Select Disinf. probe ORP Multi Select Ph probe pH Multi Select Water temp Water Multi pH concentration Treat. concentration Boost treat.
  • Page 56 Klereo Care – Premium installation manual V2 Listing Inputs status Listing System status Listing Pool info Clear messages Messages List of messages Set the date Set the time Language Interface Privilege keylock Display settings Backlight Contrast Set-up ON/OFF sensors pH tank Treatment tank Air temp.
  • Page 57 Klereo Care – Premium installation manual V2 Force filt. Prevent filt Authorize Filt Slave Filt Priorities / securities Pump protection Frost control pH priority Disinfectant priority Boost treat. priority Heating priority Radio matching Internet box Heat pump / Salt Chl.
  • Page 58 Klereo Care – Premium installation manual V2 APPENDIX 2: Active Chlorine according to free Chlorine and pH levels (water at 25° c without stabilizer)
  • Page 59 Klereo Care – Premium installation manual V2 APPENDIX 3: wiring diagram synoptic. Connect each element to the right terminals as indicated on the synoptic and turn on the power supply.
  • Page 60 Klereo Care – Premium installation manual V2...
  • Page 61 Klereo Care – Premium installation manual V2...
  • Page 62 Klereo Care – Premium installation manual V2...
  • Page 63 Klereo Care – Premium installation manual V2...
  • Page 64 Klereo Care – Premium installation manual V2...
  • Page 65 Klereo Care – Premium installation manual V2...
  • Page 66 Klereo Care – Premium installation manual V2 5 rue du Chant des Oiseaux 78360 MONTESSON Email: contact@klereo.com Tel.: +33 130 15 78 14...
