Medameda
design Alberto e Francesco Meda
Istruzioni per l'installazione della rubinetteria
I
Instructions for the installation of the faucets
GB
Instructions pour l'installation de la robinetterie
F
Montageanleitungen zur installation der armaturen
D
Instrucciones para la instalacion de la griferia
E
ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ
RU
Instrukcje instalacji armatury
PL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Medameda ZMM5506 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zuchetti Medameda ZMM5506

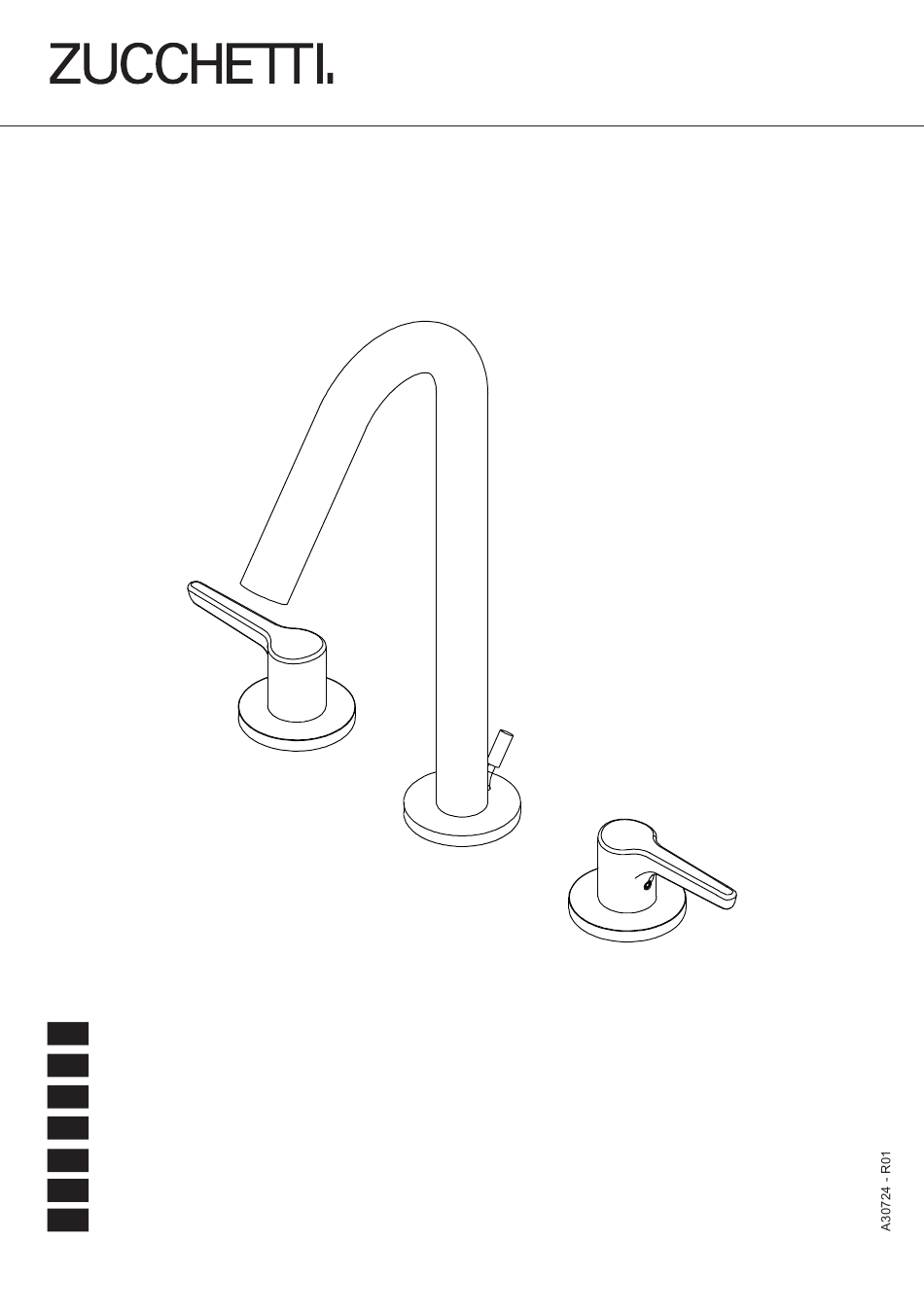

  • Page 1 Medameda design Alberto e Francesco Meda Istruzioni per l’installazione della rubinetteria Instructions for the installation of the faucets Instructions pour l’installation de la robinetterie Montageanleitungen zur installation der armaturen Instrucciones para la instalacion de la griferia ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ Instrukcje instalacji armatury...
  • Page 3 Index Medameda collection ZMM5506-ZMM5507 ZMM5503-ZMM5504 ZMM5765 ZMM5766 Z92240 Z92241 ZMM5695 ZMM5738 ZMM5729...
  • Page 4: Installazione - Installation

    Installazione - Installation ZMM5506-ZMM5507-ZMM5503-ZMM5504 Utensili necessari - Necessary tools CH.2 CH.12 ≤25 mm >25 mm CH.12 CH.12...
  • Page 6 CH.2 - FLESSIBILI DI ALIMENTAZIONE G 1/2” F NON INCLUSI - FLEXIBLE HOSE G 1/2” F NOT INCLUDED...
  • Page 7 Installazione - Installation ZMM5765-ZMM5766-Z92240-Z92241 Utensili necessari - Necessary tools CH.15 TEFLON CH.17 CH.8 CH.2 CH.3 CH.17...
  • Page 8 X+9 mm X-25 mm CH.3...
  • Page 9 CH.15 / CH.8 CH.2 CH.2...
  • Page 10 Installazione - Installation ZMM5695-ZMM5738-ZMM5729 Utensili necessari - Necessary tools CH.17 CH.3 CH.2 X+9 mm CH.17...
  • Page 11 X-25 mm CH.3 CH.2 CH.2...
  • Page 12 Sostituzione vitone - Headwork replacement ZMM5765-ZMM5766 CH.2 CH.17 CH.3...
  • Page 13 Sostituzione vitone - Headwork replacement ZMM5506-ZMM5707-ZMM5503-ZMM5504 CH.2 CH.20...
  • Page 14 Pulizia e manutenzione / Cleaning and maintenance REINIGUNG Zur Reinigung all unserer Armaturen in sämtlichen verchromten, vergoldeten, lackierten Ausführungen oder Spezialoberflächenveredlungen dürfen auf keinen Fall korrodierende, scheuernde oder alkoholhaltige Mittel verwendet werden, die die Oberflächen beschädigen können. Es empfiehlt sich, weiche Lappen oder mit klarem Wasser getränkte Schwämme zu verwenden.
  • Page 15 CONDIZIONI DI UTILIZZO - PULIZIA Pressione minima: 1 bar Pressione massima: 5 bar Pressione consigliata: 2-3 bar Differenza di pressione acqua calda/fredda: 1 bar max. Temperatura massima: 80°C Temperatura consigliata: 60-65°C La rubinetteria Zucchetti può essere impiegata con scaldabagni elettrici ad accumulo, a gas istantanei, impianti centralizzati, caldaie murali a gas miste e teleriscaldamento.
  • Page 16 Zucchetti Rubinetteria S.p.A. Via Molini di Resiga, 29 - 28024 Gozzano (No) - Italy - Tel. +39 0322 954700 - Fax +39 0322 954823 - www.zucchettikos.it...
