IQ Power Tools iQ426 HEPA CE Operator's Manual

Cyclonic dust extractor with hepa filtration
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

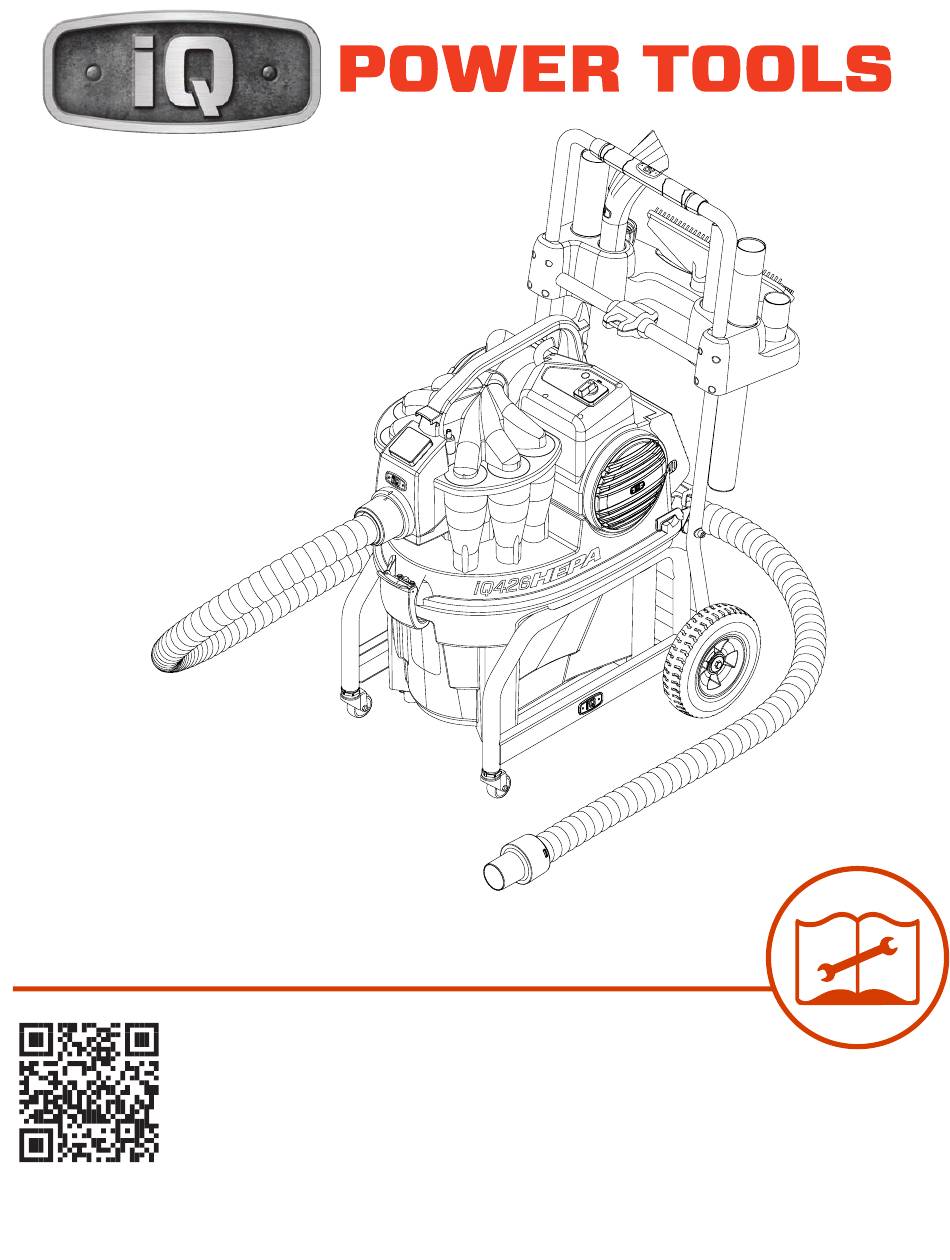

iQ426HEPA CE
Operator's Manual
Use QR Code to download the iQ426HEPA CE Operator's Manual in your
language. Please read the operator's manual carefully and make sure you
understand the instructions before using the machine.
For light industrial and indoor use only.

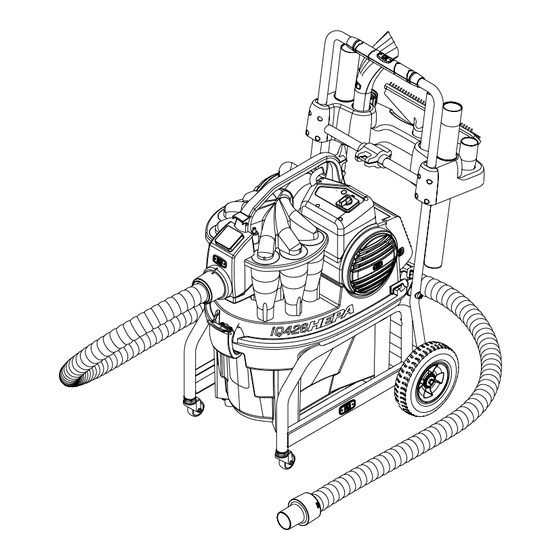

Cyclonic Dust Extractor
With HEPA Filtration
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iQ426 HEPA CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IQ Power Tools iQ426 HEPA CE

Summary of Contents for IQ Power Tools iQ426 HEPA CE

  • Page 1 ® iQ426HEPA CE Cyclonic Dust Extractor With HEPA Filtration Operator’s Manual Use QR Code to download the iQ426HEPA CE Operator’s Manual in your language. Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. For light industrial and indoor use only.
  • Page 2 DECLARATION We declare in sole responsibility that the equipment ,Cyclonic Dust Extractor with Hepa Filtration (iQ426HEPA CE) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC EMC Directive: 2014/30/EU Low Voltage Directive: 2014/35/EU EN 60335-2-69:2012 Year of affixing CE marking: 2020 Signature: Name, Surname: Paul Guth Position/ Title: President of Product Development...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Topic Section Safety Machine Labels Introduction What Is What? Assembly Operation Filter Maintenance Dust Disposal Power Socket Operation Cart Transport and Storage Troubleshooting Technical Data Warranty Policy 888-274-7744 iQ426HEPA CE www.iqpowertools.com Operator’s Manual...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS ORIGINAL INSTRUCTIONS j) Keep hair, loose clothing, fingers and all parts of your body away from openings and moving parts. k) Turn off all controls before unplugging. Important Safety Rules l) Use extra care when cleaning on stairs. m) Do not use to pick up flammable or combustible When using an electrical appliance, basic precautions liquids, such as gasoline, or in area where they may...

  • Page 5: Safety

    SAFETY General WARNING! POWER TOOLS AND CUTTING Do not use the machine unless you are able to call MACHINES HAVE THE for help in the event of an accident. Always have a POTENTIAL TO CREATE SPARKS. ALWAYS KEEP FIRE EXTINGUISHERS HANDY. first aid kit nearby.
  • Page 6 SAFETY GENERAL SAFETY PRECAUTIONS PERSONAL PROTECTIVE EQUIPMENT This section describes basic safety directions for using You must use approved personal protective equipment the machine. This information is never a substitute for whenever you use the machine. Personal protective professional skills and experience. equipment cannot eliminate the risk of injury but it will •...
  • Page 7 SAFETY anything that may reduce airflow. Ensure the power switch is in the OFF- • Keep hair, loose clothing, fingers and all parts position before connecting the machine to of body away from openings and moving parts. a power source. •...
  • Page 8 KEY SYMBOLS & SAFETY RULES Explanation of Warning Levels Dust Class M Filter Rating The warnings are graded in three levels. Dust class M machines shall be designed and constructed in such a way that they can be easily cleaned, without impairing their safety. Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

  • Page 9: Introduction

    Power Tools’ products. Safe operation of Email: customer.service@iqpowertools.com this product requires the operator to read this manual carefully. Ask your dealer or iQ Power Tools should you It is our wish that you will be satisfied with your product need more information.

  • Page 10: What Is What

    WHAT IS WHAT? Frontside 1 - Vacuum Hose 6 - Tub Latch 11. - Accessory Rack 2 - Cart 7 - Vacuum Hose Connection 12. -Release Lever 13 - On/Off Switch 3 - Dust Collection Tub 8 - Electric Tool Power Outlet 4 - Visible Window 9 - Vacuum Housing Handle 14 - Vacuum Motor...
  • Page 11 WHAT IS WHAT? Backside 15 - Cart Handle 19 - Cart 16 - Cyclones 20 - Cart Wheel 17 - Filter Spin Knob 21 - Cart Handle Latch Release 18 - Cart Caster 22 - Accessory Rack 23 - Hose End Holder 888-274-7744 iQ426HEPA CE www.iqpowertools.com...
  • Page 12 WHAT IS WHAT? Side 24 - Cart Handle 28 - Cart 25 - Cord Wrap Hook 29 - Filter Spin Knob 26 - Electrical Tool Power Outlet 30 - Accessory Rack 27 - Tub Latch 31 - Vacuum Housing Lift Hook 32 - Vacuum Inlet iQ426HEPA CE 888-274-7744...
  • Page 13 WHAT IS WHAT? Cart Control Panel HEPA 33 - HEPA Filter Cover 37 - On/Off/Auto Switch 34 - Back Tub Latch 38 - OFF 35 - Current Overload Switch 39 - ON 36 - HEPA Filter Status Light 40 - Auto ON with Electric Tool Outlet 888-274-7744 iQ426HEPA CE www.iqpowertools.com...

  • Page 14: Assembly

    ASSEMBLY TOOLS REQUIRED FOR ASSEMBLY With washer already on the bolt, feed the bolt through the spacer. Put a second washer on the other side of the bolt. (A) 13mm Socket Wrench Assembling your iQ426HEPA™ UNBOXING AND ASSEMBLING Open the top of the box. Remove top layer of packaging with parts and set aside.
  • Page 15 ASSEMBLY Assembling your Accessory Rack UNBOXING AND ASSEMBLING Open the top of the box. Remove top layer of packaging with parts and set aside. Note: some accessories may be in the packaging. Remove cart and dust extractor and place on a flat horizontal and stable surface (preferably a workbench) to prevent the equipment from tipping or sliding during assembly.

  • Page 16: Operation

    OPERATION Before starting AUTOMATIC START FUNCTION When you use the dust extractor together with WARNING! PLEASE READ THE OPERATOR’S another power tool, there is an electrical outlet on the MANUAL CAREFULLY AND MAKE dust extractor. Connect the power tool to this outlet. SURE YOU UNDERSTAND THE INSTRUCTIONS BEFORE USING THE MACHINE When you start the power tool, the dust extractor will...
  • Page 17 OPERATION WARNING: Improper connection of the equipment- WARNING! NEVER CLEAN MOTOR AND grounding conductor can result in a risk of electric ELECTRIC PARTS WITH WATER. shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded.

  • Page 18: Filter Maintenance

    FILTER MAINTENANCE iQ426HEPA™ Dual Filter System Put in new filter and cover with filter cover. The cover should be attached at the same position as in image The dual filter system of the iQ426HEPA uses both an below. Replace the 5 screws. NOTE: Durabond filter iQ Durabond filter and a HEPA filter.

  • Page 19: Dust Disposal

    DUST DISPOSAL Disposal Press the sides of the HEPA cover inward and lift up cover. Obey the local recycling requirements and applicable regulations. When the product no longer is being used, discard it at a recycling location. DUST DISPOSAL Each iQ426HEPA will come out of the box with 3 bags. The bags come with an attached tie to ensure closure when disposing of dust.

  • Page 20: Power Socket Operation

    POWER SOCKET OPERATION POWER SOCKET OPERATION Check and ensure that the electric tool is switched off before plugging its power cord into the dust NOTE: The electrical socket on the dust extractor is to extractor’s electrical socket. be used only for powering electric tools directly from the dust extractor.

  • Page 21: Cart

    CART iQ426HEPA™ Cart System The cart for the iQ426HEPA is more than just a cart. It assists in emptying dust from the dust tub. There are 6 easy steps to remove the dust extractor dust collection tub from the cart. For a visual of how to remove cart, visit iqpowertools.com/vacuum dance.
  • Page 22 TRANSPORTATION AND STORAGE Transportation NOTE: The vacuum housing latch must attach to the dust extractor hook for the next steps to work properly. Use ramps or winches to lift the dust extractor to make sure that movements are safe. Get aid if you are not sure about how to lift heavy equipment.

  • Page 23: Troubleshooting

    TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS. MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW. FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT IQ POWER TOOLS AT 1-(888)274-7744. TROUBLE! MOTOR WILL NOT START WHAT’S WRONG? WHAT TO DO 1.

  • Page 24: Technical Data

    TECHNICAL DATA VACUUM MOTOR IQ426HEPA, 220-240V POWER, A(W) 8.5/3200 VOLTAGE/FREQUENT/NCY V/HZ 220-240V, 50/60HZ AIRFLOW, CFM (dm^ /s) (MAX) 190/90 VACUUM LIFT, H20 INCHES (KPA) (MAX) 100/25 MAIN HOSE LENGTH, FT (M) 14/4.26 MAIN HOSE DIAMETER IN. (MM) 2.0/50 INLET DIAMETER IN. (MM) 2.0/50 FILTER DURABOND CARTRIDGE...
  • Page 25 WIRING DIAGRAM Vacuum Motor Field White Field White White White Black Black Black Blue SK_N E479892 SK_L DQGT 82426-2019 Brown Black LINE Receptacle LOAD Black Overload Instructio n Over Load Indicator (Red) 230VAC 230V AC/50H z Blue White Black Brown 13.1 888-274-7744 iQ426HEPA CE...
  • Page 26 WARRANTY New iQ426HEPA™ Cyclonic Dust Extractor with Parts and labor needed to maintain products, HEPA Filtration, sold by iQ Power Tools or an iQ and the replacement of components due to normal authorized dealer is warranted to be free from wear and tear, are the purchaser’s responsibility...
  • Page 27 NOTES 15.1 888-274-7744 iQ426HEPA CE www.iqpowertools.com Operator’s Manual...
  • Page 28 888-274-7744 | WWW.IQPOWERTOOLS.COM...
