iQ426HEPA
Operator's Manual
Use QR Code to download the iQ426HEPA Operator's Manual in your language.
Please read the operator's manual carefully and make sure you understand the
instructions before using the machine.
For light industrial and indoor use only.

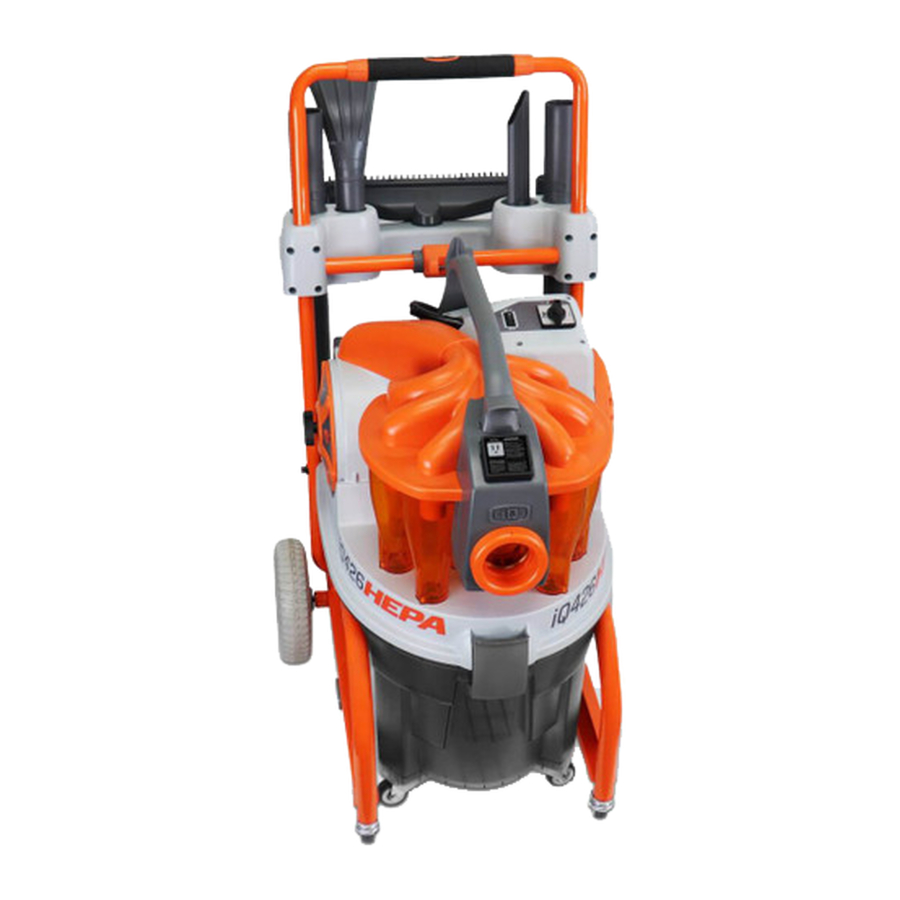

Cyclonic Dust Extractor
With HEPA Filtration
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iQ426HEPA and is the answer not in the manual?

Questions and answers

Related Manuals for IQ Power Tools iQ426HEPA

Summary of Contents for IQ Power Tools iQ426HEPA

  • Page 1 Cyclonic Dust Extractor With HEPA Filtration Operator’s Manual Use QR Code to download the iQ426HEPA Operator’s Manual in your language. Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. For light industrial and indoor use only.
  • Page 2 M-iQ426HEPA-001-0M112019...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Topic Section Safety Machine Labels Introduction What Is What? Assembly Operation Filter Maintenance Dust Disposal Cart Transport and Storage Troubleshooting Technical Data Warranty Policy 888-274-7744 iQ426HEPA www.iqpowertools.com Operator’s Manual...
  • Page 4 6) Intended use for dry application only. The machine k) Turn off all controls before unplugging. is designed to vacuum dry, non-combustible dust. Do not use for other tasks. l) Use extra care when cleaning on stairs. SAVE THESE INSTRUCTIONS iQ426HEPA 888-274-7744 Operator’s Manual www.iqpowertools.com...

  • Page 5: Safety

    More than , A Not more than, A 120 V (AWG) 0.82 (18) 1.3 (16) 1.3 (16) 2.1 (14) 0.82 (18) 1.3 (16) 2.1 (14) 3.3 (12) 0.82 (18) 1.3 (16) 2.1 (14) 3.3 (12) 888-274-7744 iQ426HEPA www.iqpowertools.com Operator’s Manual...
  • Page 6 • Do not overreach. Keep proper footing and picking up liquids. balance at all times. • Do not pick up any type of liquids. • Never stand on the machine. • Do not allow a build-up of dust, hair and iQ426HEPA 888-274-7744 Operator’s Manual www.iqpowertools.com...
  • Page 7 EXTENSION CABLES THAT ARE TOO LONG AND/OR HAVE service workshop for repair. A GAUGE THAT IS TOO SMALL, REDUCE POWER TO THE • Prevent unintentional starting of the motor. MOTOR UNDER LOAD, RESULTING IN REDUCED OUTPUT OR MALFUNCTIONS. 888-274-7744 iQ426HEPA www.iqpowertools.com Operator’s Manual...
  • Page 8 Always wear protective goggles and/or a visor. - ALTERNATING CURRENT symbol High voltage. Risk of an electric shock. - DIRECT CURRENT symbol Turn off machine and unplug before transportation. - READ OPERATOR’S MANUAL symbol CSA approved. 248014 iQ426HEPA 888-274-7744 Operator’s Manual www.iqpowertools.com...

  • Page 9: Introduction

    Power Tools’ products. Safe operation of Email: customer.service@iqpowertools.com this product requires the operator to read this manual carefully. Ask your dealer or iQ Power Tools should you It is our wish that you will be satisfied with your product need more information.

  • Page 10: What Is What

    3 - Dust Collection Tub 8 - Electric Tool Power Outlet 4 - Visible Window 9 - Vacuum Housing Handle 14 - Vacuum Motor 5 - Cyclones 10 - Vacuum Housing Lift Latch 15 - Release Lever iQ426HEPA 888-274-7744 Operator’s Manual www.iqpowertools.com...
  • Page 11 16 - Cart Handle 20 - Cart 17 - Cyclones 21 - Cart Wheel 18 - Filter Spin Knob 22 - Cart Handle Latch Release 19 - Cart Caster 23 - Accessory Rack 24 - Hose End Holder 888-274-7744 iQ426HEPA www.iqpowertools.com Operator’s Manual...
  • Page 12 29 - Cart 26 - Cord Wrap Hook 30 - Filter Spin Knob 27 - Electrical Tool Power Outlet 31 - Accessory Rack 28 - Tub Latch 32 - Vacuum Housing Lift Hook 33 - Vacuum Inlet iQ426HEPA 888-274-7744 Operator’s Manual www.iqpowertools.com...
  • Page 13 35 - Back Tub Latch 39 - OFF 36 - Current Overload Switch 40 - ON 37 - HEPA Filter Status Light 41 - Auto ON with Electric Tool Outlet 42 - Power Supply Selector 888-274-7744 iQ426HEPA www.iqpowertools.com Operator’s Manual...

  • Page 14: Assembly

    Put a second washer on the other side of the bolt. (A) 13mm Socket Wrench Assembling your iQ426HEPA™ UNBOXING AND ASSEMBLING Open the top of the box. Remove top layer of packaging with parts and set aside. Remove cart...
  • Page 15 Hold rack on the outside of the cart. While holding rack, place the end cap on the front side. Use 4 screws to tighten rack. Repeat for the other side. Included Accessories: Narrow Nozzle Adapter Brush Nozzle Medium Nozzle Tube (2) 888-274-7744 iQ426HEPA www.iqpowertools.com Operator’s Manual...

  • Page 16: Operation

    • Clean the filters and the dust extractor in RISK OF INJURY – WHEN APPLIANCE CONNECTED TO applicable area. THIS RECEPTACLE IS TURNED ON, THE IQ426HEPA WILL AUTOMATICALLY TURN ON. • Do not use water on electrical components. • Do not clean the dust extractor with high pressure (air or water).
  • Page 17 ENVIRONMENT FOR THE OPERATOR AND OTHER PERSONS IN THE VICINITY. WARNING! WHILE DOING MAINTENANCE ON THIS MACHINE THERE IS A POTENTIAL EXPOSURE TO DUST WHICH MAY CONTAIN HAZARDOUS MATERIAL. PROTECT YOURSELF BY WEARING AN APPROPRIATE BREATHING MASK. 888-274-7744 iQ426HEPA www.iqpowertools.com Operator’s Manual...

  • Page 18: Filter Maintenance

    Put in new filter and cover with filter cover. Note: the cover should be attached at the same position as in image below. Replace the 5 screws. The dual filter system of the iQ426HEPA uses both an iQ Durabond filter and a HEPA filter. CLEANING THE DURABOND FILTER Spin filter 3-5 times before emptying tub.

  • Page 19: Dust Disposal

    When the product no longer is being used, discard it at a recycling location. DUST DISPOSAL Each iQ426HEPA will come out of the box with 3 bags. The bags come with an attached tie to ensure closure when disposing of dust. Replacement bags are available to purchase with your dealer or at iqpowertools.com.

  • Page 20: Cart

    Cart System The cart for the iQ426HEPA is more than just a cart. It assists in emptying dust from the dust tub. There are 6 easy steps to remove the dust extractor dust collection tub from the cart. For a visual of how to remove cart, visit iqpowertools.com/vacuum dance.
  • Page 21 • Store all equipment in an locked area, so that it is out of reach of children and unauthorized persons. Step 6: Slide the dust tub away from the cart. 10.1 888-274-7744 iQ426HEPA www.iqpowertools.com Operator’s Manual...

  • Page 22: Troubleshooting

    TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS. MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW. FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT IQ POWER TOOLS AT 1-(888)274-7744. TROUBLE! MOTOR WILL NOT START WHAT’S WRONG? WHAT TO DO 1.

  • Page 23: Technical Data

    TECHNICAL DATA VACUUM MOTOR IQ426HEPA, 120V POWER, A(W) 15/1800 VOLTAGE/FREQUENT/NCY V/HZ 120V/60HZ AIRFLOW, CFM (dm^ /s) (MAX) 190/90 VACUUM LIFT, H20 INCHES (KPA) (MAX) 100/25 MAIN HOSE LENGTH, FT (M) 14/4.26 MAIN HOSE DIAMETER IN. (MM) 2.0/50 INLET DIAMETER IN. (MM) 2.0/50...
  • Page 24 WIRING DIAGRAM Black White Black White Black LOAD LINE White SK_N SK_L Black Receptacle Black Overload Instruction J4-2 J4-1 120VAC Over Load Indicator 120VAC / 60Hz Incoming Current Selector Rocker Switch 12.2 iQ426HEPA 888-274-7744 Operator’s Manual www.iqpowertools.com...
  • Page 25 WARRANTY New iQ426HEPA™ Cyclonic Dust Extractor with Parts and labor needed to maintain products, HEPA Filtration, sold by iQ Power Tools or an iQ and the replacement of components due to normal authorized dealer is warranted to be free from wear and tear, are the purchaser’s responsibility...
  • Page 26 NOTES iQ426HEPA 888-274-7744 Operator’s Manual www.iqpowertools.com...
  • Page 27 888-274-7744 | WWW.IQPOWERTOOLS.COM...
