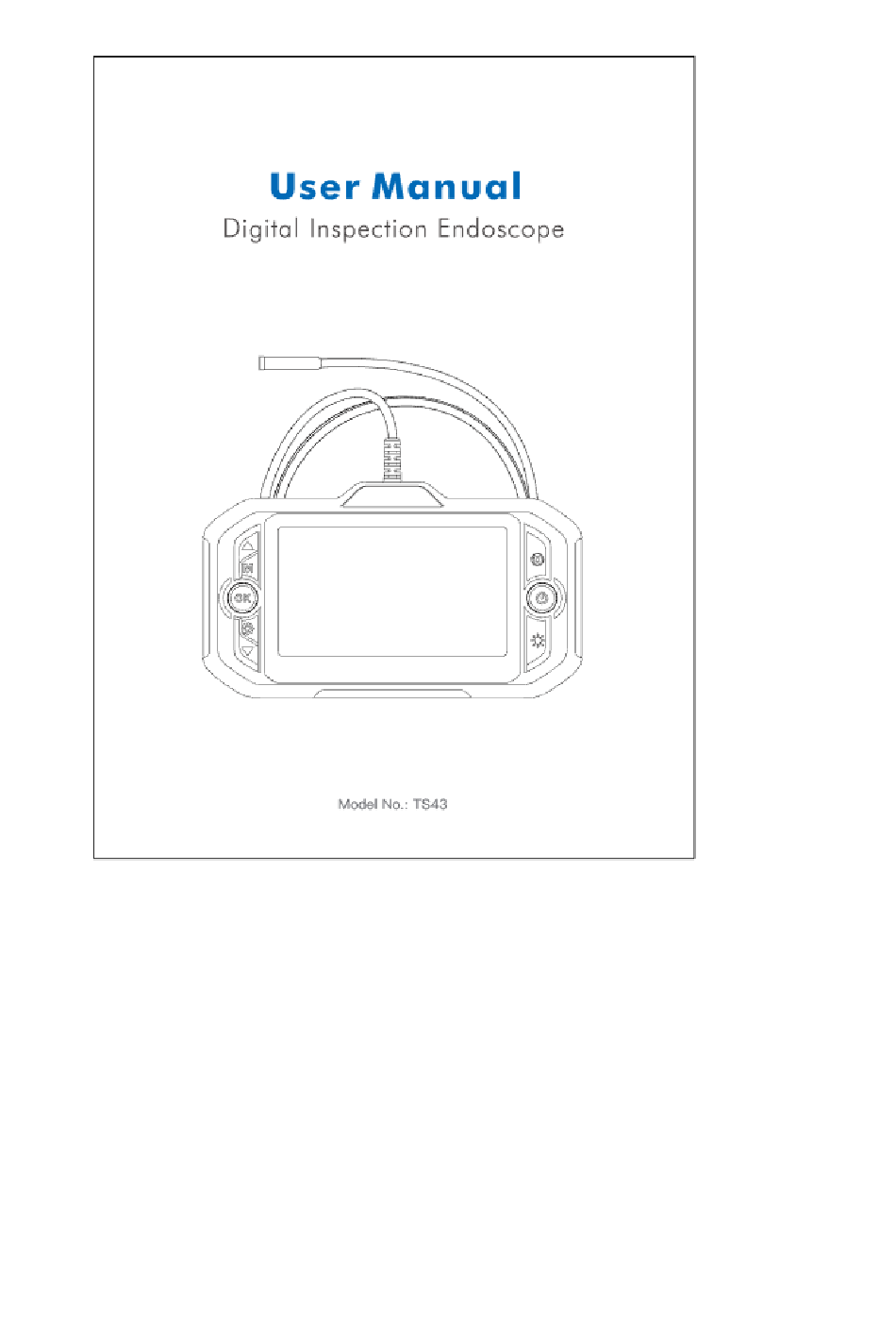

- Page 1 Product Manual Digital Inspection Endoscope Model No.: TS43...
- Page 2 Product Manual TS43 is a high-performance industrial endoscope with a 4.3-inch high-definition color screen. Photo and video recording functions are supported, and saved to a TF memory card (Micro-SD card). This product is equipped with an LED ring light and small-diameter HD camera. The camera uses a high-sensitivity chip to get the best view in the darkest places.
-
Page 3: Battery Description
combustion engine, please ensure that temperature inside the engine has cooled. * This product is not suitable for people with limited physical, sensory or mental capabilities. * Do NOT allow children to touch or operate this device. In case the device is damaged, Do NOT disassemble it by yourself. Please contact the seller or the agent where you bought it to get repair service. - Page 4 ①Camera probe ②Up selection button: Zoom Down selection button: Rotate ③Mode switch button: switch between three function modes: Photo taking, video recording and playback. ④Enter button: Confirm selection/freeze screen ⑤Settings button: enter/exit settings menu. ⑥Snap button: Photo taking/Start video recording/End video recording/ Press and hold the button for a few seconds to switch between the front-view camera and side-view camera.
- Page 5 Functions ⑨Charging port ⑩Reset button ⑪ TF card slot (Micro SD) Instructions Press & hold the Power button for a few second to turn ON/OFF device. Charge this device.
- Page 6 Insert a TF card Insert TF card: *Power off device first before insert TF card (Micro SD). *Make sure the direction and the front and back sides are correct when inserting the TF card. *Do not use excessive force when inserting or removing the TF card to prevent damage to the card slot structure.
- Page 7 Language Settings The default language is English, and the system supports English, Simplified Chinese, German, French, Spanish, Italian, Russian, Japanese, Traditional Chinese, Korean and Portuguese. Setting path : 1、Press the "Settings" button to enter the menu. 2、Select language setting. 3、Press the up and down button to select the desired language. 4、Press the“OK”button to save changes.
- Page 8 Copy photo and video files to computer Card reader Micro USB data cable You can sue a TP card reader to copy data directly or use a Micro USB cable to connect to a computer for copying. Specifications Screen Screen: 4.3-inch HD Display Screen resolution(Pixels): 480x272 Support probe resolution(Pixels): 1.0 Megapixel HD Snapshot resolution(Pixel): 1920x1080，...
- Page 9 Camera Diameter: 7.0mm or 8.0mm optional Resolution: 1.0 Megapixel HD Viewing angle: 75° Depth of Field: Front camera: 30mm—80mm; Side camera: 20-60mm Light Source: 6 adjustable high-intensity LEDs Others Operating Temperature: 32°F to 113°F (0°C to 45°C) Power Source: 2000 mAh Lithium Battery Max battery life: 3.5 hours Charging time: 4 hours Packaging...
