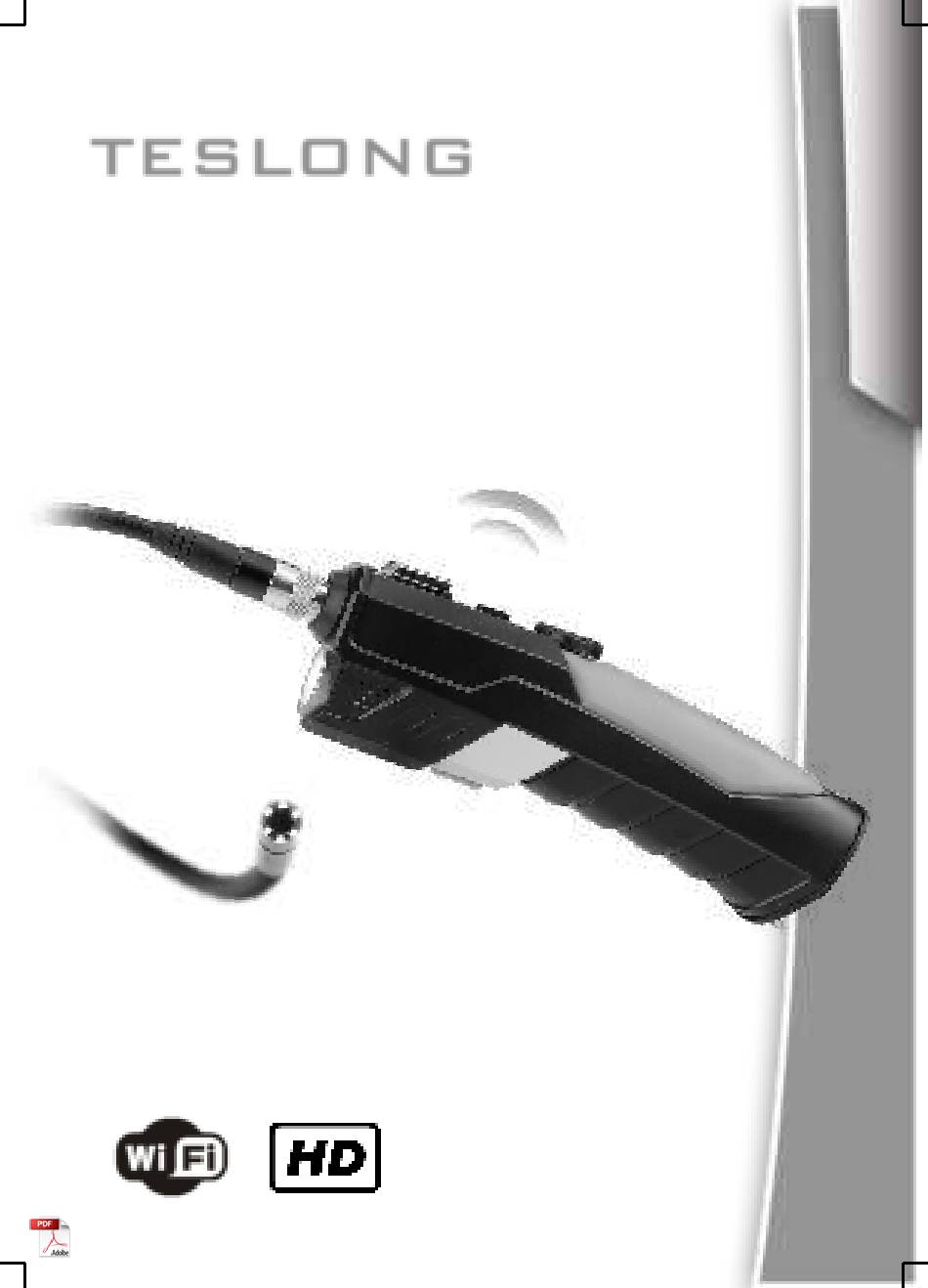

- Page 1 TESLONG Wi-Fi Endoscope Camera User Manual...
-
Page 3: Table Of Contents
Contents General Information Manual Notes Storage and transport Information on disposal Overview Description Applications Safety Technical Data How to use Product information Prepare to use PC users iPhone and iPad users Android smartphone users Other platform users Other information Wi-Fi Bridge function Troubleshooting... -
Page 4: General Information
General Information Manual: This operation manual allows you to work safely with the Wi-Fi Endoscope. Please keep this manual for your Information. Liability is void for any damage caused by not following this manual. Notes: Warning! Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. -
Page 5: Overview
Description This new Wi-Fi Endoscope camera is a portable, hand-held, multifunctional inspection camera system featuring an ultra-small size of 8.5mm diameter camera, a high quality digital sensor offering crystal clear output. The powerful wireless module provides a stable Wi-Fi connection. Users can view the videos on iPhones, iPads, Android devices and PCs, as well as capturing images (JPG)and recording 720p HD videos (AVI) with the bundled application. -
Page 6: Technical Data
Technical Data Description Data Network Standard IEEE 802.11 b/g/n Antenna Built-in IPEX antenna Operating Frequency 2.4GHZ Data Rate 802.11 b/g/n: up to 150Mbps Camera Diameter 8.5mm Shaft Diameter 7.0 mm Image Sensor 2.0 Megapixel CMOS Video Resolution 800x600,1024x768,1280x720 Viewing angle 60°... -
Page 7: How To Use
Product Information 1.Phone Holder 2.LED Adjust wheel 3.Battery compartment 4.Camera 5.Flash light 6.Flash light On/Off 7.String 8.Probe connector 9.Support for Phone holder 10.Reset button (press and hold for 10 seconds to reset device) 11.Power On/Off (LED Indicator: the LED will shine BLUE when the device is On, or shine RED when the battery voltage is low) -
Page 8: Prepare To Use
Prepare to use Open the battery compartment Insert 4 AA batteries Please ensure correct polarity Please use Alkaline or rechar- geable Ni-MH battery for long working time. Press the Power On/Off button to turn on the device ... -
Page 9: Pc Users
PC users Search the Wi-Fi signal on your PC SSID is “ WiFi_Endoscope” Connect your PC to the Wi-Fi wireless network Endoscope. Password is 00000000 Copy the software: ”Smart Camera.exe” from the bundled CD to your PC and run. ... -
Page 10: Iphone And Ipad Users
iPhone and iPad users Search” WiFi Endoscope” on iTunes Store and install the app. Enter “Settings”-”Wi-Fi settings” and search the SSID:”WiFi_Endoscope”, connect to it with password:00000000 Run the app and click on the play button, then you can see the live video. Click here to see the video Captured... -
Page 11: Android Smartphone Users
Android smartphone users Search ”WiFi Endoscope” On Google Play Store and install the app. Enter “Settings”-”Wi-Fi settings” and search the SSID ”WiFi_Endoscope”, connect to it with password:00000000 Run the app and select” Wifi Endoscope”, then you can see the live video in Preview area. -
Page 12: Other Platform Users
Other platform Users with devices running other platforms can watch the video with an Internet browser (HTML5 support required). After connected to this Wi-Fi Endoscope, open the Internet Browser and go to: http://192.168.1.1, you can see the web page as below, press the button” Preview Camera” to enter the video page to watch the live video. -
Page 13: Other Information
Wi-Fi Bridge function Users can connect to internet with” Wi-Fi Bridge” function. You can connect to other Wi-Fi access point which has internet access and use Wi-Fi Endoscope at same time. Connect your PC or Smartphone to this Wi-Fi Endoscope ... -
Page 14: Troubleshooting
Troubleshooting No image or defects, noise in the image -Check whether the probe is connected to the handle body correctly or reconnect the probe. -Check the battery polarity to make sure it’s correct. -If batteries are exhausted, replace the batteries. ... - Page 15 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 16 TESLONG ©NT/Nov 2015 WF200 V3.1-EN...
