www.baudcom.com.cn

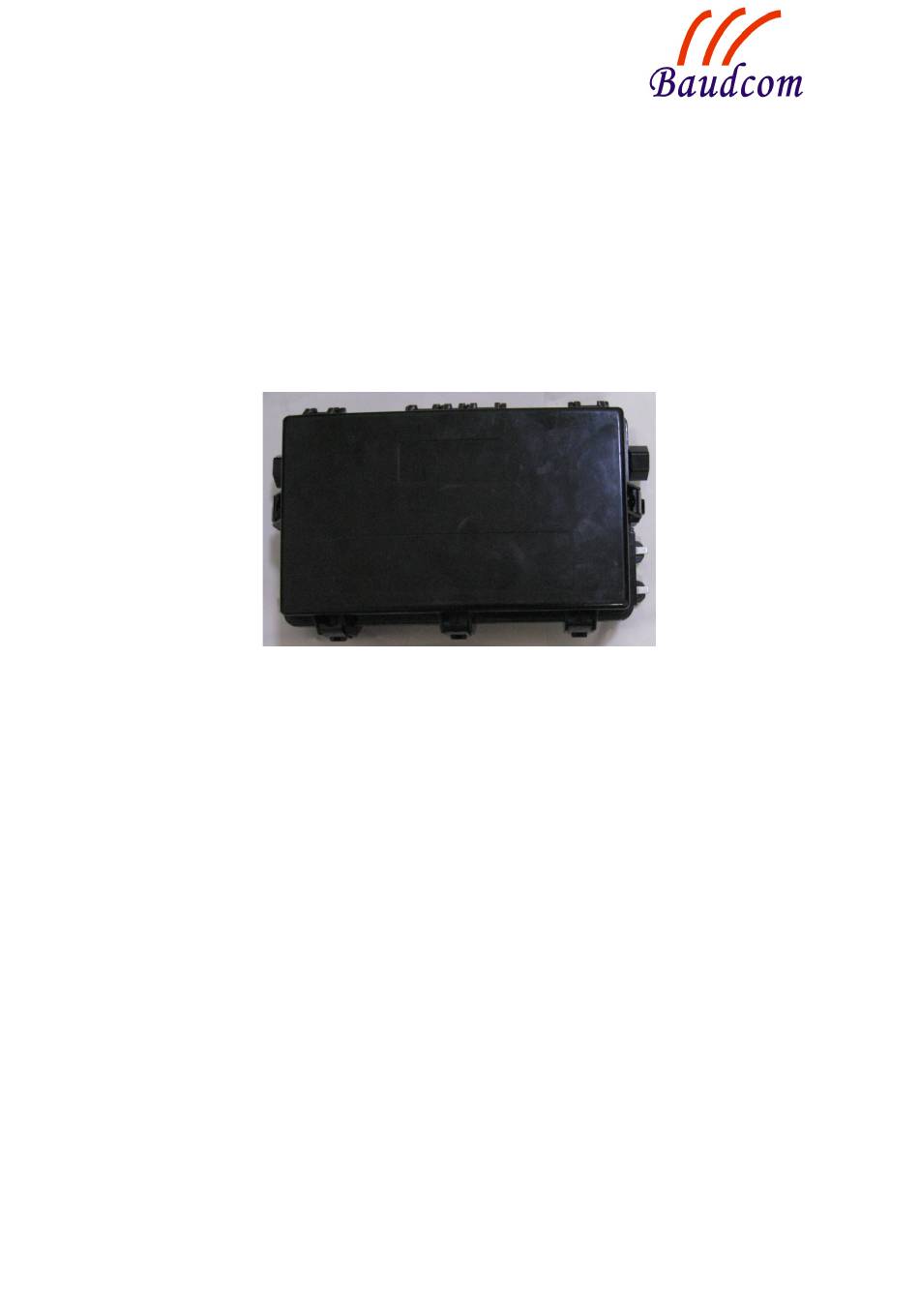

Optical Distribution Box Installation Guide
User Manual
Model: BD-FTB-16J
Thank you for choosing our products, if you need assistants or further details, please do
not hesitate contact us or visit our official website.
The Optical Distribution Box(ODB) is high-density 2-in-2-out fiber box solution. Designing with a
compact size of 340x220x100mm, the cabinet accommodates 1x2,1x4,1x8 and 1x16 etc.splitters.
The 4 ports are sized for main cable from 9 to 16mm in diameter, along with 16 3mm cables.
Accessory Kits:
Advertisement
Related Manuals for Baudcom BD-FTB-16J
Summary of Contents for Baudcom BD-FTB-16J
- Page 1 Optical Distribution Box Installation Guide User Manual Model: BD-FTB-16J Thank you for choosing our products, if you need assistants or further details, please do not hesitate contact us or visit our official website. The Optical Distribution Box(ODB) is high-density 2-in-2-out fiber box solution. Designing with a compact size of 340x220x100mm, the cabinet accommodates 1x2,1x4,1x8 and 1x16 etc.splitters.
-
Page 2: Installation Procedures
1. Cleaning Tissues 2.Hose camp 3.Main Cable Seals 4.Nylon Tie-wrap 5. Shrinkable Sleeves 6.Label 7. Drop Cable Seals 8. Aerial Buckle(with M5x12 stainless bolts) 9.M6x10 Stainless Bolts 10.Fiber Melting Protection Tube Installation Procedures: Main Cable Preparation (Figure 1) 1.1 Based on the diameter of the main optic fiber cable, choose corresponding cable seals and put the cable through two hose camps. - Page 3 Figure 2 4. The Melting Connection between Main Cables and Pigtails (Figure 3) 4.1 Ring cut and remove the loose buffer fiber tube at the access entry of fiber tray, expose the bare fibers, and secure the fibers with Nylon tie-wrap. 4.2 Secure the pigtails with tie-wrap at another side of access entry, and strip 4.3 Absolutely remove the dust &...
- Page 4 Figure 5 6.2 Put drop cables through the joint rings and seals, pin down the cable with cover plate. (figure 6, figure 7) Figure 6 Figure 7 6.3 Insert the drop cable seals in the bottom holes of the box, fasten the plastic screws.(figure 8) Figure 8 7.
- Page 5 8.Connection Between Pigtails and Splitters (Figure 11) Figure Figure 8.1 At the right side of the flipping board, the pigtails coil and then insert into the splitter. Figure 11 9.Aerial Installation Figure 9.1 Secure the aerial buckles on the cabinet with M6x10 Stainless bolts. 9.2 Hang the ODB on steel wire with two buckles.
