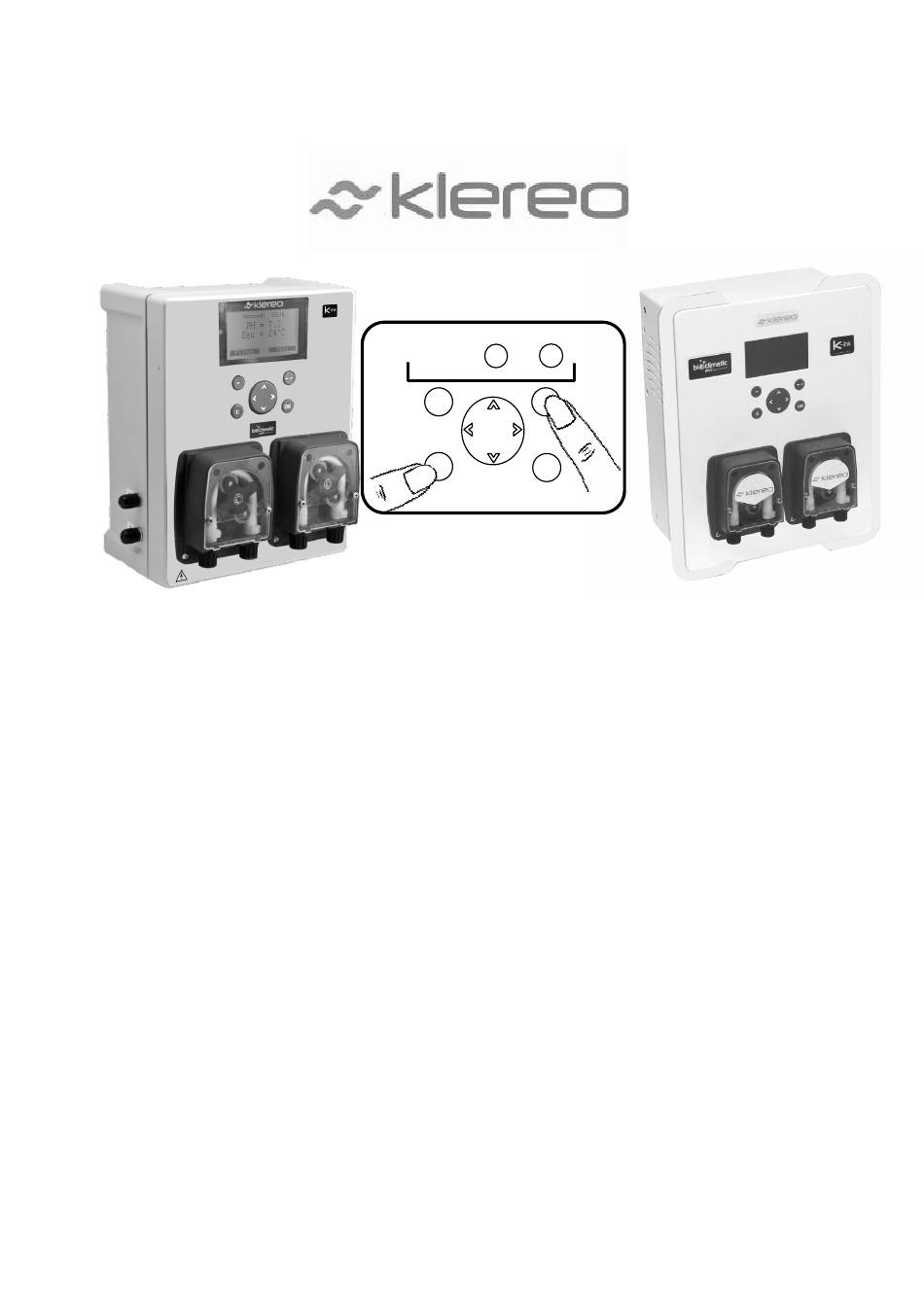

SWIMMING POOL MONITORING SYSTEM
Installation Manual
KLEREO KALYPSO
Read carefully and keep for future reference. Please study the manual closely, before
bringing the system into service (Version 1.1)
1 - The content of this booklet may be modified without prior notice.
2 - Printing restrictions mean that the displays shown in this booklet may vary from
those actually appearing on the product.
3 - The content of this booklet may not be reproduced in any way without the
manufacturer's permission.
To access the installation menu, press
simultaneously on
and
C
- -
-
- -
C
O
1
Advertisement
Table of Contents
Related Manuals for Klereo KALYPSO
Summary of Contents for Klereo KALYPSO
- Page 1 To access the installation menu, press simultaneously on Installation Manual KLEREO KALYPSO Read carefully and keep for future reference. Please study the manual closely, before bringing the system into service (Version 1.1) 1 - The content of this booklet may be modified without prior notice.
-
Page 2: Table Of Contents
3.4. Connecting the pipes of the metering pumps ..........9 3.5. Installing of cans and injections of liquid chemicals ........10 3.6. Installing the solenoid valve for kalypso with Bromine tablets ..... 11 3.7. Installing the cell with Klereo salt chlorinator ..........12 ELECTRICAL INSTALLATION ................ - Page 3 5.3. Interface ...................... 18 5.4. Filtering and Pool Characteristics ..............18 5.5. Regulations test ................... 18 5.6. Water treatment ................... 19 5.6.1. Balanced Ph ..................19 5.6.2. Ph correcting agent set-up ..............19 5.6.3. Disinfectant ................... 21 5.6.4. Reset daily treatment ................25 5.6.5.
-
Page 4: Description
1. DESCRIPTION The klereo Kalypso allows the regulation of pH and disinfectant (Chlorine, Bromine or salt chlorinator). 1.1. Klereo Kalypso kit contents The Klereo kalypso kit consists of the following items: • A control box unit with a user-friendly interface thanks to an LCD screen display •... -
Page 5: Kalypso Options
(Hybrid salt chlorinator only). 2. USAGE LIMITATIONS The installation must meet the following conditions to ensure the Klereo Kalypso system operates correctly: –... -
Page 6: Hydraulic Installation
3. HYDRAULIC INSTALLATION The following tools are needed for installing the Klereo kalypso system: - A saw - A drill - A screwdriver - A cross-head screwdriver - A ratchet spanner Ø 13 - PVC glue - A spanner Ø 13mm... -
Page 7: Holding Collars ( Optional)
Figure 6. Tube 5 probes 3.2.2. Holding collars ( optional) Install the collars directly onto the existing pipe. There are 2 models: Ø 50mm or Ø 63mm. Probes must be relatively close to each other. Drill a 13mm hole for the Put the seal into place probes and an 8mm one for the injections... -
Page 8: Fixing The Probes
Figure 9. Analysis chamber 3.3. Fixing the probes The necessary parts to fix the pH, ORP probes and water temperature sensor are detailed as follows: WARNING: The probes are fragile elements, must be handled and installed with care and without forcing Figure 10. -
Page 9: Connecting The Pipes Of The Metering Pumps
The holding collars must be placed so that the pH and ORP probes are held vertically (+/- 10°) . 3.4. Connecting the pipes of the metering pumps Transparent Rigide semi- flexible opaque pipe pipe (PVC) (PE) Injector valve Drawing strainer Figure 12. -
Page 10: Installing Of Cans And Injections Of Liquid Chemicals
Check that the holding collars used to inject the products are sealed. The room must be ventilated. Keep a minimum distance of 1 m between the tanks and the Klereo components, to avoid fumes from the products damaging the system. -
Page 11: Installing The Solenoid Valve For Kalypso With Bromine Tablets
The holding collars used for injecting products must be placed at the end of the filtering circuit before the backflow. Maximum distances between Klereo control box unit and the tanks or the injection points are 2m maximum. The minimum distance between two injection points is 40cm . A drawing up cane with empty tank level detector is optional. -
Page 12: Installing The Cell With Klereo Salt Chlorinator
Install manual valves at the by-pass for easy maintenance. 3.7. Installing the cell with Klereo salt chlorinator Allow a maximum distance of 4.5m between the cell and the control box unit (it is actually the length of the cable between the 2 units). Connecting the cell is done in Ø... -
Page 13: Electrical Installation
Depending on the model received you will have to connect the probe in this way: • Either directly on the central unit : Case N°1 Kalypso Chlorine or Bromine • Either on the multi-sensor box: Case N°2 Kalypso Hybrid Case N°1... -
Page 14: Connecting The Wires
Figure 23. Connection for detecting the operation of the filter pump IMPORTANT The injection of chemicals is only possible when input I - J is supplied with 220V. Connecting the inputs/outputs : The C and D is used to detect the empty chlorine tank The E and F is used to detect the empty pH tank. -
Page 15: Kalypso Low Salt Hybrid
Figure 25. Cabling the wires on the klereo kalypso control box unit 4.3.1. Kalypso Low salt hybrid ON/O ON/O Radio antenna to be screwed on the housing Figure 26. Opening and fixing of the the Klereo Kalypso Hybrid box Multi-sensor... -
Page 16: Start Up
5.1.1. Kalypso interface To access the installation menu, press simultaneously on display Shortcut or screen selection key Back or cancel confirm Navigation key Figure 28. kalypso display unit On Kalypso Chlorine and Bromine ,the ON or fault indicator light is:... -
Page 17: Main Menu
Once the display unit starts up, it displays the following home screen: 1. pH and water temperature values Arrêt 2. Programmed operating mode pH Régulé 3. Access to the Klereo menu Régulé You can display the measured ORP value by selecting the ORP display checkbox in the menu : Klereo... -
Page 18: Interface
Pool volume Filter pump flow rate In order to guarantee the correct operation of the Klereo control system, it is essential to correctly set the characteristics: the volume of water in the pool and the flow rate of the filtration pump. -
Page 19: Water Treatment
IMPORTANT : When activating the dosing pumps, check that the liquid is circulating in the right direction and up to the pool's filtration circuit. 5.6. Water treatment 5.6.1. Balanced Ph Klereo Water treatment Balanced Ph This menu indicates the balanced pH by measuring and entering the TAC (alkalinity) and TH (hardness) values. - Page 20 If the measured pH value is higher than the pH setpoint, in the case of a correction with pH minus, Klereo will control the pH corrector injection in order to reach the set point. In the case of a treatment with pH plus, if the measured pH value is lower than the pH set point, klereo will command the addition of pH corrector.
-
Page 21: Disinfectant
This mode can be used temporarily in case of wintering or when adding products to the pool in order to adjust certain chemical parameters of the water such as TAC, TH,...and so on (consult your Klereo installer). c) Fixed volume mode This treatment method can be used when the pH probe fails and thus maintain proper disinfection of the pond, pending its replacement. - Page 22 If you have a klereo Hybrid Salt Chlorinator, select as disinfectant « Klereo Salt Chlor 3 ». Select then the Klereo Salt Chlorinator model by pressing the screen selection key below «Model». 5.6.3.2. Operating mode This menu allows you to configure the operating mode of the disinfection. Depending on the disinfectant chosen, the operating modes will not be the same.
- Page 23 Klereo will inject disinfectant and will stop injection when the target value is reached. To adjust the ORP parameters, go to the menu: Klereo Water traitement Disinfectant Select the regulated mode and adjust the target Press the button under "Modify"...
- Page 24 Klereo Water treatment Salt Chlorinator parameters This menu is only shown when a Klereo slat Chlorinator has been installed, allowing access to features specific to the use of this Salt Chlorinator. a) Hybrid set up Klereo offers a Hybrid salt chlorinator (patented system) that combines salt...
-
Page 25: Reset Daily Treatment
Salt Chlorinator equipment. c) ORP security There is an adjustable ORP security when using a Salt Chlorinator treatment (whatever the model, Klereo or another brand) in order to stop Chlorine production when reaching a maximum value. Default value is 800mV. -
Page 26: Sensors Set-Up
The "Presence. Sensors" menu allows you to indicate which sensors are present in the installation. If the box is ticked it indicates that the sensor is present and the function associated with it will be allowed. Klereo Parameters Set-up Presence sensor... -
Page 27: Orp Probe Checking
Before the pH probe is installed, let it submerged in a glass of tap water for at least 30 minutes The pH probe must be calibrated every 6 months. For calibration go to the following menu: Klereo Maintenance PH calibration On the display unit, enter the pH calibration menu and run the procedures following... -
Page 28: Peristaltic Pumps
30 minutes. The ORP probe must be checked when installed and each time the season starts. For calibration go to the following menu: Klereo Maintenance ORP Checking On the display unit, enter the ORP check menu and run the procedures following the... -
Page 29: Appendix 1:Menu Map
Figure 38. Santoprene tube 7. APPENDIX 1:MENU MAP List of messages if Air temp. (optional) Water (if hybrid) Resynchronization Sensors validation Pool volume Filter pump flow rate ORP regul. Filtering synch.. According to disinfectant type Disinfectant Boost treatment Fixed volume According to disinfectant type Fixed time According to disinfectant type... - Page 30 Take over Liquid Chlorine Bromine Disinfectant type Klereo 3 Salt Chl. (if hybrid version) None pH correcting agent pH minus pH plus None Boost treat. timelag Hybrid configuration Salt Chlor. cleaning Water temp security Salt Chlorinator parameters (in case of...
- Page 31 Treatment tank Air temp (optional) Priorities / securities Unlimited injections Ext. air (if frost free) Radio matching Connect Tests / Installation Regulations test Salt Chlor. test (if installed) Input status Pool info Quick installation Reset Reset Display Reset control box Reset parameters Factory Settings Display...
- Page 32 5 rue du Chant des Oiseaux 78360 MONTESSON FRANCE Email: contact@klereo.com Tel.: +33 130 15 78 14...
