Summary of Contents for Medify Air MA-45

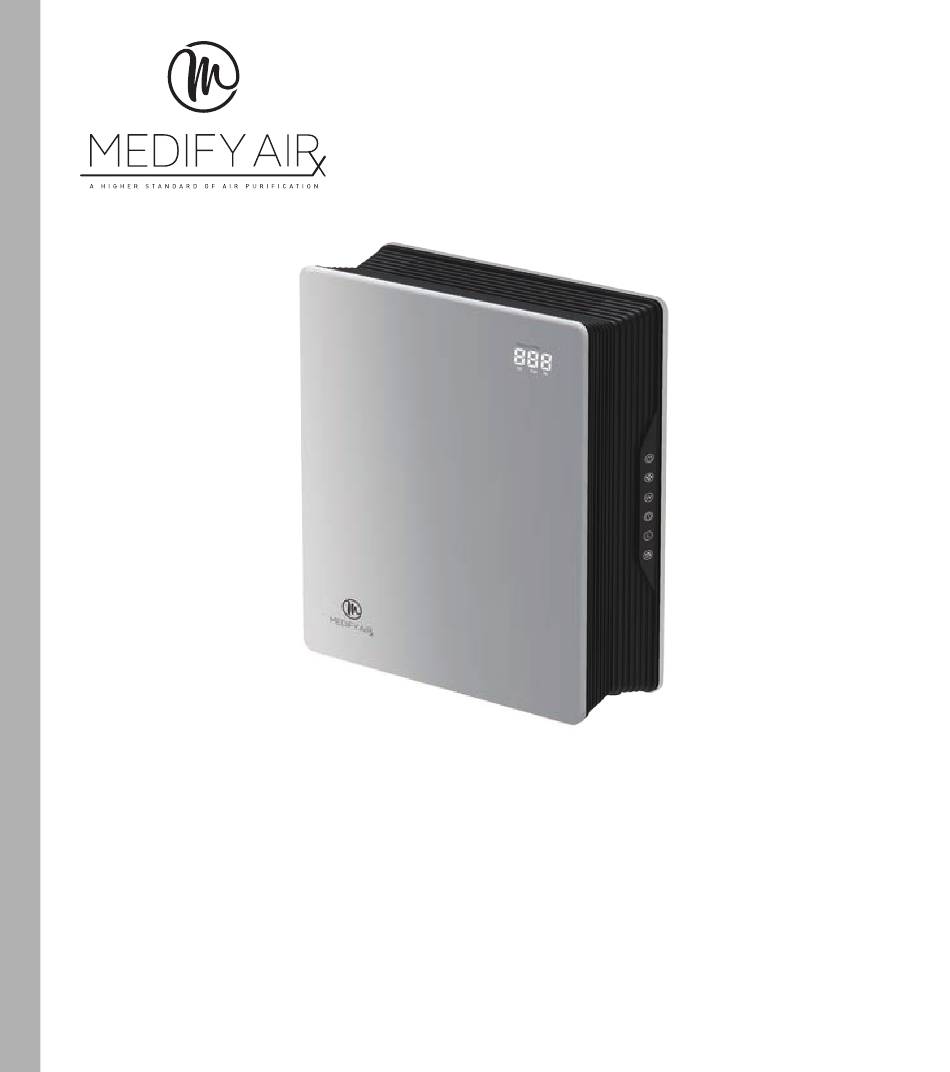

- Page 1 MA-45WM AIRPURIFIER READ AND SAVE THESE INSTRUCTIONS INSTRUCTION MANUAL AND WARRANTY INFORMATION MA-45WM Rev: 11/10/22...
-
Page 2: Lifetime Warranty
LIFETIME WARRANTY: IF FILTERS ARE REPLACED ON TIME WITH GENUINE MEDIFY REPLACEMENT FILTERS. IMPORTANT SAFETY INSTRUCTIONS: WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS BEFORE USING. DANGER –... - Page 3 • To disconnect the air purifier, first turn controls to the off position, then remove plug from outlet. • Do not tilt or move the air purifier while it is in operation. Shut off and remove plug from outlet before moving. •...
-
Page 4: Technical Data
TECHNICAL DATA STANDARD COVERAGE • Voltage: 120V 60Hz 1544 sq. ft. every 60 minutes, 772 sq. ft. every • Rated Power: 55W 30 minutes, 386 sq. ft. every 15 minutes • Noise level: Min: 46dBA, Max: 66dBA • Unit dimensions: 19.8"H x 6.3”W x 17.7”D •... -
Page 5: How To Use
HOW TO USE CONTROL PANEL BEFORE TURNING THE UNIT ON • Take the air purifier out of the box and remove the clear protective plastic bag around the filters. • Mount the air purifier securely on the wall or place the air purifier on a level surface. -
Page 6: Filter Replacement
FILTER REPLACEMENT Filter Indicator Light when it is time to replace the True HEPA H13 filter based on the air purifier’s hours of use, a reminder will appear on the LED display to alert you to change the filters before further use. REPLACING THE TRUE HEPA H13 FILTER For optimal performance, replace every 2500 hours under normal usage conditions. - Page 7 4. Install a new genuine Medify replacement filter with the filter Tabs facing out. 5. Align the tabs at the bottom of the grille overs with the unit. Gently push the grille covers until they snap back into place. 6. Plug the power cord into a standard AC outlet. Press and hold the dimmer button for 3 seconds to reset the indicator.
- Page 8 MA-45WM wall-hanging bracket installation instructions 1. Preparations before installation Installation tools: electric drill, Φ10 drill bit, cross screwdriver, etc; • Check whether the accessories are complete according to the accessories list; • specification Quantity 10mm M6*20 M4*50 Installation location selection: must be able to bear the weight of the product and easy to operate, •...
- Page 9 Fix the bracket to the MA-45WM unit. • Attach the MA-45WM unit to the wall •...
-
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING THE PRE-FILTER NOTE: For best performance, vacuum the pre-filter once a month under normal usage. 1. Unplug the air purifier. Remove the True HEPA H13 filter as described in the Replacing the True HEPA H13 Filter section. Place the True HEPA H13 filter back into the air purifier and close grille. -
Page 11: Troubleshooting
This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product. The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model’s CADR for dust and the electrical energy it consumes, or CADR/Watt. -
Page 12: Warranty Information
Medify offers a lifetime warranty for parts and service as long as you are on record as having purchased Genuine Medify Replacement Filters as directed every 2500 hours of use. See website for details and easy online registration. Medify Air 150 E Palmetto Park Road, Suite 301 Boca Raton, FL 33432 www.medifyair.com Contact:...
