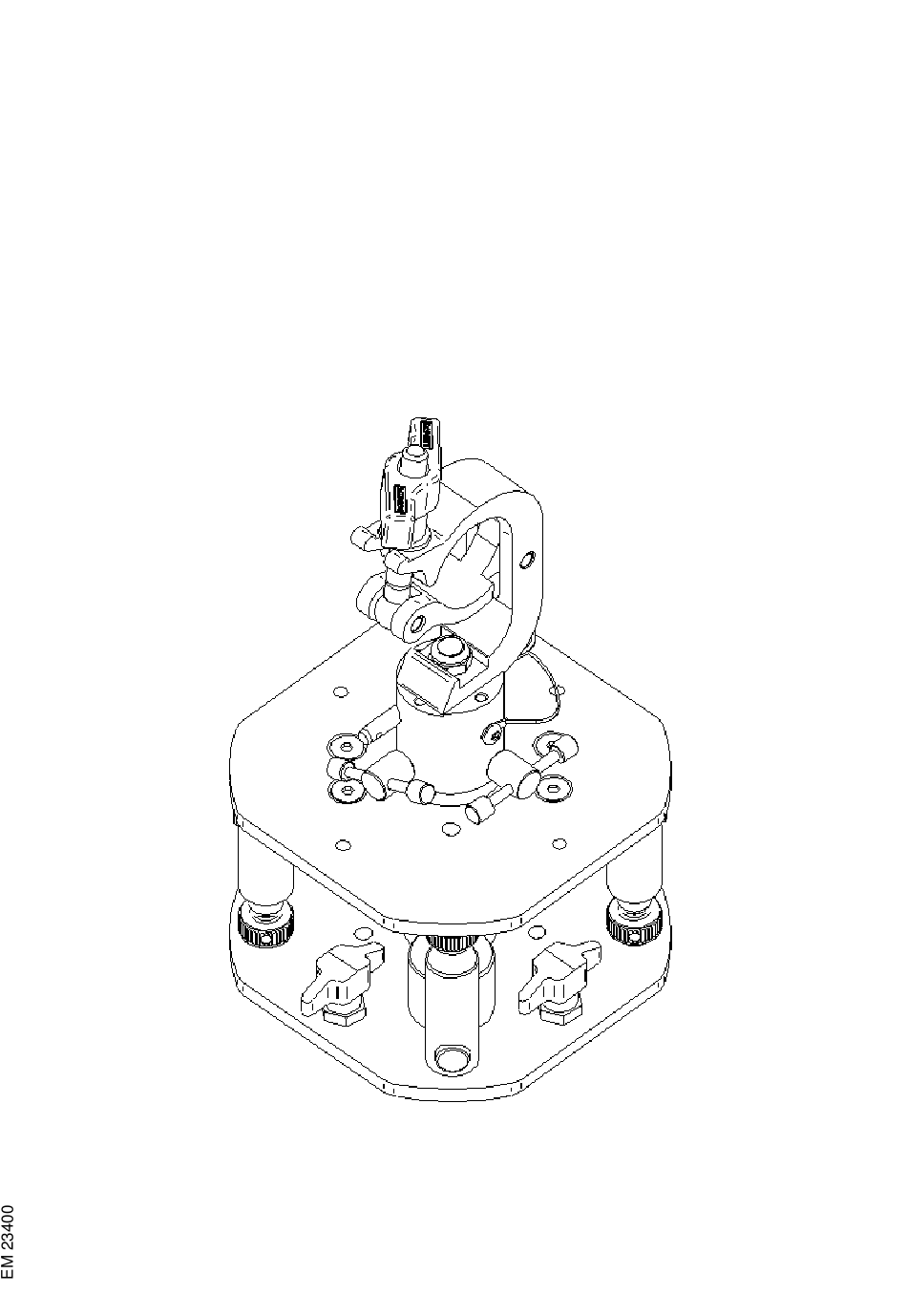

- Page 1 User's Guide ELPMB81 Tilt Adaptor V12H006AE0 email: info@euromet.com...
-
Page 2: Safety Precautions
Safety Precautions DANGER • Failure to comply with these safety precautions results in death or serious injury; • ELECTRICAL SHOCK HAZARD! Always turn off, disconnect, and disengage all power sources to the projector before servicing; • Maximum projector weight limit is 45kg (99 lbs). WARNING Failure to comply with these safety precautions may result in serious injury. - Page 3 Standard VESA YES (both of side) M-TILT has the standard VESA and the unlosable knob (male thread), so you can use with all the optional Euromet with Standard VESA and female thread. You can use M-TILT with: 22000 and 22500 MATRIX;...
- Page 4 Place ELPMB84 frame on an even surface with the base plate turned upwards; • Apply the ELPMB81 Tilt Adaptor to the base plate of the frame and screw the thumb screws (015) into the 4x female M8 threaded holes with 100x100mm distance (tighten the 4 thumb screws manually);...
-
Page 6: Maintenance
Refer all other servicing to qualified service personnel. HARDWARE’S INSPECTION The ELPMB81 tilt adapter does not require special maintenance, but a visual inspection must be conducted before each installation involving the system. Please conduct a visual inspection to ensure that all screws are in the correct positions and none are missing.
