Summary of Contents for euromet ELPMB85

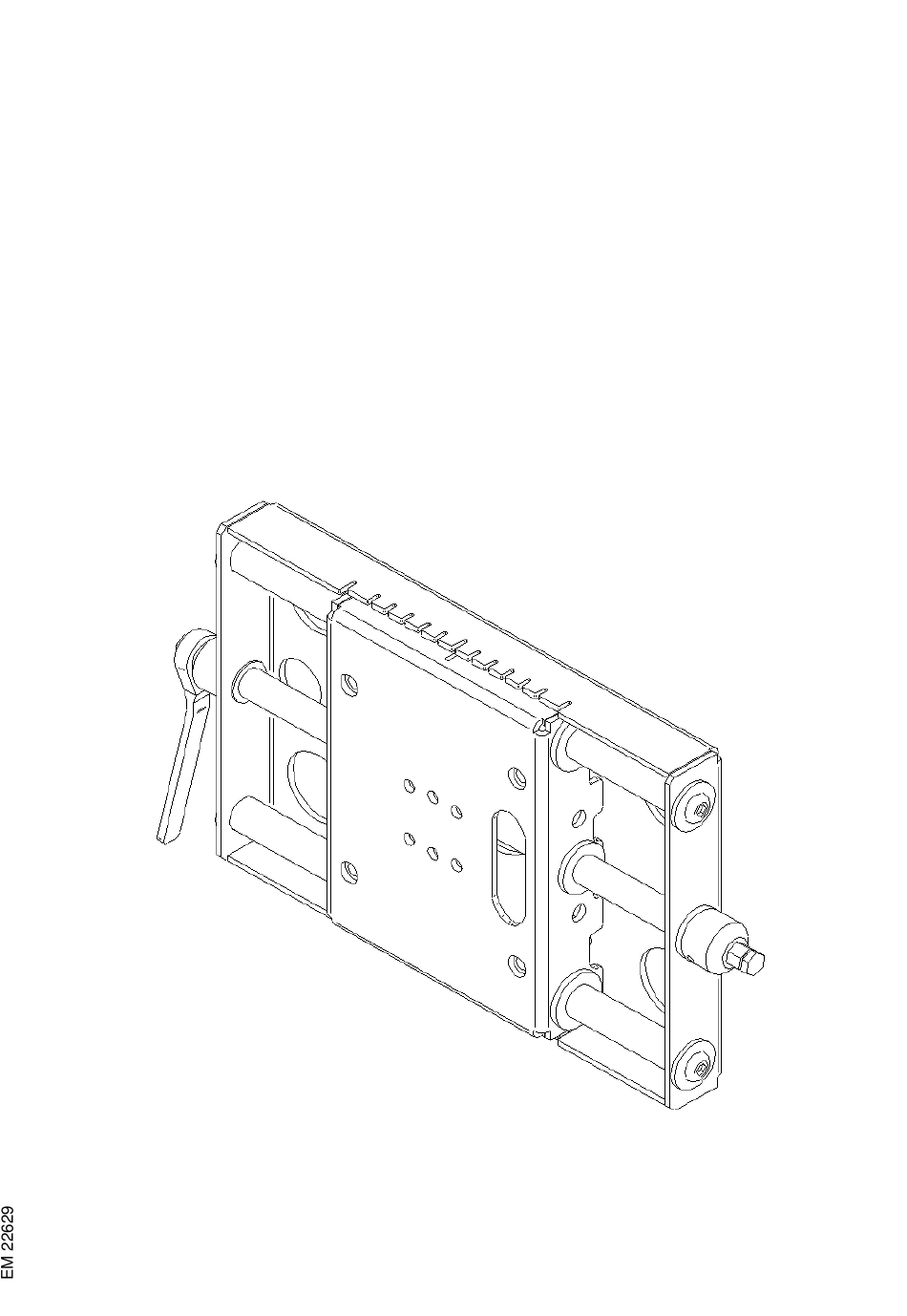

- Page 1 User's Guide ELPMB85 Rail Adapter V12H006AX0 email: info@euromet.com...
-
Page 2: Safety Precautions
Safety Precautions DANGER • Failure to comply with these safety precautions results in death or serious injury; • ELECTRICAL SHOCK HAZARD! Always turn off, disconnect, and disengage all power sources to the projector before servicing; WARNING Failure to comply with these safety precautions may result in serious injury. •... - Page 3 The nomenclature of "moving" or "fixed" face refers to the fact that the first one runs along fixed tracks, but despite this, the ELPMB85 can be fixed (to the ceiling or to a trellis) in both directions, as long as it works horizontally.
- Page 4 Use of ELPMB85 Once ELPMB85 has been assembled (see chapter 3) to use it, you have to: 2.1 - Rotate the ratchet wrench, present at one of the 2 ends so as to move the “moving” face with respect to the other face, in one of the 2 directions;...
- Page 5 Assembly with other products ASSEMBLY WITH “MOVING” FACE (001) To fix the “moving” face to other product you have to: 3.1.1 – Apply a product equipped with 4 through holes for M8 screws with standard attachment (in the picture is shown a simple plate used only for illustrative purpose); 3.1.2 –...
- Page 6 3.2.3 - Make sure that the 4 holes on both faces are coaxial with each other, so apply 2 screws (on the inside with respect to the folds) in the uncovered holes of the ELPMB85 “fixed” face, then tighten the 2 screws (without fully locking of the 2 sheets);...
- Page 7 Rail is equipped with a standard double attachment compatible with all the main products (see chapter 3 to understand how to fix them to the Rail). Here some examples with KOSMO: A) ELPMB68 + ELPMB85 B) ELPMB85 + Single Clamp C) ELPMB68 + ELPMB85 + Single Clamp...
- Page 8 To fix the ELPMB68 to the ELPMB85 you have to: 4.1 – Remove the ELPMB68 plate (003) 4.2 – Fix the ELPMB68 on the face (004) in holes (005) using 2 M6 screw (use the allen key throught the circular holes 006)
-
Page 9: Maintenance
Maintenance Do not try to service this product yourself, except as specifically explained in this User’s Guide. Refer all other servicing to qualified service personnel. HARDWARE’S INSPECTION The ELPMB79 arm adapter does not require special maintenance, but a visual inspection must be conducted before each installation involving the system.
