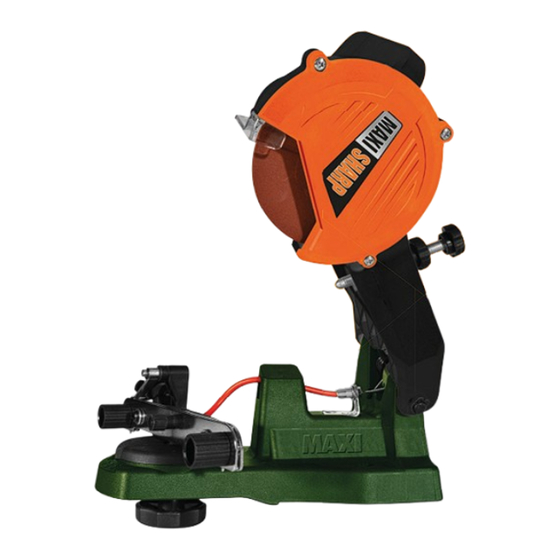

Portek MAXI SHARP Operator's Handbook Manual

Mains powered chainsaw sharpener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

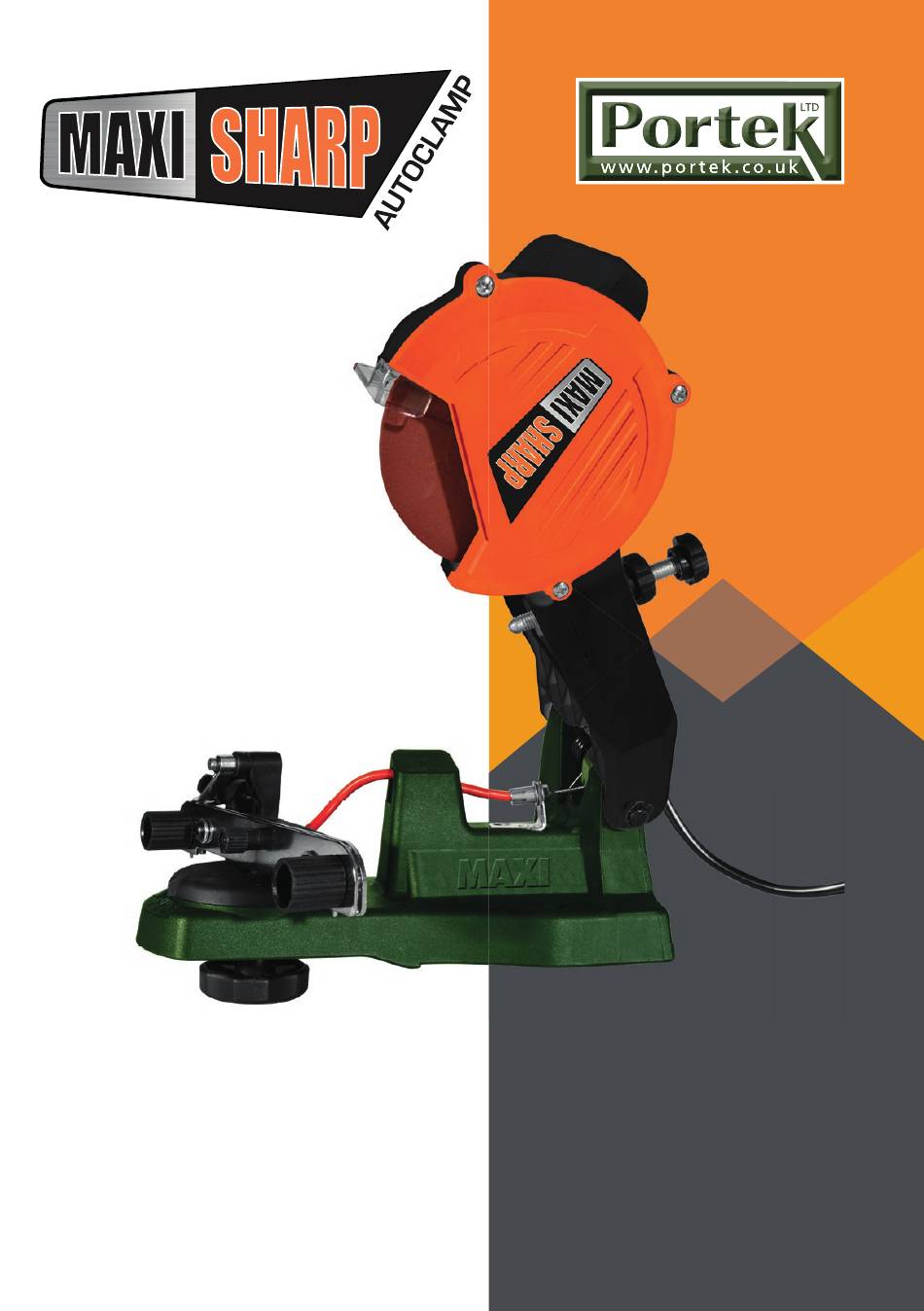

1
Mains Powered
Read and fully understand the
instructions before operating
Chainsaw Sharpener
the Chainmaster MAXI SHARP
Operators Handbook
portek.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXI SHARP and is the answer not in the manual?

Questions and answers

Related Manuals for Portek MAXI SHARP

Summary of Contents for Portek MAXI SHARP

  • Page 1 Mains Powered Read and fully understand the instructions before operating Chainsaw Sharpener the Chainmaster MAXI SHARP Operators Handbook portek.co.uk...

  • Page 2: Before You Start

    Before you start READ AND UNDERSTAND THIS MANUAL FULLY BEFORE OPERATING THE MAXI SHARP This user manual accompanies this chainsaw Sharpener and contains important information on setup and handling. Before using the equipment, read the user manual carefully. This particularly applies to the safety notes. Failure to do so may result in personal injury or damage to the equipment.

  • Page 3: Important Safety Information

    Important safety information ALWAYS WEAR SAFETY CLOTHING IN CONJUNCTION WITH HAND, EYE, HEARING AND FOOT PROTECTION TO HSE/EN SPECIFICATIONS Symbols Denotes risk of personal injury Children shall not play with or damage to the tool. the appliance. Read instruction manual Information of the acoustic before use.

  • Page 4: Maxi Sharp Main Features

    Auto-Clamp MAXI SHARP 1. Chain stopper Setting screw for limiting depth 2. Chain stopper setting screw Grinding wheel 3. Scale for setting grinding angle On/Off switch 4. Locking screw for grinding angle setting 10. Grinding wheel cover 5. Chain carrier 11.

  • Page 5: Table Of Contents

    Contents CONTENTS Before you start Important safety information MAXI SHARP main features General safety information 6 - 7 Sharpener Assembly Operation 10 - 11 Parts listing 12 - 13 Technical data and disposal Notes Declaration of Conformity...

  • Page 6: General Safety Information

    General Safety Information Read all safety warnings. Failure to follow the warnings may result in serious injury or even death. 1. Keep children and bystanders away while operating a power tool. Distractions cause a loss of control. 2. Check for signs of wear or damage, before using the tool and after any impact, and repair as necessary.
  • Page 7 General Safety Information 3. Personal Safety • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 8: Sharpener

    Sharpener Unit Safety Safety Warnings for MAXI SHARP • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

  • Page 9: Assembly

    Mount the base to the work surface through the two 9mm (1/4") mounting holes (bolts not included). 4. The MAXI SHARP is assembled and ready for use. The pre-installed grinding wheel is for universal use. To replace a grinding wheel see “Grinding Wheel Replacement” section.

  • Page 10: Operation

    5. Switch ‘ON’ the MAXI SHARP by pressing firmly. Use the handle to bring the grinding wheel down towards the chain tooth.
  • Page 11 (i.e: screwdriver handle). If it is in good condition it will produce a metallic sound. A dull sound indicates a crack or break. Replacement Portek Grinding Wheels are available: 4.5mm thick wheel part number 092/01 and 3.2mm thick wheel part number 092/02 Changing the Grinding Wheel 1.

  • Page 12: Parts Listing

    Parts List DESCRIPTION DESCRIPTION 4.2x14 Cross Pan Head M8x45 Hexagon Headed Bolt Self Tapping Screw Fixing Frame Back Cover ø3.2x16 Elastic Pin Electric Machinery 4.8x10 Cross Pan Head Power Cord Self Tapping Screw with Gasket Wire Pressing Plate After Clamping Piece Grinding Wheel Base Star Wheel Switch Plate...
  • Page 13 Parts List...

  • Page 14: Technical Data And Disposal

    Technical data Technical data Voltage 220-240V Input power Frequency 50Hz No-load speed 5,800 min-1 Cutting angles 35° left to right Grinding disk outer diameter 108 mm Grinding disk inner diameter 23 mm Grinding disk thickness (standard) 3.2 mm Grinding disk thickness (optional) 4.5 mm Sound pressure level LpA 54.1 dB (A)

  • Page 15: Notes

    Notes...

  • Page 16: Declaration Of Conformity

    Declaration of Conformity Declaration of Conformity Portek Ltd, Bryn Hall, Knolton Bryn, Overton on Dee,Wrexham, LL13 0LF declare that the machinery named below conforms to the requirements of EC Council Machinery Directive, Annex II Designation of Machinery: Portek MAXI SHARP Chainsaw Sharpener...
