Please read these operating instructions carefully for proper operation,
and keep them for future reference.
Note: The model and serial numbers of your product are important for you to keep for your convenience and
protection. These numbers appear on the nameplate located on he bottom of the product. Please record these
numbers in the spaces provided below, and retain this manual for future reference.

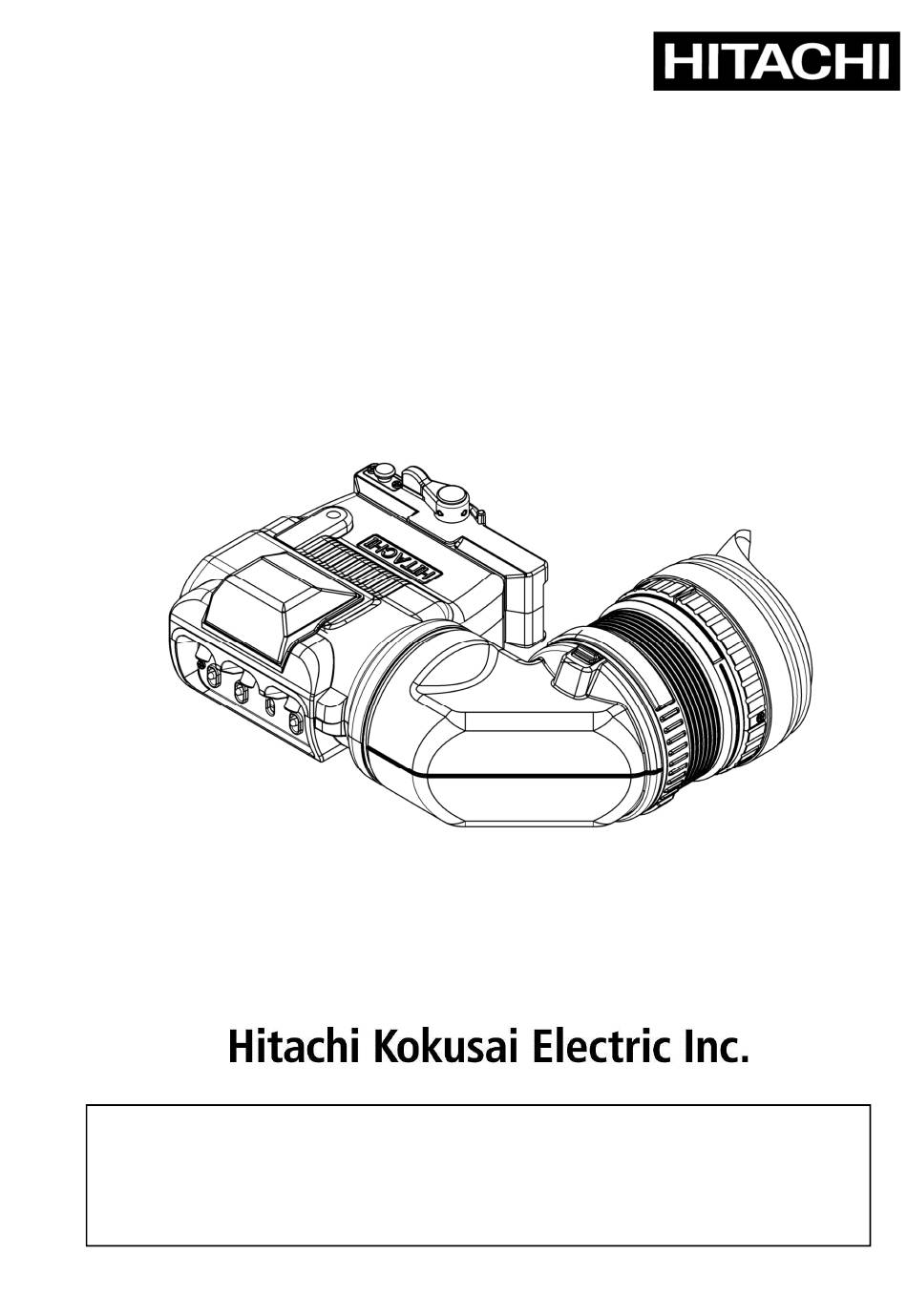

2-inch VIEW FINDER
VF-402-S3
OPERATING INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Hitachi Kokusai Electric VF-402-S3
Summary of Contents for Hitachi Kokusai Electric VF-402-S3
- Page 1 2-inch VIEW FINDER VF-402-S3 OPERATING INSTRUCTIONS Please read these operating instructions carefully for proper operation, and keep them for future reference. Note: The model and serial numbers of your product are important for you to keep for your convenience and protection.
-
Page 3: Safety Instructions
说明书（环境方面：补充资料） 对象产品：寻像 SAFETY INSTRUCTIONS Carefully read all safety messages in this manual and safety Instructions on your equipment. Follow recommended precautions and safe operating practices. SAFETY ALERT SYMBOL This is the “Safety Alert Symbol.” This symbol is used to call your attention to items or operations that could be dangerous to you or other persons using this equipment. -
Page 5: Outline And Features
Outline and features 1. OVERVIEW The Hitachi VF-402-S3 is a 2-inch CRT black and white viewfinder for use with a Hitachi HDTV portable color camera. A power supply stabilization circuit is built in to ensure stable operation even if the input ■... -
Page 6: Warnings And Cautions When Using
Warnings and cautions when using Viewfinder lens hazard Cleaning Do not point the eyelens toward the sun or other bright Use a photographers air blower to clear dust from the light source. There is danger of physical burns and lens. Wipe the case with a soft dry cloth. Do not use loss of eyesight. -
Page 7: Warranty And Service
(4) Compensation for loss of business, loss or damage to software, database and other contingent losses are beyond the scope of this Warranty. (5) Hitachi Kokusai Electric Inc. is not liable for the losses caused when the equipment is used in a system, use for business trades, production process, medical fields, crime prevention applications, etc. -
Page 8: Facility Names And Functions
Facility names and functions 1 FRONT TALLY 5 MARKER-1 switch Lights R TALLY and color is red. Turn ON/OFF of the marker. Can select brightness by TALLY switch. 6 MARKER-2 switch 2 PEAKING VR Turn ON/OFF of the marker. Control PEAKING of picture. 7 TALLY switch 3 CONTRAST VR Set of the Front Tally brightness. - Page 9 Attachment to the camera Viewfinder installation 1. Turn the lock lever as indicated by the arrow to secure the viewfinder guide. 2. Turn the viewfinder lock lever fully counter-clockwise. 3. Align the viewfinder guide pins with the camera guide holes and insert the viewfinder. 4.
-
Page 10: Visibility Adjustment
Attachment to the camera Visibility adjustment Screen adjustments The focus can be fine adjusted to individual Adjust the viewfinder screen with following controls. preference. Brightness: BRIGHT control 1. Adjust the camera focus. Contrast: CONTR control 2. Turn the visibility ring to adjust the focus of the Peaking: PEAKING control viewfinder image. -
Page 11: Viewfinder Indications
Viewfinder indications LED display in the Viewfinder R TALLY: Lights on during Red tally is on. G TALLY: Lights on during Green tally is on. EXT: Lights on during lens extender is used. MODE: Lights on during Gain is set to M or H, or shutter is on. Camera Menu &... - Page 12 Dimensions unit：mm...
