Ariston ST 50 ProTech Instructions For Installation Manual

Ariston ST 50 ProTech Instructions For Installation Manual

Unvented hot water storage cylinders
Hide thumbs Also See for ST 50 ProTech:
Table of Contents

Advertisement

Quick Links

Unvented Hot Water Storage
Cylinders
Instructions for Installation,
Servicing and Use
Country of destination: GB/IE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST 50 ProTech and is the answer not in the manual?

Questions and answers

Related Manuals for Ariston ST 50 ProTech

Summary of Contents for Ariston ST 50 ProTech

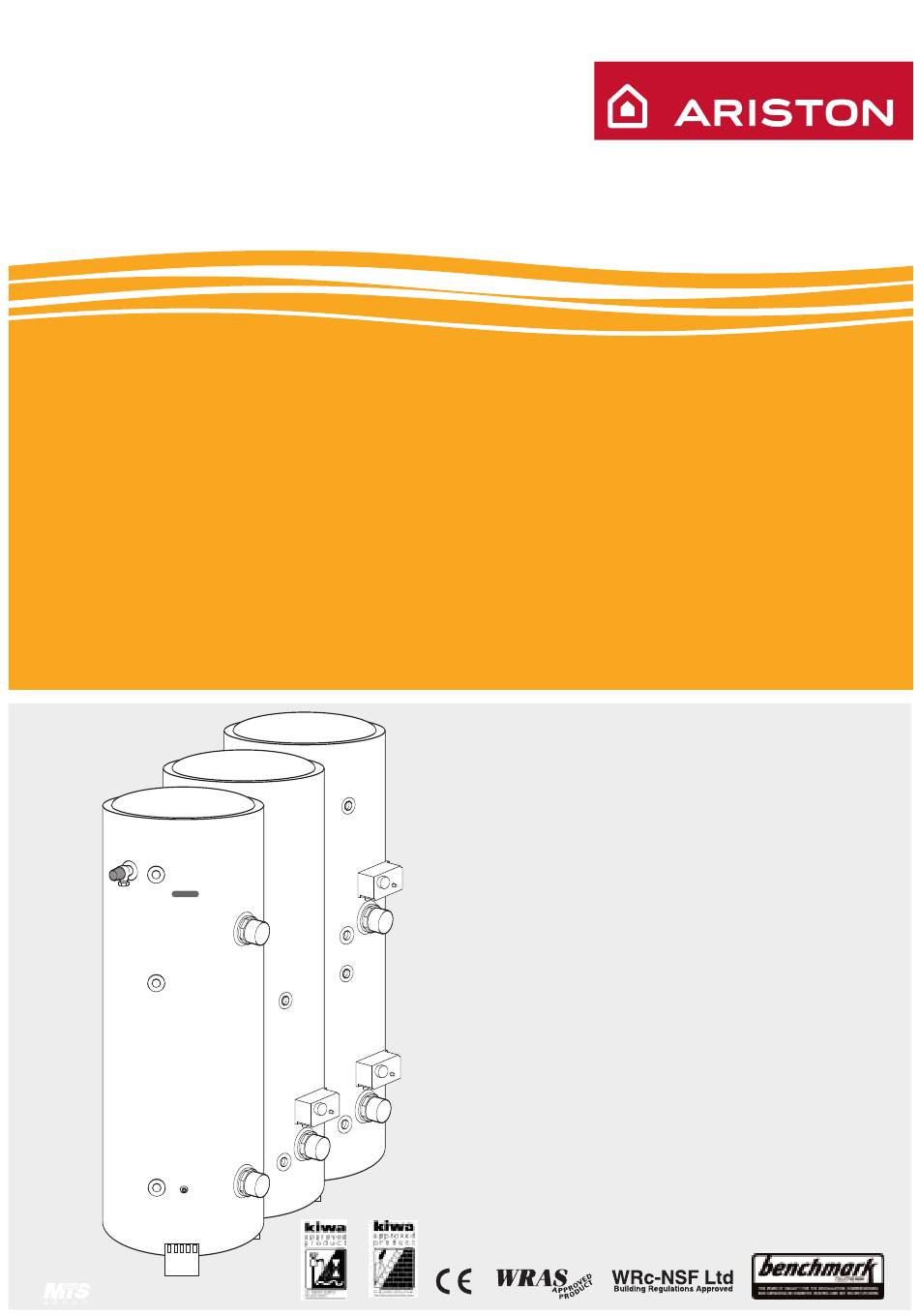

  • Page 1 Unvented Hot Water Storage Cylinders Instructions for Installation, Servicing and Use Country of destination: GB/IE...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS The Benchmark Scheme Page 2 GENERAL INFORMATION Page 3 Guarantee Page 3 How the Appliance Works Page 3 Delivery Page 4 INSTALLATION Page 5 Water Regulations Page 5 Building Regulations Page 5 General Guidance Page 5 Cold Water Supply Page 5 Siting and Fixing Page 6...

  • Page 3: General Information

    This manual is an integral and essential part of the product. It should be kept GENERAL with the appliance so that it can be consulted by the user and/or authorised INFORMATION personnel. Please read carefully the instructions and notices about the appliance contained in this manual, as they provide important information regarding the safe installation, use and maintenance of the cylinder.

  • Page 4: Delivery

    These comprise a combined line strainer/pressure reducing valve and core non-return valve/expansion relief valve. ELIVERY The Ariston range of Unvented Cylinders are available in the following options: The Wall-hung ProTech range (50, 80, 100 litre models), which are supplied as follows;...

  • Page 5: Installation

    valve and tundish), 2 x motorised valves (non-high temperature), 2 x Immersion heaters and thermostats with thermal cut-out, 2 x cylinder thermostats with thermal cut-out, 1 x elongated thermostat pocket (for solar applications), feet (x3), expansion vessel mounting bracket and hose, instructions for installation, servicing and use and the Benchmark Log Book.

  • Page 6: Siting And Fixing

    This thermostat and pocket must now be fitted to the top thermostat connection. Please also refer to Section 2.3 General Guidance Options A and B (page 5) of this manual. For further technical advice, please contact the Ariston Technical Advice Line on 0870 241 8180.

  • Page 7: Overall Dimensions

    VERALL IMENSIONS...

  • Page 9: Connection Of Mains Supply

    For floor standing models: ONNECTION OF AINS On the front of the unit there is a label to identify the connection ports. ATER UPPLY Please check this before making any connection to the unit. For units up to 300 litres it is recommended that all mains cold water supply pipe work is a minimum of 22mm, with the exception of model ST 50 ProTech where 15mm can be used.
  • Page 10 STD 125-150-210-300 D IRECT ST P 50-80-100 ITD 125-150-175-210-250-300 D IRECT COLD PRESSURE + TEMPERATURE MAINS-IN RELIEF VALVE 22mm COMBINATION VALVE COLD MAINS-IN 15/22mm EXPANSION VESSEL COMBINATION VALVE 15mm EXPANSION PRESSURE + TEMPERATURE VESSEL RELIEF VALVE HOT SUPPLY 22mm HOT SUPPLY 15/22mm EXPANSION RELIEF PIPE...
  • Page 11 ITSI 210-250-300 I 500 STI P NDIRECT LINKED COILS COLD MAINS-IN 28mm COLD COMBINATION MAINS-IN VALVE 22mm COMBINATION VALVE EXPANSION VESSEL EXPANSION VESSEL HOT SUPPLY 28mm PRESSURE + PRESSURE + TEMPERATURE TEMPERATURE RELIEF VALVE RELIEF VALVE HOT SUPPLY 22mm EXPANSION RELIEF FLOW PIPE ZONE...

  • Page 12: Cold Water Combination Valve

    The cold water combination valve may be fitted in close proximity to the ATER cylinder, or alternatively, it may be separated to allow the pressure reducing OMBINATION ALVE valve where the mains supply enters the property allowing for balanced cold water throughout the whole property whilst the 6 bar safety valve is fitted in close proximity to the cylinder.
  • Page 13 3/4” B.S.P. CONNECTION FOR EXPANSION VESSEL 22mm COLD 6 BAR 22mm TO WATER HEATER MAINS IN SERVICEABLE 3/4” PRESSURE REDUCING CARTRIDGE AND LINE STRAINER 15mm EXPANSION RELIEF (SET AT 3.5 BAR) OUTLET TO TUNDISH EXPANSION RELIEF VALVE (SET AT 6 BAR) 22mm COLD 22mm TO CYLINDER MAINS IN...
  • Page 14 3/4” B.S.P. CONNECTION FOR EXPANSION VESSEL 22mm COLD 22mm TO WATER HEATER MAINS IN 15mm EXPANSION RELIEF OUTLET TO TUNDISH SERVICEABLE 3/4” PRESSURE REDUCING CARTRIDGE AND LINE STRAINER (SET AT 3.5 BAR) EXPANSION RELIEF VALVE (SET AT 6 BAR) 22mm COLD MAINS IN 22mm TO CYLINDER NON-RETURN VALVE...

  • Page 15: Connection To Services

    It is recommended that a 22mm pipe run should supply the outlets ONNECTION TO ERVICES throughout the building, especially to baths and showers. Short runs of 15mm pipe may be used to connect basins and sinks. On floor-standing models a secondary return may be fitted (consult the label 3.10 ECONDARY ETURN...
  • Page 16 The single common discharge pipe should be at least one pipe size large than the largest individual discharge pipe to be connected. If unvented hot water storage systems are installed where discharges from safety devices may not be apparent i.e. in dwellings occupied by the blind, infirm or disabled people, consideration should be given to the installation of an electronically operated device to warn when discharge takes...
  • Page 17 WORKED EXAMPLE The example below is for a G1⁄2 temperature & pressure relief valve with a discharge pipe (D2) having 4 no. elbows and length of 7m from the tundish to the point of discharge. From T ABLE Maximum resistance allowed for a straight length of 22mm copper discharge pipe (D2) from G1⁄2 temperature &...

  • Page 18: Electrical Connection

    The electrical installation must be in accordance with the current I.E.E. 3.12 E LECTRICAL wiring regulations. ONNECTION PROTECH ELECTRONIC ANTI-CORROSION SYSTEM (ST Range & 500 litre models only) : The ProTech anti-corrosion system MUST be permanently MPORTANT connected to a fused non-switched 240V electricity supply see F 2.12.
  • Page 19 FITTING IMMERSION HEATER(S) (100 - 300 litre foor standing only) These are supplied with but not fitted to 100 - 300 floor-standing models. A sealing gasket is supplied with each element, however the use of a suitable silicone based sealing compound is recommended to ensure a correct seal. Care must be taken not to cross thread the immersion heater(s) when fitting.

  • Page 20: Electrical Diagrams

    3.13 Should the Economy 7 system not to be used, a separate 13 amp supply to LECTRICAL IAGRAMS each element will be required through a double pole fused isolating switch having a contact gap of at least 3mm on each pole.The immersion heater shall be installed with 85°C rubber insulated HOFR-sheathed flexible cable complying with Table 8 of BS 6141: 1991.
  • Page 21 . 2.16 MPORTANT HEN WIRING THE LITRE CYLINDERS IMMERSION HEATER ENSURE THAT A SUITABLE HEAT RESISTANT CABLE RATED ABOVE THE PROTECTIVE DEVICE IS USED MM FOR...
  • Page 22 Wiring diagram for two 2 Port Valves with Ariston GENUS HE, CLAS HE and CLAS boilers with 2 zone clip in fitted. ITSI ITH REGARDS TO THE RIMO CYLINDERS MORE DETAILED WIRING INSTRUCTIONS PLEASE CONTACT 0870 241 8180. THE TECHNICAL DEPARTMENT ON...
  • Page 23 Wiring diagram for two 2 Port Valves ITSI NOTE ITH REGARDS TO THE RIMO CYLINDERS MORE DETAILED WIRING INSTRUCTIONS PLEASE CONTACT 0870 241 8180. THE TECHNICAL DEPARTMENT ON...
  • Page 24 Wiring diagram for a 3 Port Valve & 2 Port Valve...

  • Page 25: Commissioning

    The thermostat(s) on the immersion heater(s) should be adjusted to trip at COMMISSIONING 60-65°C. This is the ideal temperature to prolong element life in hard water areas. Scale on the sheath builds up more rapidly at temperatures above this causing the element to overheat and premature failure can occur. Higher temperatures without additional controls would result in scalding.
  • Page 26 8) Check for leaks around the controls and immersion heaters and again after the unit has heated up; 9) Check that no water is passing to waste through the relief valves; 10) Test the operation of the temperature & pressure relief and expansion valves by lifting/turning the manually operated test lever/cap and observing that water flows through freely and safely to waste;...

  • Page 27: Maintenance

    To ensure efficient and safe operation, and to maintain the warranty, it is MAINTENANCE necessary to ensure the appliance is serviced annually by a competent person. Before servicing, preliminary electrical system checks must be carried out to ensure electrical safety (i.e. polarity, earth continuity, resistance to earth and short circuit).
  • Page 28 closes after testing); 4) Expansion relief valve - check manually by turning the test knob (ensure valve closes after testing); 5) Discharge pipes (D1) - from both temperature & pressure relief and expansion relief valve for obstructions; 6) Tundish & discharge pipe (D2) - open either valve gradually to produce a full bore discharge into tundish and D2 without any back pressure;...
  • Page 29 Unvented Controls(s) Check controls as per the following: 1) Line strainer - with the water supply turned off remove screen from strainer and clean of any detritus; 2) Expansion vessel - with the water supply turned off and taps open, check expansion vessel pressure and top up as necessary;...

  • Page 30: Fault Finding

    FAULT FINDING FAULT POSSIBLE CAUSES REMEDY 1) Mains cold water Check and open Isolating supply shut off and/or stop valve. Check water, Local Water Authority NO HOT WATER 2) Line strainer Turn off mains water supply, FLOW blocked remove line strainer and clean 3) Cold Water Check direction of flow...

  • Page 31: Technical Data

    TECHNICAL DATA Maximum Water Supply Pressure* Operating Pressure Expansion Vessel Charge Pressure Expansion Relief Valve Setting Pressure & Temperature Relief Valve Setting bar/°C 7/90 7/90 7/90 7/90 7/90 7/90 7/90 7/90 7/90 7/90 7/90 7/90 7/90 Pressure Reducing Valve Set Pressure Electrical Supply 240/415 240/415...
  • Page 36 Manufacturer: MTS Benelux sa/nv - Belgium Commercial subsidiary: MTS (GB) LIMITED MTS Building Hughenden Avenue High Wycombe Bucks. HP13 5FT Telephone: (01494) 755600 Fax: (01494) 459775 Internet: www.mtsgroup.com/uk E-mail: info@uk.mtsgroup.uk Technical Service Hot Line: (0870) 241 8180 Customer Service Help Desk: (0870) 600 9888...

This manual is also suitable for:

St 80 protechSt 100 protechContract std 125Contract std 150Contract std 210Contract std 300 ... Show all
