Summary of Contents for Victory RIS

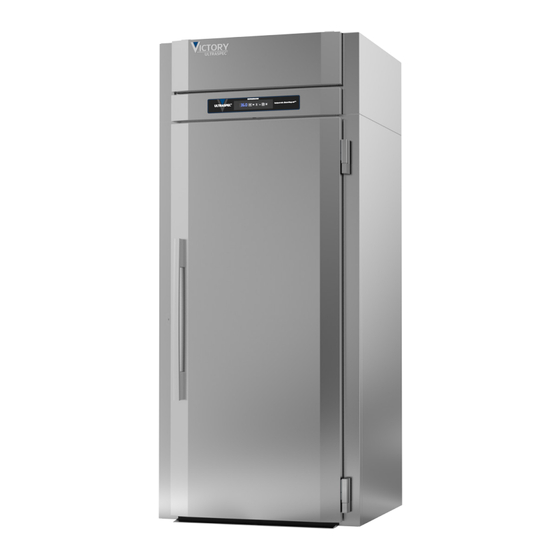

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all Hydrocarbon RIS and RISA Refrigerator Models 809-192A Rev B. 07/22/2024 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: victoryrefrigeration.com...
-
Page 2: Table Of Contents
If you the high standards set by Victory! You have made a have any questions, Please call our Technical Service quality investment that with proper maintenance will give Department at (800) 684-1199. -
Page 3: Safety
R290 equipment. • Clean a dirty condenser with a sharp object. • Use ONLY Victory factory service parts. Use of non • Store gasoline, kerosene or any other flammable OEM parts can be dangerous because of the design material near the cabinet. - Page 4 User Manual for RIS and RISA Refrigerators Victory SAFETY CAUTION: If it is necessary to move the Refrigerator after removal from the skid, CAUTION remove all doors and carefully push the unit at a point of no more than 36” from the bottom to avoid damage.
-
Page 5: Important Information
User Manual for RIS and RISA Refrigerators Victory IMPORTANT INFORMATION This unit is intended to be used in a commercial application. That includes bars and restaurants. If installed in a residence some commercial service companies may not be able to service it on site. -
Page 6: Product Information
RIS(A)-3D-S1-PT-G-HC* 101 1/4 X 37 3/8 X 84 3/8 Glass RIS models have stainless steel liners; RISA models have aluminum liners. * These models have two refrigeration systems, charge numbers are for each system. • All models will maintain product temperature between 36 and 38 degrees F. at the factory setting of 38. -
Page 7: Clearance And Placement
User Manual for RIS and RISA Refrigerators Victory CLEARANCE AND PLACEMENT 12" AT 0" AT BACK 0" AT 0" AT SIDES FLOOR Placement Consider the following when selecting a location for your Refrigerator: Clearance: • 12 in. at the top •... -
Page 8: Unpacking And Set Up
User Manual for RIS and RISA Refrigerators Victory UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. -
Page 9: Shelf Installation
User Manual for RIS and RISA Refrigerators Victory SHELF INSTALLATION 1. Determine the proper location for the shelf clips. 7. Confirm that the shelf is resting on ALL 4 clips and that the clips are securely attached to the pilasters. -
Page 10: Electrical
Class A GFCI outlets which have a trip limit of 4 to 6 mA. To avoid this issue in a location that requires GFCI circuit protection, Victory recommends using either an Eaton, SCF20, or HUBBELL Model Number GFRST83W 20A Heavy Duty Hospital Grade Self-Test GFCI Receptacle. -
Page 11: Using The Unit
User Manual for RIS and RISA Refrigerators Victory USING THE UNIT Operation is simple, just keep it connected to the correct The Refrigerator will automatically defrost as needed, power supply and the refrigerator will maintain the there is no set time for defrost. Push and immediately internal temperature it has been set to. -
Page 12: Sequence Of Operations
User Manual for RIS and RISA Refrigerators Victory SEQUENCE OF OPERATIONS COMPONENT OPERATION CONTROLLER ACTION OPERATION CONTROLLER ACTION COMPRESSOR Compressor turns The Compressor Compressor turns The Compressor on when the cabinet Contact is energized off when the cabinet Contact is de-... -
Page 13: Control Panel Display
User Manual for RIS and RISA Refrigerators Victory CONTROL PANEL DISPLAY Control Panel Indicators Icon Operation Meaning Compressor Permanently On Compressor On Blinking Delay, protection or start-up blocked Otherwise Defrost Permanently On Defrost active Blinking Activated manually or from Digital input... - Page 14 User Manual for RIS and RISA Refrigerators Victory Relay/Probe Description Terminal Compressor 10,11 Out 1 Evaporator Fan 4, 5 Out 2 Defrost Element 7, 9 Out 3 Light (or alarm relay if electronic Lock model) 13, 14 Out 4 Air/control probe 18, 19 PB1 –...
-
Page 15: Electronic Controller Parameter Changes
User Manual for RIS and RISA Refrigerators Victory ELECTRONIC CONTROLLER PARAMETER CHANGES Note: Key pad has a 3 second lock feature. Set key must be pressed for 3 seconds and released before keys will become active. Key pad will beep when unlocked and normal key pad operations performed. -
Page 16: Setting The Real Time Clock
User Manual for RIS and RISA Refrigerators Victory SETTING THE REAL TIME CLOCK To set the real time clock, press and release the set button to enter the machine status menu. “Set will appear on the menu. Use the up and down button to scroll to the real time clock menu folder. “Rtc” will appear on the display. - Page 17 User Manual for RIS and RISA Refrigerators Victory Rev. 07/24 Victory...
- Page 18 User Manual for RIS and RISA Refrigerators Victory Code Description Description Relay Reset Parameters involved to Enable alarm Probe Pb1 failure Active Automatic Ont, Oft Probe Pb2 failure Active Automatic Ont, Oft Probe Pb3 failure Active Automatic Ont, Oft Probe Pb4 failure...
-
Page 19: Cleaning And Maintenance
User Manual for RIS and RISA Refrigerators Victory CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Condenser coil Gaskets Routine maintenance Daily wipe down Quarterly cleaning Daily inspection, check Annually that hinges are tight to Weekly interior the cabinet. Every two years. -
Page 20: Condenser Cleaning
User Manual for RIS and RISA Refrigerators Victory CONDENSER CLEANING Keeping the condenser coil clean is critical to efficient 4. Remove the panel stand from its clip and secure into operation. the notch in the front right corner of the raised panel 1. -
Page 21: Methods For Cleaning Stainless Steel
User Manual for RIS and RISA Refrigerators Victory METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. Smears and fingerprints O’Cedar Cream Polish, Stainless... -
Page 22: Help
User Manual for RIS and RISA Refrigerators Victory HELP Trouble Diagnosis for the User Malfunction Possible Cause Likely Solution Connect to proper voltage circuit Replace Unit not plugged in. fuse or reset breaker. No cooling - unit is silent Fuse or circuit breaker tripped. -
Page 23: For The Service Tech - R290
User Manual for RIS and RISA Refrigerators Victory FOR THE SERVICE TECH - R290 Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems. Here are some critical service items. Other Information: This list does not qualify anyone to service the unit. It is a Evacuation: It is critical that a refrigeration system be reminder and checklist for the service tech. -
Page 24: For The Service Tech - Wiring Diagram
User Manual for RIS and RISA Refrigerators Victory FOR THE SERVICE TECH - WIRING DIAGRAM BLACK WHITE 115VAC 60 HZ EVAP FAN RELAY CONTROL CIRCUIT COMPRESSOR DETAIL CONDENSER FAN START RELAY S.C. COMP R.C. COMP RELAY HIGH PRESSURE LIMIT SWITCH... -
Page 25: Limited Warranty
Victory LIMITED WARRANTY Warranty (Continental USA & Canada Only) Proof of purchase must be supplied to Victory to validate the warranty. This warranty is valid only SEVEN (7) YEAR PARTS, LABOR, AND COMPRESSOR if equipment is properly installed, and started-up as LIMITED WARRANTY outlined in the Owner’s Manual. -
Page 26: Limited Warranty (Continued)
Special installation/applications, including remote LIMITATION OF LIABILITY: locations, are limited in coverage by this warranty. Victory or its affiliates shall not be liable for any Any installation that requires extra work, and/ indirect, incidental, special or consequential or travel, to gain access to the unit for service is damages, or losses of a commercial nature arising the sole responsibility of the equipment purchaser. - Page 27 User Manual for RIS and RISA Refrigerators Victory Warranty Registration Register your product online at Victory.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product Business Name: ____________________________________________________...
