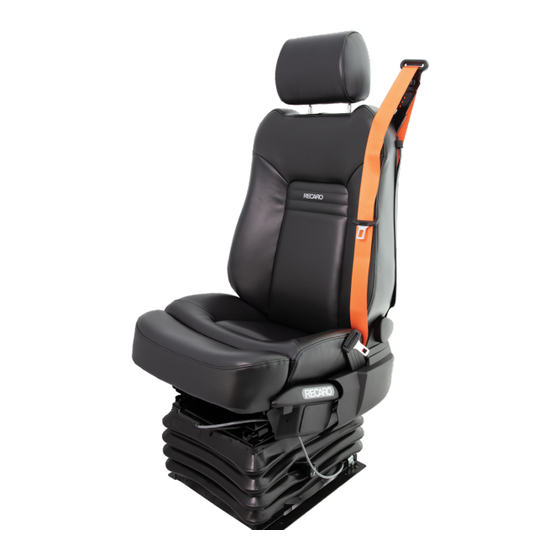

SEAT BELT PRESENTER – AM80 & AM384
Assembly Instructions
PARTS LIST
1x 20056924 – Seat belt
presenter
1x 30985807 – BOLT 7/16-
20x1.5" W/LOCTITE
1x 30855107 – WASHER-
GRADE 8 USS 3/8
1x 30546207 – NYLOCK NE
7/16-20 Z
1x 30829307 - CAP -NUT
17MM x 15MM ERGO
INSTRUCTIONS

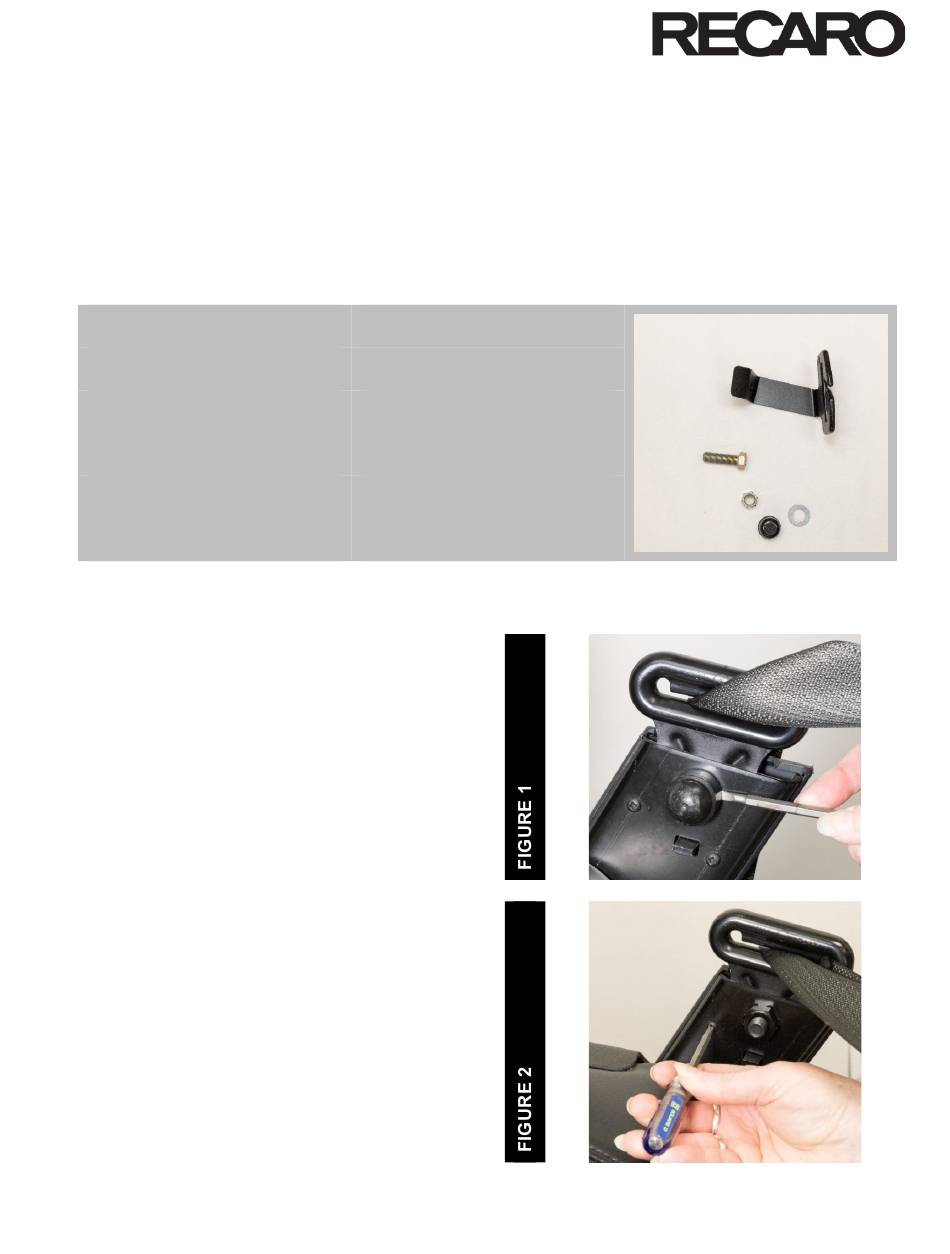

STEP 1: Remove the cap on the seat belt D-ring
bolt using a small pick or flat head screwdriver
(figure 1).
STEP 2: Remove the two screws that secure the
plastic cover on the D-ring bracket using a Phillips
#2 screwdriver (figure 2).
M1007507 - REV 1 (02/28/2024)
TOOLS NEEDED
1x 5/8" Socket
1x 5/8" Wrench
1x Torque wrench capable
of 50 Nm
1x Phillips #2 screwdriver
1x small pick or flat head
screwdriver
Page 1 of 3
recaro-automotive.com
Johnson Controls Inc.-INTERNAL-(Janis Moore)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RECARO AM80
Summary of Contents for RECARO AM80
- Page 1 SEAT BELT PRESENTER – AM80 & AM384 Assembly Instructions PARTS LIST TOOLS NEEDED 1x 20056924 – Seat belt 1x 5/8” Socket presenter 1x 30985807 – BOLT 7/16- 1x 5/8” Wrench 20x1.5" W/LOCTITE 1x 30855107 – WASHER- 1x Torque wrench capable...
- Page 2 STEP 6: Add a dab of black silicone sealant into the new cap to ensure it stays secure over the nut. Install new cap over the Nylock nut. Slide the webbing into the slot on the seat belt presenter (figure 6). M1007507 - REV 1 (02/28/2024) Page 2 of 3 recaro-automotive.com...
- Page 3 Phillips #2 screwdriver (figure 7). Part numbers: 20074668 RECARO North America, Inc 24801 Capital Blvd , Clinton Twp, MI 48036 USA Main: +1 800-873-2276 M1007507 - REV 1 (02/28/2024) Page 3 of 3 recaro-automotive.com...
