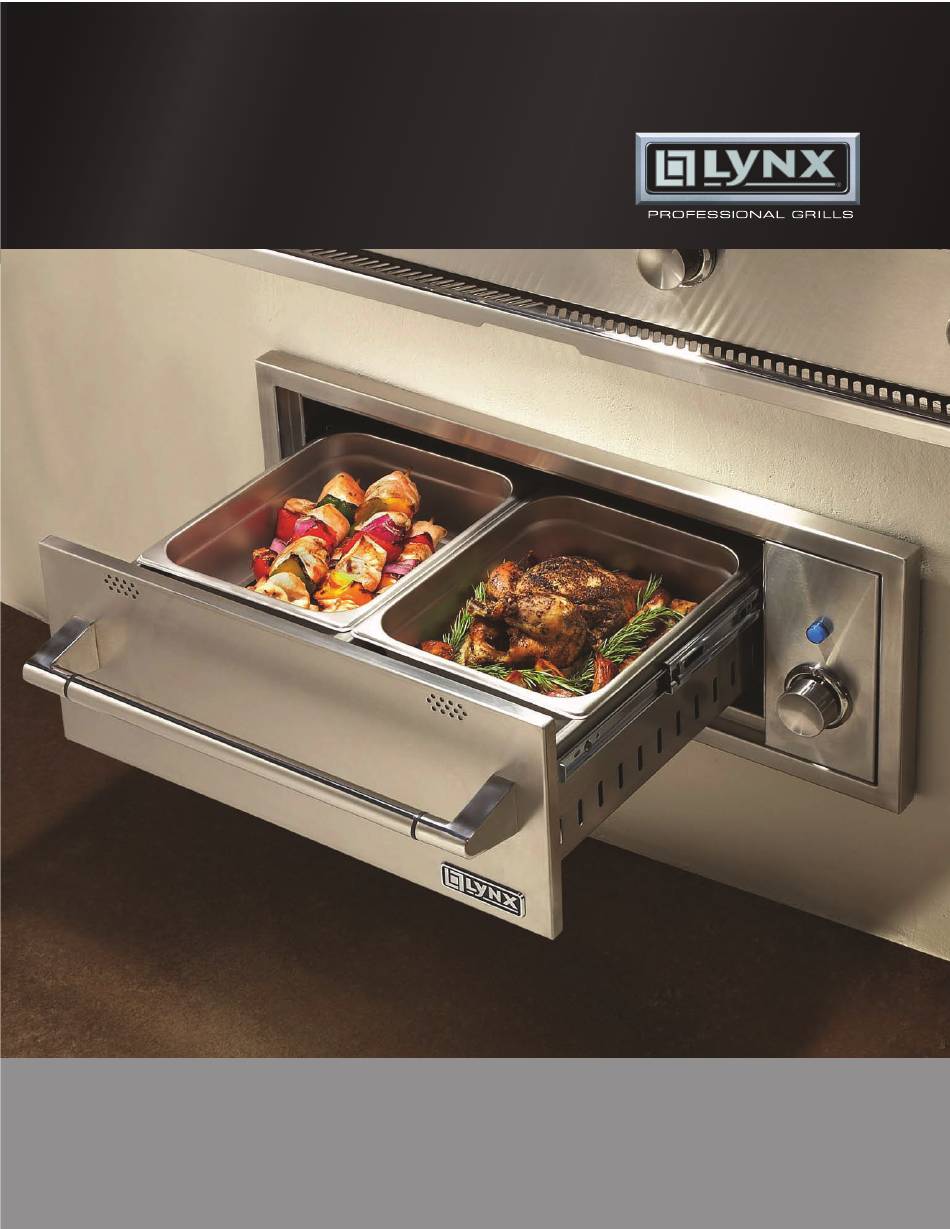

- Page 1 MAKE THE MOST OF YOUR L30WD-1 (Pictured) L42CC-1 Warming Drawer / Warming Drawer Cabinet CARE & USE/INSTALLATION LCS30 COCKTAIL STATION CARE & USE/INSTALLATION...
- Page 2 Important Safety Instructions / Consignes de sécurité importantes WARNING: AVERTISSEMENT Read this manual carefully and completely before Lisez attentivement et entièrement ce manuel using your warming drawer to reduce the risk of: avant d'utiliser votre tiroir chauff ant afi n de •...
- Page 3 Contact Lynx Customer Service at 1-888-289-5969 Tout entretien doit être eff ectué par une agence de service 22. Save these instructions for future reference. agréée. Contactez le service client Lynx au 1-888-289-5969 22. Conservez ces instructions pour référence future. L30WD/L42CC Use/Install Manual...
-
Page 4: Electrical Information
10. Do not operate the warming drawer with a damaged l'appareil ou s'il a été endommagé de quelque manière cord, plug or after the appliance malfunctions, or que ce soit. Contactez le service client Lynx pour les has been damaged in any manner. Contact Lynx réparations. 1-888-289-5969 Customer Service for repairs. - Page 5 Electrical Information WARNING: ELECTRICAL SHOCK HAZARD AVERTISSEMENT : RISQUE DE CHOC ÉLECTRIQUE Cet appareil est équipé d'un cordon d'alimentation à This appliance is equipped with a 3-prong power 3 broches avec une fi che de mise à la terre pour votre cord with a grounding plug for your protection protection contre les risques d'électrocution et doit être against shock hazard and should be plugged...
-
Page 6: Top View
L30WD Dimensions TOP VIEW 21-1/8” (53.7 cm) 20” (50.8cm) 28-1/4” (71.8 cm) 30” (76.2 cm) 23-5/8” (60.0 cm) 4-5/8” (11.7 cm) SIDE VIEW 20-1/2” (52.1 cm) 21-1/8” (53.7 cm) 17-1/2” (44.5 cm) 20” (50.8 cm) 15/16” (0.9 cm) 9-3/4” (24.8 cm) 15/16”... - Page 7 Installing the Warming Drawer - L30WD Cutout Dimensions Model (Width) (Height (Depth) L30WD 28-1/2” 10” 20-1/2” 11-1/2” Typical Island Installation L30WD-1 Provide a 10” x 28 ½” cutout to the front of the island. 2. Provide support beams using metal studs. 3.
- Page 8 L42CC Dimensions 26-3/16” (66.5 cm) TOP VIEW 24-9/16” (62.4 cm) 41-3/4” 40-1/8” (106.0 cm) (101.9 cm) SIDE VIEW 26-3/16” (66.5 cm) 17-1/2” (44.5 cm) 24-9/16” (62.4 cm) 19” (48.3 cm) FRONT VIEW 41-3/4” (106.0 cm) 11-1/2” (29.2 cm) 21” (53.3 cm) 9-5/16”...
- Page 9 Installing the Warming Drawer w/Cabinet L42CC Cutout Dimensions Model (Width) (Height (Depth) L42CC 40-1/4” 19-3/8” 24-3/4” 21” 120 V Electric Outlet Needed Typical Island Installation L42CC Provide a 19 3/8” x 40 ¼” cutout to the front of the island. 2.
-
Page 10: Before Using Your Appliance
Before Using Your Appliance All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have remained from the manufacturing process. Before using, clean the drawer thoroughly with hot, soapy water. There may be some burn off and odors on fi... -
Page 11: Cleaning And Maintenance
Part of the appeal of your Lynx Accesory is the fine grain finish. When removing stubborn stains: • Do not use metallic abrasives and always rub in the direction of the grain. • Some household cleaning products are not suitable for stainless steel; be sure to read the label before using on your Lynx Accesory. -
Page 12: Cleaning Chart
Cleaning and Maintenance Cleaning Chart Material Recommendations Drawer interior (stainless steel) Use dish detergent. Wash, rinse well and dry. For hard water spots or scales, use white vinegar. Apply with a sponge or cloth, rinse, and dry. Heat Discoloration / Corrosion: Clean with BarKeeper’s Friend®... -
Page 13: Contacting Customer Care
2 WIRE GROUNDED SINGLE PHASE For warranty service, contact Lynx Customer Care for an authorized service agent near you by calling (888) 289-5969 or online at www.lynxgrills.com. Your satisfaction is of the utmost importance to us. If a problem cannot be resolved to your... -
Page 14: Lynx Limited Warranty
No one has the authority to add to or vary Lynx’s regular use. This warranty is limited to the replacement of warranty, or to create for Lynx any other obligation or the defective parts, with the owner paying all other cost liability in connection with the sale or use of its products. -
Page 15: Lynx Common Area Limited Warranty
Display models are sold “as is”. If you have purchased After the 90 day period Lynx will sell parts to the holder of a display model, please be advised that it is sold “as is”... - Page 16 Lynx Grills, Inc 66201 Hwy 82 East Greenwood, MS 38930 (888) 289-5969 www,lunxgrills.com 31949 Rev G (011524)
