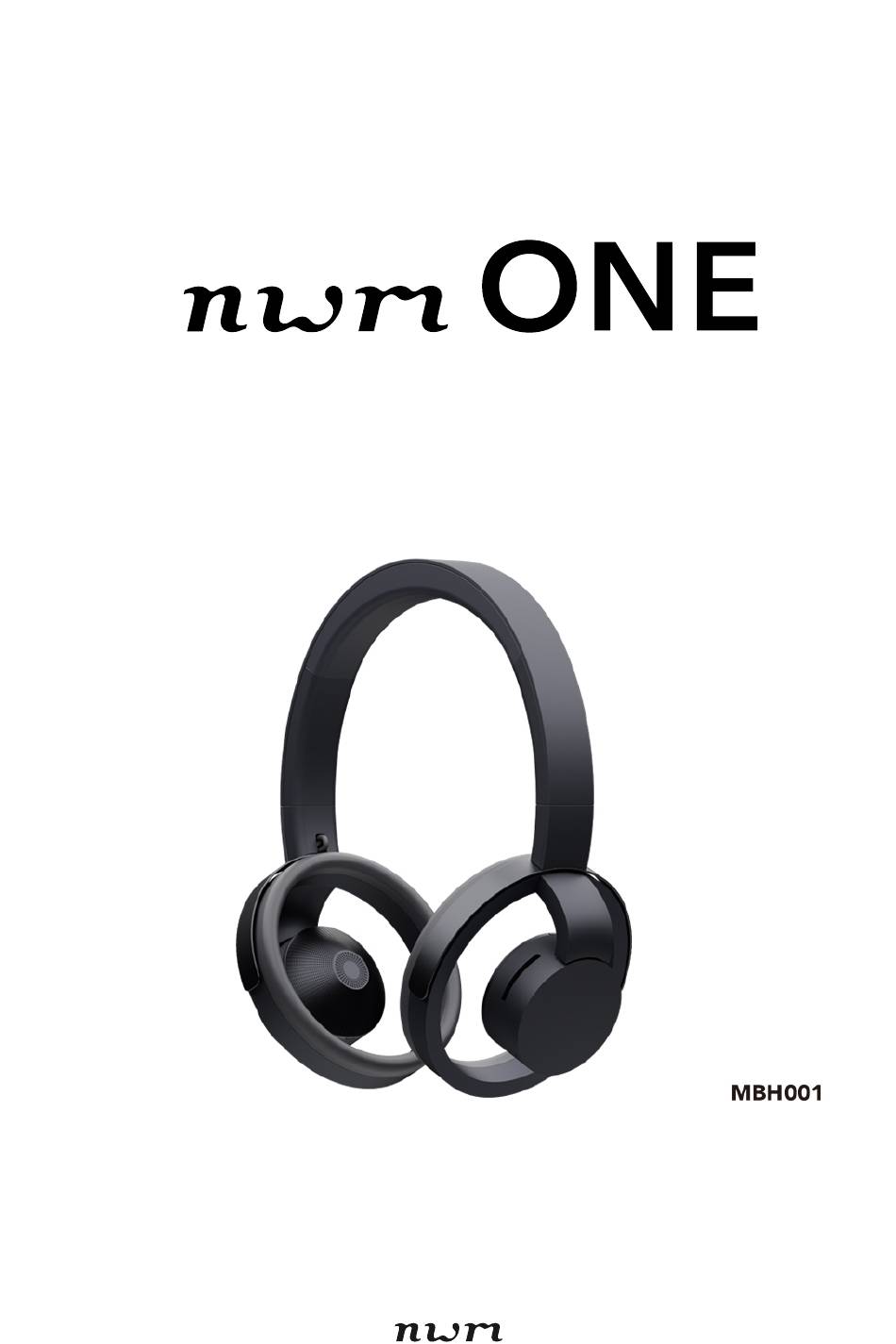

  • Page 1 wireless on-ear speakers Online Instruction Manual...

  • Page 2: Table Of Contents

    Listening to music ................ 21 Calling ..................23 Using the voice assistant function ..........26 nwm Connect App ..............29 Operations available with the nwm Connect app ......29 Download the nwm Connect app ..........30 Troubleshooting ............... 31 Troubleshooting ................31 How to reset .................
  • Page 3 Main specifications ..............41 Main specifications ............... 41 – 3 –...

  • Page 4: Introduction

    Introduction Package contents (1) Main unit (2) USB cable (USB Type-C - USB Type-C) ® – 4 –...

  • Page 5: Part Names

    Part names 1: Headband 2: Sliders 3: Left/Right label 4: Microphone 5: Status indicator – 5 –...

  • Page 6: Turning Power On/Off

    6: Multifunction button 7: (+) button 8: (-) button 9: USB Type-C connector 10: Speaker 11: Ear pad Turning power on/off How to turn the power on 1. While the power is off, press and hold the multifunction button for approximately 2 seconds until the status indicator lights.
  • Page 7 In addition, the auto power off function can be set for when there is no input (music playback, calls, etc.) for a certain period of time while connected to a device. Set it using the dedicated nwm Connect app. (This function is turned off in the factory default state.) For details, see “nwm Connect App.”...

  • Page 8: Wearing

    Wearing This product is an open-ear type. Fit it so that the speaker part comes over the ear canal. 1. Before fitting it, check for the L and R (left and right) sides of the product. – 8 –...
  • Page 9 2. Extend the sliders fully. 3. Fit it so that the ears are inside the ear pads. – 9 –...
  • Page 10 4. Adjust the sliders so that the headband fits onto your head. 5. Adjust the left and right units to match the angle of your ears. The units can only be adjusted in the directions shown in the figure. Beware that applying excessive force in the opposite directions may cause damage.

  • Page 11: Status Indicator Display

    Slow green blinking (default setting) Charging. Lit green (default setting) Charging completed. The color of the status indicator during charging can be changed from green using the dedicated nwm Connect app. For details, see “nwm Connect App.” nwm Connect App – 11 –...

  • Page 12: How To Charge

    How to charge Charging Before using the product for the first time, charge it using the included USB cable. 1. With the power turned off, connect the included USB cable to the USB connector of the product, and the other end of the cable to the USB port of a PC or similar device. The status indicator on the product will slowly blink in green.
  • Page 13 2. When charging is completed, disconnect the USB cable. When the light remains on, charging is complete. Charging takes approximately 1.5 hours to complete. When the remaining battery power becomes low, the status indicator lights up in orange, and a notification tone is emitted to notify you.

  • Page 14: How To Connect

    How to connect Pairing To connect the product to a Bluetooth-compatible device, it is necessary to first perform the pairing operation. This means that using the same Bluetooth device at a later date will not require pairing operations again. To pair with subsequent Bluetooth devices, or to switch between connected devices, see “Re-pairing.”...

  • Page 15: Re-Pairing

    4. When [nwm MBH001] is displayed on the screen of the device to be connected, select Pairing is complete when a notification tone is emitted from the product. l If [nwm MBH001] is not displayed on the screen of the device to be connected, repeat this procedure from step 1.
  • Page 16 2. Press and hold the multifunction button on the product for approximately 5 seconds. You will hear a shutdown tone once after pressing and holding the multifunction button for approximately 2 seconds, but just continue pressing until the state switches from power-on to pairing mode.

  • Page 17: Connecting To Two Devices Simultaneously (Multipoint Connec- Tion)

    When the connection is lost, a notification tone will sound. 2. In the Bluetooth settings screen of the new device to be connected, select [nwm MBH001]. When the connection is complete, a notification tone will sound. Connecting to two devices simultaneously (mul-...

  • Page 18: Connecting To Auracast

    3. When you hear the sound, release the multifunction button. The status indicator will blink red and blue alternately and the product will enter pairing mode. When entering pairing mode, a notification tone sounds. Next, perform pairing as described in step 2 onward in “How to pair.” If the product does not switch to pairing mode despite pressing and holding the multi- function button, there may not be a device that can be connected in the surroundings.

  • Page 19: Connecting The Usb Cable

    Switching to streaming mode 1. Turn on the power of the product. How to turn the power on 2. Press the multifunction button on the product three times. The startup tone upon switching to Auracast streaming mode is heard, and the status indicator slowly blinks twice in blue.
  • Page 20 1. Connect the included USB cable to the USB connector of the product, and the other end of the cable to the USB port of the device to be connected. 2. Turn on the power of the product. How to turn the power on If the power is off, it cannot be used.

  • Page 21: How To Use

    How to use Listening to music Operation will differ depending on the connected device. Also check the instruction manual for the device to be connected. 1. Turn on the power of the product. How to turn the power on 2. Put on the product. Wearing 3.
  • Page 22 4. Operate with the buttons on the product. Multifunction button operation Details Multifunction but- Press once Play/Pause Press twice Go to the next track or chapter Press three times Return to the previous track or chapter (+) button Press once Increase volume (-) button Press once...

  • Page 23: Calling

    Calling Operation will differ depending on the connected device. Also check the instruction manual for the device to be connected. 1. Turn on the power of the product. How to turn the power on 2. Put on the product. Wearing 3.
  • Page 24 4. Operate with the buttons on the product. ■ When connecting via Bluetooth Button operation Operation details Multifunction but- Press once Switches to the ongoing call status when receiving an incoming call Toggles microphone mute on/off each time it is clicked during a call.
  • Page 25 Be sure to check the product when putting it on before use. Using the nwm Connect app, the “Magic Focus Voice” function can be set to on or off. For details, see “nwm Connect app”. nwm Connect App <Note>...

  • Page 26: Using The Voice Assistant Function

    Using the voice assistant function Voice control can be carried out using the microphone of the product. Using the Google app Use the Google app, included with Android™ smartphones and devices, for voice opera- tions. 1. Enable the Google app. On Android™...
  • Page 27 4. Press the multifunction button on the product once, then press and hold it once more. If the interval between pressing the button is too long, the product may not be able to recog- nize the operations, so press it in quick succession. Start the Google app, and the start-up sound is heard.
  • Page 28 4. Press the multifunction button on the product once, then press and hold it once more. If the interval between pressing the button is too long, the product may not be able to recog- nize the operations, so press it in quick succession. Start Siri, and the start-up sound is heard.

  • Page 29: Nwm Connect App

    Connect App Operations available with the nwm Connect app This product supports the nwm Connect app. Using this app enables a number of useful functions. Main functions When this product is connected via Bluetooth to a smartphone or tablet with this app installed, the following functions can be used.

  • Page 30: Download The Nwm Connect App

    Download the nwm Connect app Download the nwm Connect app from the Google Play Store or the App Store, and install it on your smartphone or tablet. For details of the nwm Connect app, see the following URL: https://www.nwm.global/en/app nwm Connect After installation has completed, start the nwm Connect app.

  • Page 31: Troubleshooting

    Troubleshooting Troubleshooting Ensure you read the instructions of the device to connect. Power does not turn on. l Charge the product. l Try resetting the product. Pairing is not possible. l Keep the distance between this product and the Bluetooth device within 1 m. l Delete the pairing information of the product registered on the Bluetooth-compatible device, then perform pairing with the product again.
  • Page 32 l Check that the product is being worn correctly. If the L and R (left and right) sides are put on in the opposite way around, the microphone pickup direction will be changed, and the other party may not be able to hear your voice. Wearing I can’t hear the other person’s voice/the other person’s voice is too small.
  • Page 33 l Charge this product in a location that is away from direct sunlight and is well ventila- ted (5°C/41°F to 40°C/104°F). – 33 –...

  • Page 34: How To Reset

    How to reset If the product does not turn on or off, if the Bluetooth connection cannot be made or canceled, or if there is any other problem with the product’s operation, reset the product. 1. Turn on the power of the product. How to turn the power on 2.
  • Page 35 The settings of the product are restored to the factory default settings, and all pairing informa- tion is deleted. When performing pairing again, delete the pairing information of the product “nwm MBH001” (factory default product name) from the device to be connected, then perform the pairing again.

  • Page 36: Notifications

    Notifications Precautions for use l Ensure you read the instruction manual of the device to connect. l NTT sonority, Inc. will in no way be held responsible if the memory of the device to connect is deleted. l When connecting, turn the volume on the connected device all the way down. Take care as the sound indicating that connection is complete may be loud.
  • Page 37 l Do not connect the USB connectors or cable if they have any water or foreign materials on them. Doing so may result in damage to the USB connector or USB cable such as corrosion, overheating, smoking, or fire, or in electric shock. l Ensure that the battery is recharged at least once every six months in order to preserve the built-in rechargeable battery.

  • Page 38: Bluetooth

    Bluetooth l Bluetooth wireless technology can communicate up to a distance of 10 m line of sight, however the effective communication range may differ depending on obstacles (such as human bodies, metal objects, or walls) or radio wave interference. l Radio waves generated by Bluetooth devices may affect the operation of devices such as electronic medical equipment.

  • Page 39: Trademarks

    Trademarks l The Bluetooth word mark and logo are registered trademarks belonging to Blue- ® tooth SIG, Inc. The Auracast™ word mark and logo are trademarks belonging to Bluetooth SIG, Inc. The use of these marks by NTT sonority, Inc. is under license. l Apple, iPhone, and Siri are trademarks of Apple Inc., registered in the U.S.

  • Page 40: Warranty

    Warranty The warranty period for this product is 12 months. Please see our website for details on the warranty conditions. * Consumers have legal rights based on domestic law that regulates the sale of con- sumer goods. These rights are not affected by this warranty. (Limited Warranty for –...
  • Page 41 Main specifications Main specifications Communication method: Bluetooth Standard Ver. 5.3 Output: Bluetooth Standard Power Class 1 Maximum communication distance: Line-of-sight distance, approx. 10 m *1 Usage frequency range: 2.4 GHz band (2.4000 GHz to 2.4835 GHz) *2 Modulation method: FHSS Supported Bluetooth profiles: A2DP, HFP, AVRCP, TMAP, PBP SBC, AAC, LC3, CVSD, mSBC...
  • Page 42 *The specifications above as well as the appearance may be changed without notice for the purposes of product improvement. – 42 –...
