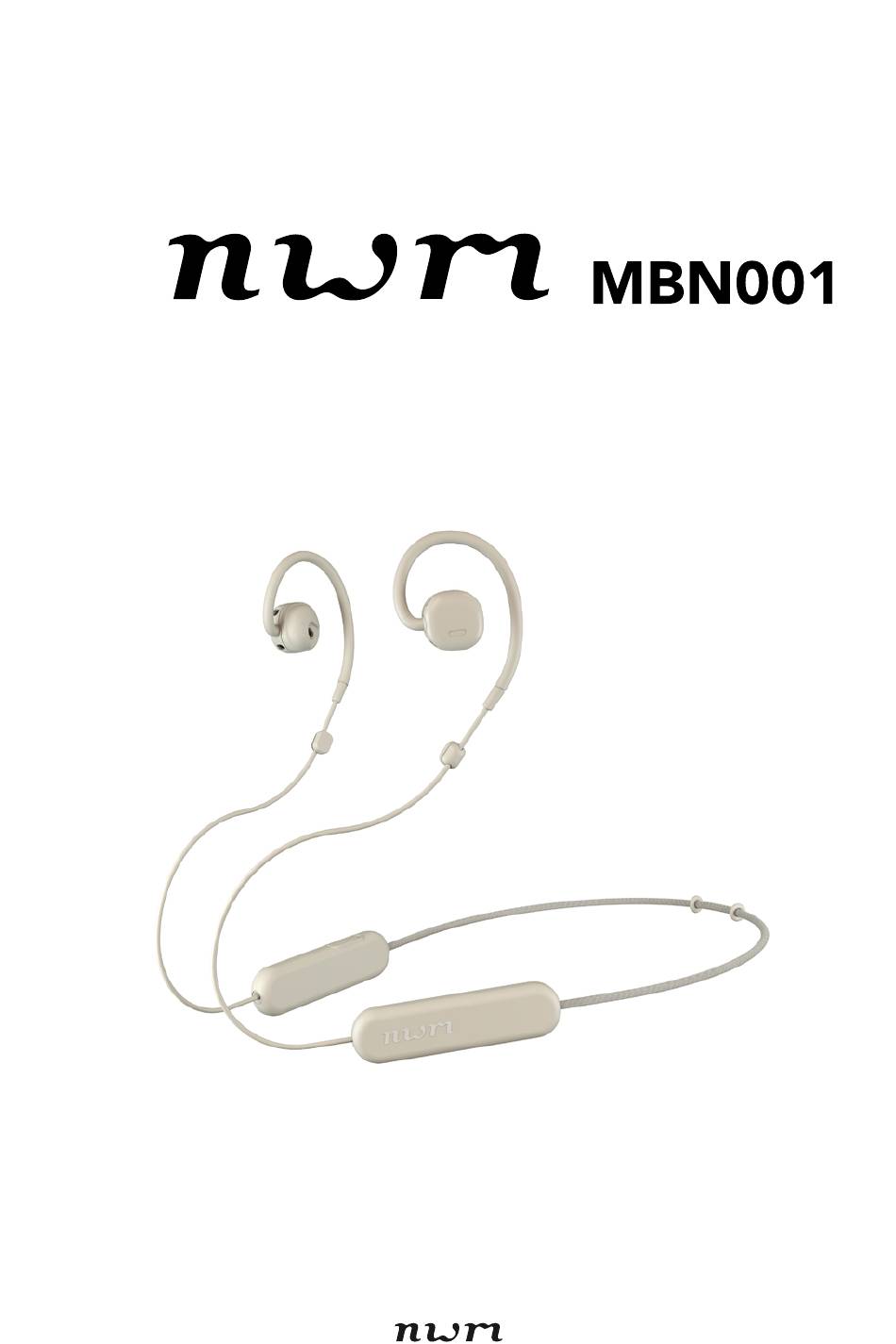

- Page 1 wireless on-ear speakers Online Instruction Manual...
-
Page 2: Table Of Contents
Listening to music ................ 19 Calling ..................21 Using the voice assistant function ..........23 nwm Connect App ..............25 Operations available with the nwm Connect app ......25 Download the nwm Connect app ..........25 Troubleshooting ............... 26 Troubleshooting ................26 How to reset ................. - Page 3 Main specifications ..............34 Main specifications ............... 34 – 3 –...
-
Page 4: Introduction
Introduction Package contents (1) Main unit (2) Cord clip (4) Quick start guide (3) USB cable (USB Type-A - USB Type-C ® (5) Safety guide x 2 – 4 –... -
Page 5: Part Names
Part names 1: Speaker 2: Left/right label 3: Sliders 4: Multifunction button 5: Status indicator 6: (-) button 7: (+) button 8: Microphone 9: USB connector cover, USB charging connector (USB Type-C ® 10: Stoppers – 5 –... -
Page 6: Stoppers
Stoppers This product includes stoppers to prevent the cord from slipping. They are already fitted to each end of the cord when the product is unpacked. Adjust them to the desired position for use. <Note> n Do not pull the stoppers and cord too hard. Doing so may cause a wire break, damage, or failure. - Page 7 How to turn the power off 1. While the power is on, press and hold the multifunction button until the status indica- tor lights. 2. When the status indicator lights, release the multifunction button. A shutdown tone sounds and the power turns off. Auto power off function This product includes an auto power off function.
-
Page 8: Wearing
Wearing These earphones are open-ear type. They are worn such that the speaker fits over the ear canal. Before putting them on, check which are the left and right earphones. Place the earphones over the ear from the front so that the speaker is above the ear canal. -
Page 9: Other Precautions
Other precautions The ear cushions are not consumables and cannot be detached. Attempting to detach them forcibly may result in a loss in the ability to retain waterproof functionality, causing damage or failure. If they are dirty, wipe off the dirt with a dry, soft cloth. When doing so, take care not to apply an excessive force. -
Page 10: Status Indicator Display
Status indicator display Color and pattern of status indicator Earphone status Slow light blue blinking In connection standby status. (Power will automatically turn off af- ter approximately 5 minutes) Blinks red and blue alternatively In pairing mode. Slow white blinking Connected to a device. -
Page 11: How To Charge
How to charge Charging Before using your earphones for the first time, charge them using the included USB cable. 1. Open the USB connector cover of the earphones. – 11 –... - Page 12 2. Connect one end (USB Type-C end: ①) of the included USB cable to the USB connec- tor of the earphones, and the other end (USB Type-A end: ②) to a USB port on a PC or similar device. The status indicator on the earphones will slowly blink in green. When the light remains on, charging is complete.
- Page 13 When the remaining battery is low, the status indicator will be slowly blink in red, and a notification tone will sound. * The charging time may vary depending on the temperature and usage frequency. <Note> n Ensure that you use the included USB cable when charging. Charging may not be possible if other than the included USB is used.
-
Page 14: How To Connect
How to connect Pairing Connecting these earphones to a Bluetooth device first requires that they be paired. This means that using the same Bluetooth device at a later date will not require pairing operations again. To pair with subsequent Bluetooth devices, or to switch between connected devices, see “Re-pairing.”... -
Page 15: Re-Pairing
3. Turn on the power of the Bluetooth device (device to be connected), open its Blue- tooth settings screen, and search for the earphones. 4. When [nwm MBN001] is displayed on the screen of the device to be connected, select When a notification tone sounds in the earphones, pairing is complete. - Page 16 Bluetooth connection. When the connection is lost, a notification tone will sound. 2. In the Bluetooth settings screen of the new device to be connected, select [nwm MBN001]. When the connection is complete, a notification tone will sound. – 16 –...
-
Page 17: Connecting To Two Devices Simultaneously (Multipoint Connec- Tion)
Connecting to two devices simultaneously (mul- tipoint connection) This product supports multipoint connection to two Bluetooth-compatible devices simul- taneously. While listening to music on one device, incoming phone calls on a second device can be picked up as-is. * Not all combinations of Bluetooth-compatible devices are guaranteed to work. How to set up a multipoint connection 1. - Page 18 <Note> n if you are unable to connect the devices, perform pairing again. n With a multipoint connection, up to two Bluetooth-compatible devices can be connected simultaneously. If pairing is performed with a third Bluetooth-compatible device while two devices are already connected, one of the two currently connected devices will be automati- cally disconnected.
-
Page 19: How To Use
How to use Listening to music Operation will differ depending on the connected device. Also check the instruction manual for the device to be connected. 1. Turn on the power of the earphones. How to turn the power on 2. Put the earphones on. Wearing 3. - Page 20 4. Operate with the buttons of the earphones. Multifunction button operation Details Multifunction button Press once Play/Pause (-) button Press once Reduce volume Press twice Return to the previous track or chapter (+) button Press once Increase volume Press twice Go to the next track or chapter *1 When you press and hold a button, the volume will increase or reduce continuously.
-
Page 21: Calling
Calling Operation will differ depending on the connected device. Also check the instruction manual for the device to be connected. 1. Turn on the power of the earphones. How to turn the power on 2. Put the earphones on. Wearing 3. - Page 22 4. Operate with the buttons of the earphones. Multifunction button operation Details Multifunction button Press once Puts the earphones in a call state when there is an incoming call Toggles microphone mute on/off each time it is clicked during a call.
-
Page 23: Using The Voice Assistant Function
Using the voice assistant function Use the microphone on the earphones for voice operation. Using the Google app Use the Google app, included with Android™ smartphones and devices, for voice opera- tions. 1. Enable the Google app. On Android™ OS smartphones, click “Settings,” then “Apps,” then select the gear icon dis- played on the upper right corner of the screen. - Page 24 1. Enable Siri. On your iPhone, go to “Settings,” then “Siri & Search,” then turn on “Press Side Button for Siri” and “Allow Siri When Locked.” The procedure above may differ depending on the OS version of your iPhone. For details, refer to the instruction manual for your iPhone.
-
Page 25: Nwm Connect App
* Functions and designs may be changed without notice. Download the nwm Connect app Download the nwm Connect app from the Google Play Store or the App Store, and install it on your smartphone or tablet. For details of the nwm Connect app, see the following URL: https://www.nwm.global/en/app... -
Page 26: Troubleshooting
Troubleshooting Troubleshooting Ensure you read the instructions of the device to connect. Power does not turn on. l Charge the product. l Try resetting the product. I am unable to pair the earphones. l Keep the distance between this product and the Bluetooth device within 1 m. l On the Bluetooth device, delete the pairing information for these earphones, then try pairing the earphones again. - Page 27 l Increase the volume on the connected device. l Check that the earphones and the device are connected with HFP (or a call connec- tion). l After pairing between the earphones and the device to be connected is deleted, try pairing again.
-
Page 28: How To Reset
How to reset If the product does not turn on or off, if the Bluetooth connection cannot be made or canceled, or if there is any other problem with the product’s operation, reset the product. 1. Connect the included USB cable to the USB connector of the earphones to switch to the charging state. -
Page 29: Notifications
Notifications Precautions for use l Ensure you read the instruction manual of the device to connect. l NTT sonority, Inc. will in no way be held responsible if the memory of the device to connect is deleted. l When connecting, turn the volume on the connected device all the way down. Take care as the sound indicating that connection is complete may be loud. - Page 30 l Do not connect the USB connectors or cable if they have any water or foreign materials on them. Doing so may result in damage to the USB connector or USB cable such as corrosion, overheating, smoking, or fire, or in electric shock. l Ensure that the battery is recharged at least once every six months in order to preserve the built-in rechargeable battery.
-
Page 31: Bluetooth
Bluetooth l Bluetooth wireless technology can communicate up to a distance of 10 m line of sight, however the effective communication range may differ depending on obstacles (such as human bodies, metal objects, or walls) or radio wave interference. l Radio waves generated by Bluetooth devices may affect the operation of devices such as electronic medical equipment. -
Page 32: Trademarks
Trademarks l The Bluetooth word mark and logos are registered trademarks owned by Bluetooth ® SIG, Inc. and any use of such marks by NTT Sonority is under license. Other trade- marks and trade names are those of their respective owners. l Apple, iPhone, and Siri are trademarks of Apple Inc., registered in the U.S. -
Page 33: Warranty
Warranty The warranty period for this product is 12 months. Please see our website for details on the warranty conditions. * Consumers have legal rights based on domestic law that regulates the sale of con- sumer goods. These rights are not affected by this warranty. (Limited Warranty for –... - Page 34 Main specifications Main specifications Communication method: Bluetooth Standard Ver. 5.3 Output: Bluetooth Standard Power Class 1 Maximum communication distance: Line-of-sight distance, approx. 10 m *1 Usage frequency range: 2.4 GHz band (2.4000 GHz to 2.4835 GHz) *2 Modulation method: FHSS Supported Bluetooth profiles: A2DP, HFP, AVRCP Supported CODEC:...
- Page 35 Accessories Cord clip USB cable (USB Type-A - USB Type-C ), 0.5 m ® Quick start guide Safety guide x 2 *1 Transmission distances are guidelines. Transmission distances may vary depending on the surrounding environment. *2 This product uses the 2.4 GHz frequency band. Interference from other wireless devices such as microwave ovens that use the 2.4 GHz band may cause interruptions in audio.
