  • Page 1 Data sheet Cisco public Cisco SM-X Based Layer 2 Switching Module © 2024 Cisco and/or its affiliates. All rights reserved. Page 1 of 12...
  • Page 2: Table Of Contents

    Cisco SM-X Layer2 EtherSwitch Service Module Software Ordering information Warranty information Cisco environmental sustainability Cisco and Partner Services for Console Services Cisco Capital For more information Document history © 2024 Cisco and/or its affiliates. All rights reserved. Page 2 of 12...
  • Page 3: Product Overview

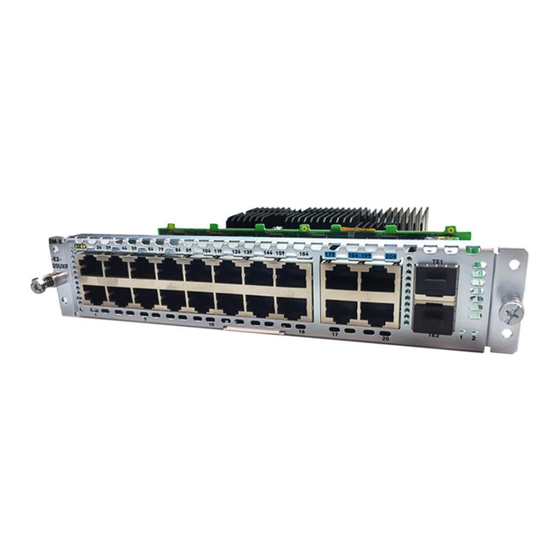

    Product overview The Cisco SM-X EtherSwitch Modules provides for an enterprise class line of features on the Cisco ISR 4000 series routers, greatly expanding the capabilities of the router by integrating industry-leading Layer 2 switching with feature sets that are built on the lines of those found in the Cisco Catalyst 9200 Series switches.
  • Page 4: Supported Models And Configurations

    Supported models and configurations Table 1 gives specifications of the Cisco SM-X EtherSwitch Service Modules. All Gigabit Ethernet ports support auto-negotiating 10/100/1000 Mbps. Based on the model up to 8-ports of 2.5G mGig support helps provide uplink connectivity to Access Points and Uplink Expansions, external Advanced 4G LTE and (future) 5G connections.
  • Page 5: Power Over Ethernet (Poe) Support

    LED lighting fixtures can draw up to 50W for routine operation. The SM-X EtherSwitch modules can support POE, POE+ and UPOE on any of the RJ45 copper ports (16xGiG + 4xmGiG or 40xGiG + 8xmGiG). All 22 or 48 copper ports support Power over Ethernet (PoE) - 15.4 W and PoE+ up to 30W.
  • Page 6: Security Feature Support On Sm-X Etherswitch Module

    Per-port power consumption control allows you to specify a maximum power setting on an individual ● port. The Cisco PoE MIBs provide proactive visibility into power usage and allow you to set different power - ● level thresholds. Cisco Discovery Protocol Version 2 allows the Cisco SM-X EtherSwitch Service Modules to negotiate a ●...
  • Page 7 MKA and MACsec are implemented following successful authentication using the 802.1x Extensible Authentication Protocol (EAP) framework. In Cisco Enhanced EtherSwitch Service Modules, both the user and down -link ports (links ● between the switch and endpoint devices such as a PC or IP phone) as well as the network and up-link ports can be secured using MACsec.
  • Page 8: Product Summary

    Product summary In summary, the Cisco SM-X Layer2 EtherSwitch Service Modules enable a higher level of control and security through the support of per port 802.1x and MACSec capabilities. Cisco SM-X EtherSwitch Service Modules also offer enhanced PoE power levels with the introduction of IEEE 802.3at PoE+, broadening the span of network equipment powered from the switch.
  • Page 9: Product Specifications

    Regulatory Compliance, Safety, EMC, Telecommunications, and Network Homologation When installed in a Cisco 4400 or 4300 Series ISR, the Cisco EtherSwitch Service Module does not change the standards (regulatory compliance, safety, EMC, telecom, or network homologation) of the router itself. For more information about these routers, please visit: https://www.cisco.com/c/en/us/products/collateral/routers/4000-...
  • Page 10: Cisco Sm-X Layer2 Etherswitch Service Module Software

    Cisco SM-X Layer2 EtherSwitch Service Module Software The Cisco SM-X Layer2 EtherSwitch Service Module is supported by default on the IOS -XE software running on the ISR4000 series routers. All configurable CLI for the module is supported on the IOS that runs on the router providing a single console for both the module and the router platform.
  • Page 11: Cisco And Partner Services For Console Services

    Cisco and Partner Services for Console Services Services from Cisco and our certified partners help you transform your network and data center helping you accelerate business innovation and growth. We have the expertise to create a clear, replicable, optimized footprint across technologies. Planning and design services align technology with your business goals and can increase deployment efficiency.
  • Page 12: Document History

    Added information on expected throughput when applying Table 5, How Cisco SM-X EtherSwitch June 28, 2024 L3 services to switched traffic Service Module addresses customer needs Printed in USA C78-743822-01 07/24 © 2024 Cisco and/or its affiliates. All rights reserved. Page 12 of 12...
