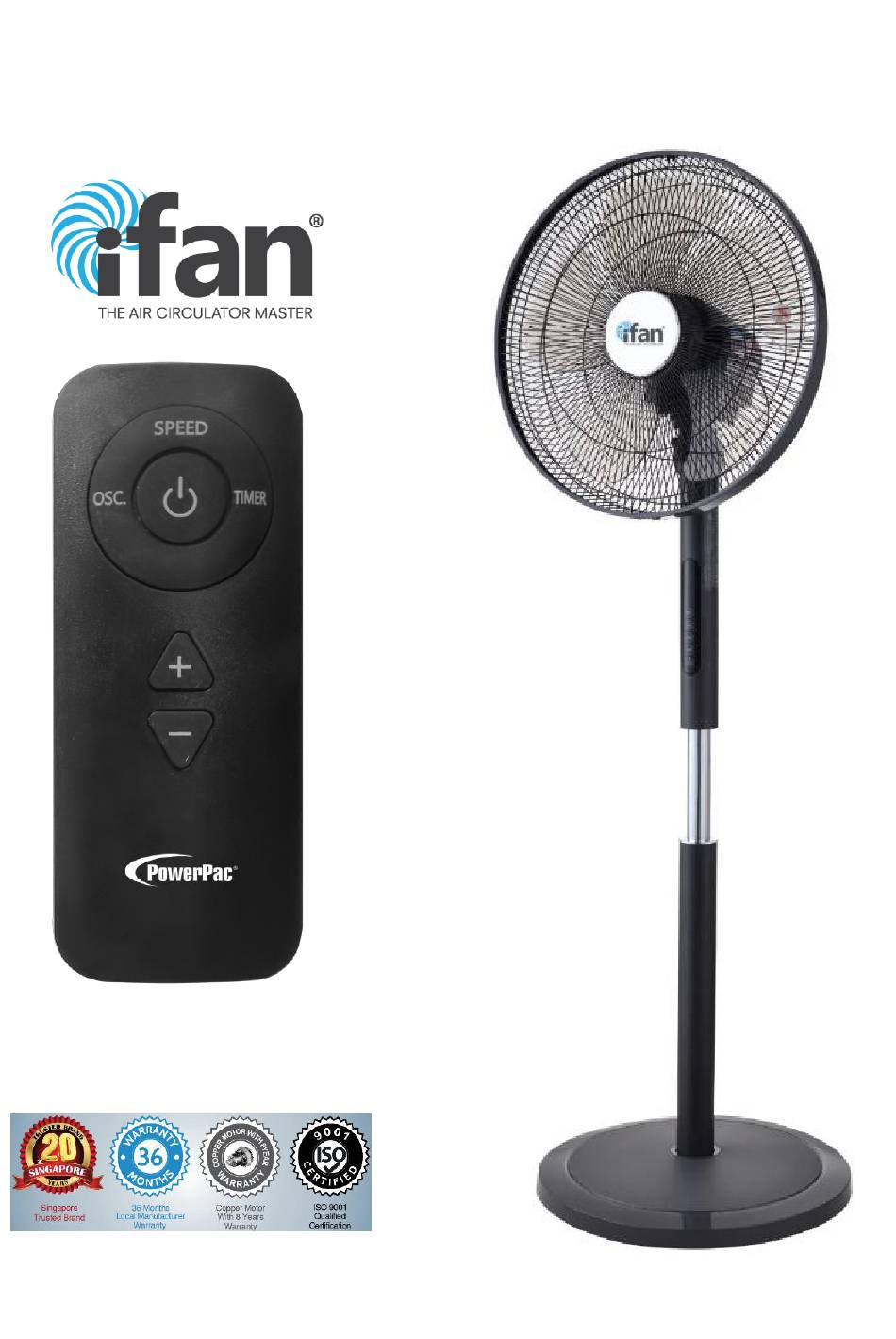

- Page 1 18” DC MOTOR STAND FAN WITH OSCILLATION & REMOTE CONTROL IF7468 Remote Control...
-
Page 2: List Of Components
Parts & Description LIST OF COMPONENTS ① Front Grille ② Grille Ring with Grille Clip ③ Blade Cap ④ Fan Blade ⑤ Guard Mounting Nut ⑥ Back Grille ⑦ Motor Shaft ⑧ Motor Shaft Pin ⑨ Fan Head ⑩ Fan Head Screw ⑪... - Page 3 ⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ① ⑩ ⑪ ⑬ ① Front Grille ⑫ ② Grille Ring with Grille Clip ③ Blade Cap ⑮ ④ Fan Blade ⑭ ⑤ Guard Mounting Nut ⑥ Back Grille ⑦ Motor Shaft ⑯...
-
Page 4: How To Assemble
HOW TO ASSEMBLE Warning: DO NOT operate the fan with any of its parts unassembled. The entire assembled unit works as a single appliance. The fan must only operate in the upright position. Any other position will be hazardous. 1. Unpack all parts from the package and place them on the floor. 2. - Page 5 5. Assemble the Back Grille and the Fan Blade on the Fan Head as described below: Holding the Motor Shaft Pin, unscrew the Blade Cap by turning clockwise & Guard Mounting Nut by turning anti-clockwise. ↻ Blade cap Turn clockwise to unscrew ③...
- Page 6 Secure the Fan Blade to the Motor Shaft by tightening the Blade Cap anti- clockwise. ↺ Turn anti-clockwise to screw Ensuring the logo at the front of the Front Grille is positioned properly, attach the Front Grille to the Back Grille and secure them by turning the screw of the Grille Ring Clip at the bottom of the Grille Ring.
- Page 7 Warnings ATTENTION : Read this booklet carefully as it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference. The following basic precautions should always be followed when using electrical appliances: 1. Read all instructions before using the appliance. The Appliance 2.
- Page 8 9. The packing materials (plastic bags, expanded polystyrene, etc.) must be kept out of the reach of children or disabled persons since they represent potential sources of danger. Location 10. This appliance is NOT suitable to be used or stored near heat sources (open flame, ovens, heaters, stoves, etc.) and/or in an explosive environment (in the presence of flammable substances such as gas, vapour, mist or dust, in atmospheric conditions when, after ignition, the combustion is spread in the air).
- Page 9 e. To turn ON : Attach the plug of the power cable into the wall socket and switch the wall switch ON. Press the POWER Button on the Control Panel or the Remote Control. The appliance operates at Fan Speed I (slowest). Press the SPEED Button and the + / –...
- Page 10 20. This appliance is NOT intended for commercial use but to be used in households and similar applications, such as: Staff kitchen areas in shops, offices and other working environments; Dormitories; hotels, motels and other residential environments; Bed and breakfast type environments.
- Page 11 HOW TO USE To turn ON : 1. Attach the plug of the power cable into the wall socket and switch the wall switch ON. Press the POWER Button on the Control Panel or the Remote Control. The appliance operates at Fan Speed I (slowest). Press the SPEED Button and the + / –...
-
Page 12: How To Clean
HOW TO CLEAN Switch the wall switch OFF and unplug the power cable from the wall socket. Wait until the Fan Blade has completely stopped rotating and for the appliance to cool down completely. 1. To disassemble a. Loosen the Grille Ring Clip screw and detach the Front Grille. b. -
Page 13: Specification
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Remote Control SPECIFICATION MODEL IF7468 FAN DIAMETER 18 inch (46 cm) 200 – 240 V ~ RATED VOLTAGE 50 – 60 Hz... - Page 14 …..WARRANTY….. Warranty Conditions 1. This warranty provides against defective materials and manufacturing faults throughout for two years from the date of purchase of the appliance covering the Motor only, subject to correct usage of the appliance. The warranty on the Compressor is 10 years;...
- Page 15 Please complete the on-line registration warranty form available on our website. There is no further requirement to send us any hard copy as part of our efforts to save the environment. In accordance with the terms and conditions of this limited warranty as stated above, PowerPac Electrical Pte Ltd, at its expense shall provide free services for the appliance within the warranty period from its date of purchase from our Authorised dealers.
