Manual
Diaz B.I. 230V motor
Introduction
Tilt
Tilt

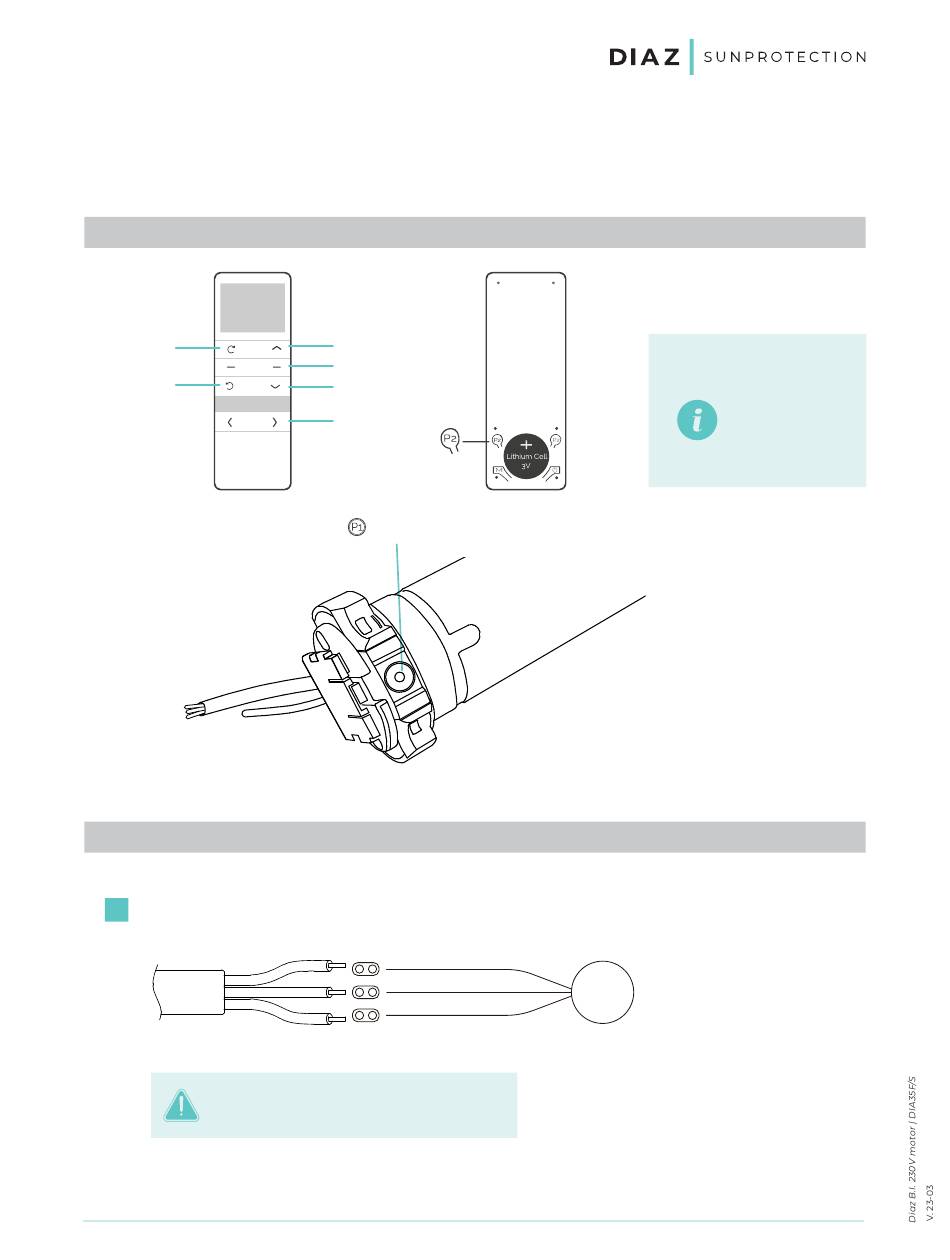

Quick start guide
Connecting the power
1
230V AC
Attention! Do not connect multiple
motors simultaneously, but one by one.
www.diaz.be
Up
Stop
Down
Choose
channel
Programming button
BLUE: NEUTRAL
BROWN: PHASE
YELLOW/GREEN: GROUND
If your motor
does not respond
as described
in this manual,
please proceed to
troubleshooting
(pg 3).
MOTOR
1
