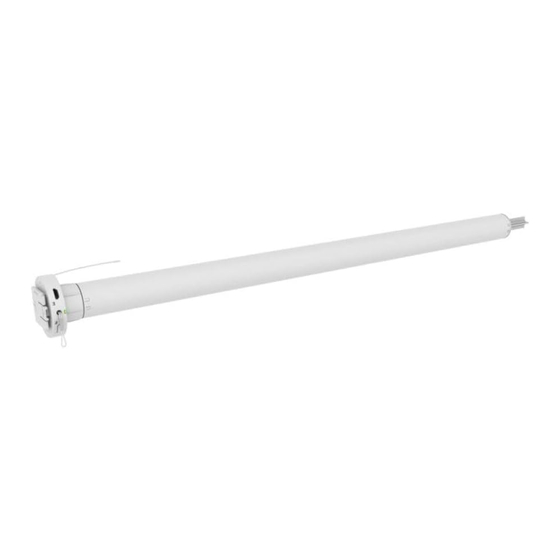

Coulisse 12V Pull battery motor
Introduction
Choose
channel
Quick start guide
1
Activate the motor
www.diaz.be
Channel
P2
Programming button
If your motor
does not respond
as described
in this manual,
please proceed to
(pg 3).
To activate the programming mode,
push 1x on the programming button.
Indicator red:
Indicator green:
Battery level = low
Charging
Activate the motor
by charging it
using a micro
USB cable.
Green light:
Charging complete
1
