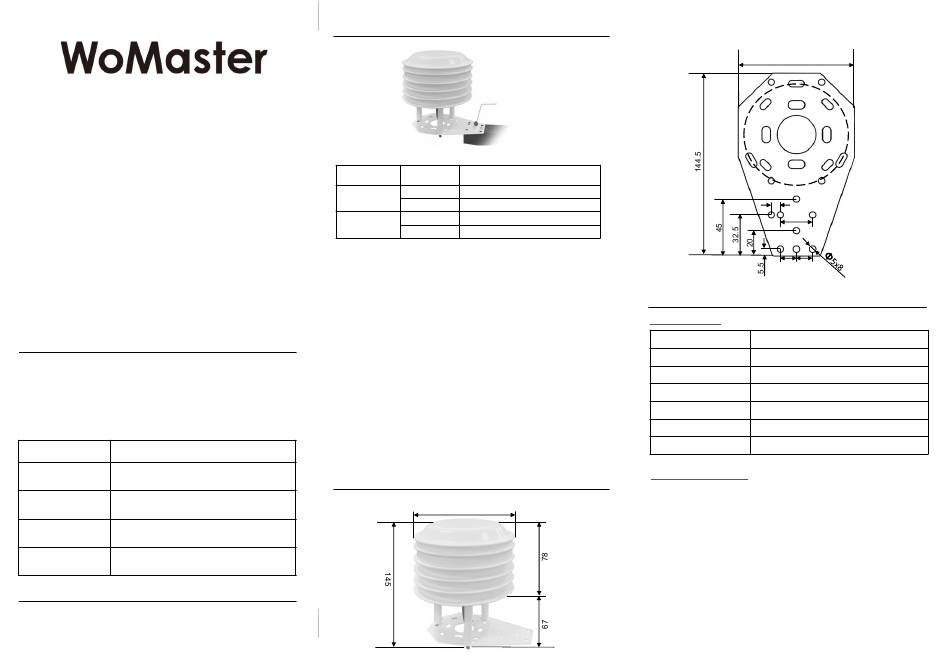

WoMaster ES105M Series Quick Installation Manual

Quick Installation Guide
Outdoor Multiple Air Sensor
ES105M
www.womaster.eu
・Overview
The ES105M series is an intergraded outdoor sensor unit for
multiple gas sensors. The monitored data is output through RS-485
interface by Modbus protocol. The ES105M sensor unit accepts
10~30Vdc power input voltage and is protected by the IP65 grade
Anti-U/V lightweight ABS louver radiation shield. With the optional
NBIoT/WiFi gateway WR222 or LoRa end node LC144, the data can
be monitor on the cloud platform.
Model Name Description
ES105M-O3-H2S- Outdoor O3/H2S/CO Multi Air Sensor
CO RS485 Modbus, 10-30V Power
ES105M-O3-CO- Outdoor O3/CO/NO2 Multi Air Sensor
NO2 RS485 Modbus, 10-30V Power
Outdoor CH4/H2S Multi Air Sensor RS485
ES105M-CH4-H2S
Modbus, 10-30V Power
Outdoor TVOC-SO2-NO2 Multi Air Sensor
ES105M-TVOC-
SO2-NO2 RS485 Modbus, 10-30V Power
・Package Checklist
1 x Product Unit
•
1 x Quick Installation Guide
•
Optional Accessory (for detailed information please refer to the
Datasheet or Contact your Sales Representative)
・Installation
Bracket
installation
Cable Wiring
Line Color Description
Brown Power supply is positive DC24V
Power
Black Power supply negative
Green/Yellow RS485-A
Communication
Blue RS485-B
Wiring The RS485 Signals
1) Connect the cable to the device, connect the yellow wire to
RS485-A, and connect the blue wire to RS485-B.
2) When wiring the RS485 cable, pay attention to A/B the two lines
cannot be reversed.
3) Make sure the addresses of multiple devices on the Modbus
setting do not conflict.
*Note: When polling, the RS485 Modbus RTU needs polling
interval time(≥300mS)
Wiring The Power Input
DC 24V (Range 10 ~30V)
1) Connect the power cable to the device. Brown cable is the
positive pole of the power supply and black cable is the negative
pole of the power supply.
2) Connect the power wires to suitable DC Switching type power
supply. The input range, please check the label information
attached on the cable
*Note: After the sensor is powered on, it requires a warm-up
time(≥5 minutes) to stabilize the measurement data
・Appearance
Main Body
140
Mount Kit
・Communication Agreement
Basic Parameter
Parameter
Protocol
Data Bits
Parity Bit
Stop Bit
Error Detection Code
Baud Rate
Data Format Definition
Adopt Modbus-RTU communication protocol, the format is as follows:
Initial structure ≥ 4 bytes of time
Unit: mm
Address code = 1 byte
Function code = 1 byte
Data area = N bytes
Error check = 16-bit CRC code
End structure ≥ 4 bytes of time
Address code: The address of the transmitter，and will be the only
(Factory Default 0x01) in the communication net.
Function code: The order function orders from host computer.
Data area: Data area is the specific communication data, attention16bits
data high byte in front!
90
7
25
12.5 12.5
Description
Modbus RTU
8 bit
None
1 bit
CRC
2400bps/4800bps/9600bps, Default: 9600bps
