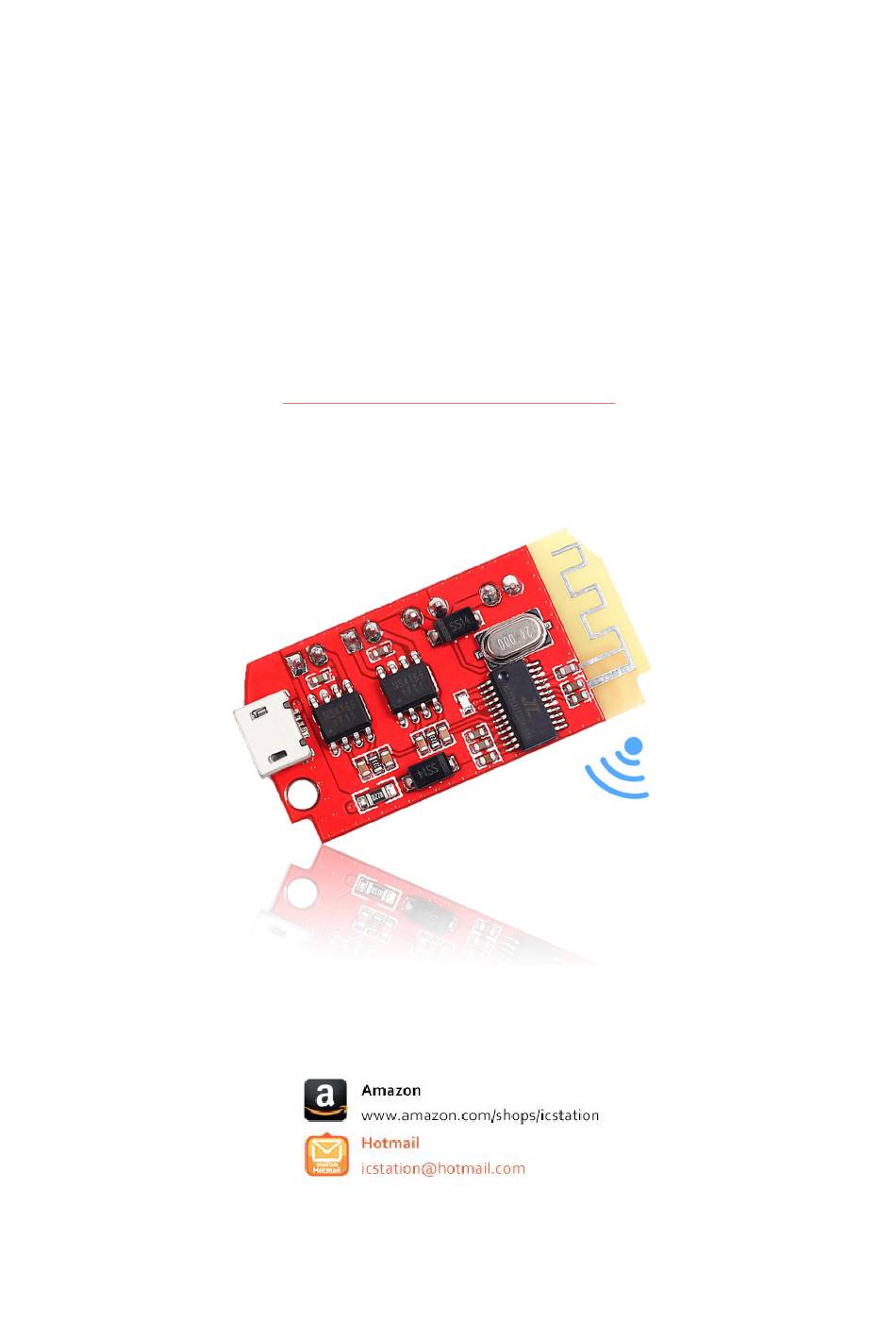

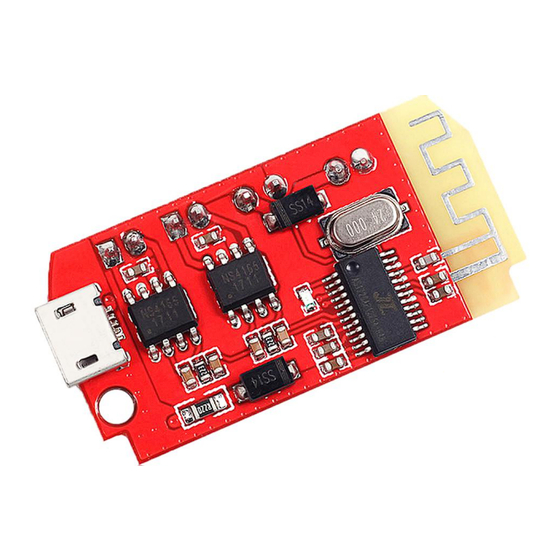

- Page 1 ICStation Bluetooth Receiver Board 2x5W Stereo Audio Amplifier (ASIN:B0796TJ9FT) http://www.amazon.com/dp/B0796TJ9FT I C S T A T I O N...
- Page 2 (3ohm&5W or 4 ohm&10W are recommended) You need a charge protection board You need a charging protection board when making a wireless speaker. Recommend to use with the Icstation TP4056 Micro USB 5V 1A Charging Board (ASIN: B01LHD9D7E) This protection board is sold separately.
- Page 3 Package list Amplifier board + 3 wires (Power wire*1 Speakers wires*2) CONTACT US If there is any missing cable when you receive it, PLEASE ASAP. We provide FREE REPLACEMENT ITEM. Wiring How to use 1) Open the Bluetooth function of your cell phone or other devices with Bluetooth function(such as laptops, tablet PCs, etc.).
- Page 4 Attention ► The Bluetooth audio receiver board already has dual 5W power amplifier circuit. It doesn’t need to connect with extra power amplifier. The output of dual amplifiers can not be connected in parallel or connected to the negative electrode, otherwise the power amplifier chip will be damaged.
