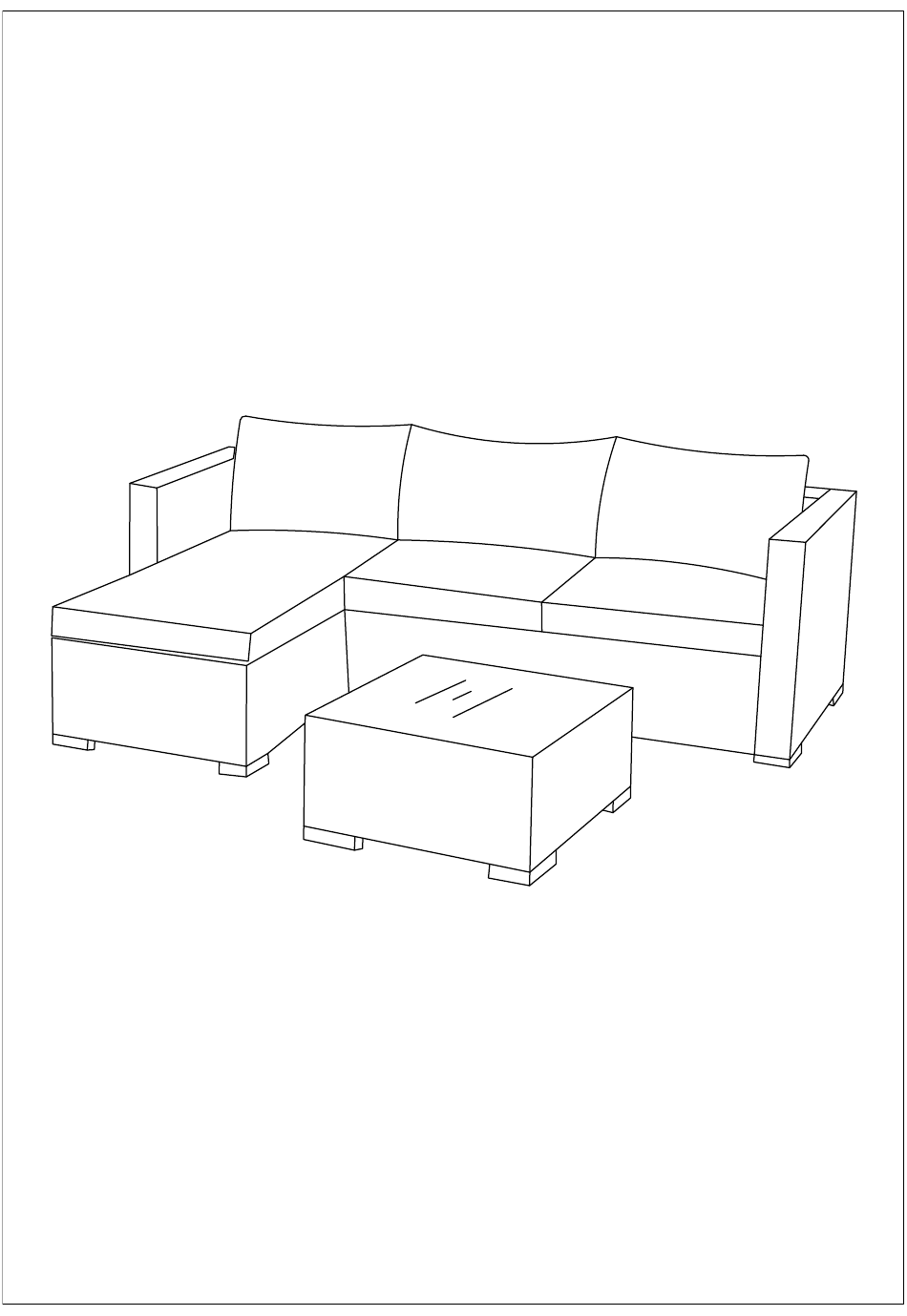

Summary of Contents for Shintenchi GF
- Page 2 GF-C :Right sofa arm :Left sofa arm hole :Tea table :Reclining chair back hole Screw Box :Footrest part1 2pcs Back cotton Pillow 2pcs...
- Page 3 GF-D (There are two holes on this side.) ( D and I plates are different only on one side, there are two holes on the inner side of the D plate, and four holes on the inner side of the I plate.)
-
Page 4: Assembly Instruction
Assembly Instruction 1. Please check the carton and Packing materials before disposing, to ensure that you have all the parts for this products 2. Do not tighten all screws completely until assemble is completed hole :Right sofa arm :Left sofa arm (There are two holes on this side.) hole ( D and I plates are different only on one side,... - Page 5 (Four holes on the outside of the side panels.) :Long side piece :Short side piece 1 2pcs (There are two holes on this side.) (Four holes on the inside of the side panels.) :Short side piece 2 :Double sofa backrest (There are four holes on this side.) hole (There is only...
- Page 6 hole :Tea table :Footrest part1 2pcs :Footrest part2 2pcs...
- Page 7 S: Screw M6*50mm Q: Sofa Feet R: Sofa Feet T: Screw M6*35mm 24pcs 3pcs 13pcs 28pcs V: Shim 16*6.4* 1 W: Nut M6 X: Screw M6*25mm Y: Shim 11*6.2* 1 76pcs 24pcs 32pcs 32pcs Z: Adjustable Screw Inner hexagon spanner Open spanner Plastic parts 2pcs...
- Page 8 Lounger Please take out the parts: A,C,D,E,F,G...
- Page 11 Double sofa Please take out the parts: B,E,J,H,I...
- Page 13 Tea table Please take out the parts: K,M,N...
