Related Manuals for Shintenchi PUY-GR-LLC
Summary of Contents for Shintenchi PUY-GR-LLC

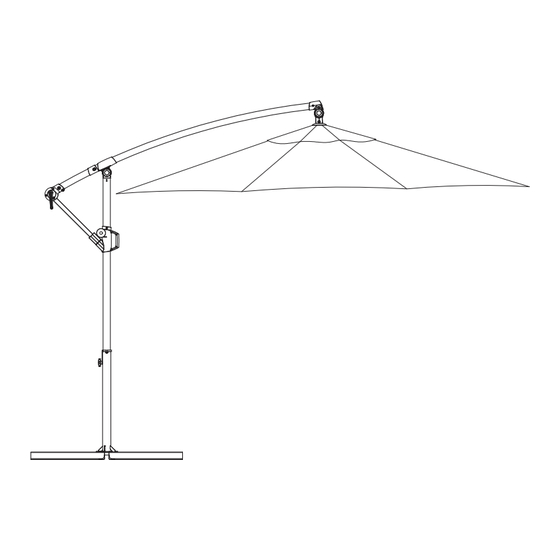

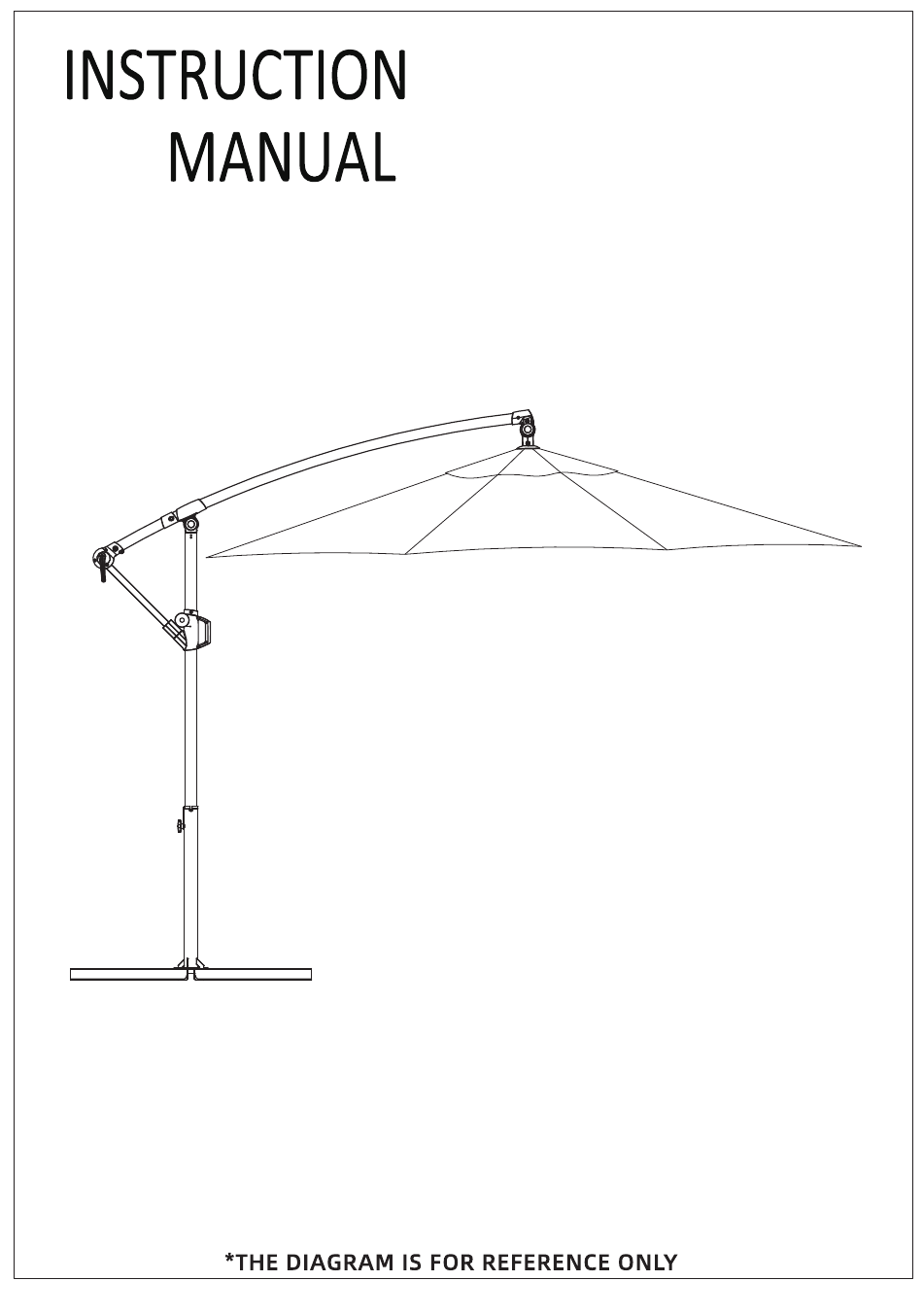

- Page 1 PUY-GR-LLC/PUY-CW-LLC/PUY-KK-LLC/PUY-AB-LLC...
- Page 2 Thank you for shopping with us! We appreciate your purchase and are ready to be at your service! If you find parts missing, broken, or hard to put together or when you are not satisfied or have any valuable suggestions, please do not hesitate to contact us first! We will definitely give you a satisfactory solution or answer then! CSsince1987@hotmail.com...
- Page 3 BASE BAR BASE BAR SUPPORTING BAR M8*20mm KNOB...
- Page 4 WAYS TO SET UP THE UMBRELLA Put the base bar A on the base bar B. Then fix the support bar C on them.
- Page 5 WAYS TO SET UP THE UMBRELLA Press and hold the button and click the lower tube into upper tube.
- Page 6 WAYS TO SET UP THE UMBRELLA Insert the shaft into support bar C and tighten the knob to finish the assembly. Wear gloves as a protection for the metal insertion is sharp!
- Page 7 WAYS TO SET UP THE UMBRELLA The base is sold separately, You can buy it at other online store.
- Page 8 STEPS TO OPEN THE UMBRELLA Rotate the knob counterclockwise and pull the shaft up. STEP Lift the rip up. STEP...
- Page 9 STEPS TO OPEN THE UMBRELLA STEP Click them into place. STEP Open the umbrella. STEP Rotate the knob clockwise to tighten the shaft.
- Page 10 STEPS TO OPEN THE UMBRELLA...
- Page 11 STEPS TO TILT THE UMBRELLA Pull the rotating shaft down to reach the needed height. STEP STEP Rotate the knob counterclockwise to loosen the shaft. STEP Rotate the knob clockwise to tighten the shaft.
- Page 12 STEPS TO CLOSE THE UMBRELLA Rotate pivot counterclockwise to take down the umbrella. STEP...
- Page 13 STEPS TO CLOSE THE UMBRELLA Pull the rotating shaft down. STEP STEP Separate them . STEP Rotate the knob counterclockwise to loosen the shaft.
- Page 14 STEPS TO CLOSE THE UMBRELLA Rotate the knob clockwise to tighten the shaft. STEP...
