Playcore Colorado Time Systems Water Polo WTTC User Instructions

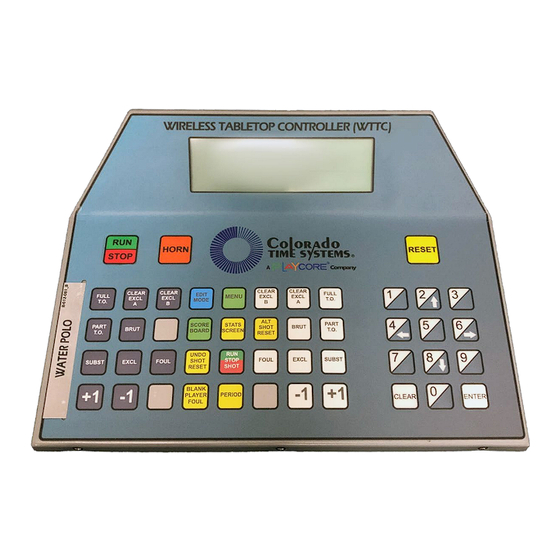

Wireless tabletop controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WTTC
Water Polo
User Instructions
F1071 Rev 202406

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Colorado Time Systems Water Polo WTTC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Playcore Colorado Time Systems Water Polo WTTC

Summary of Contents for Playcore Colorado Time Systems Water Polo WTTC

  • Page 1 WTTC Water Polo User Instructions F1071 Rev 202406...
  • Page 2 Colorado Time Systems Corporate Office 1551 East 11th Street Loveland, CO 80537 USA Sales: 1-800-279-0111 or +1 970-667-1000 Service: 1-800-287-0653 or +1 970-667-1000 FAX: +1 970-667-1032 Web: www.coloradotime.com Email: support@coloradotime.com Information in this manual is subject to change without notice. Pictures and illustrations may not accurately depict your version.

  • Page 3: Table Of Contents

    Table of Contents Introduction ..........................5 Location ..........................5 Connections ..........................6 Power Switch ......................... 6 Scoreboard Ports ........................6 RSR Connection ........................6 USB Ports ..........................6 Basic Operation ......................... 7 Water Polo ..........................8 Clock Operations ........................8 Team Operations ........................

  • Page 4: Introduction

    Introduction Thank you for purchasing Colorado Time Systems’ Wireless Tabletop Controller (WTTC). This manual will cover the standard operation and settings of the WTTC console as well as the settings and operations specific to Water Polo. Location Select an appropriate location for your WTTC. Wireless signals are subject to interference from many sources, including Wi-Fi, cell towers, fire stations, airports and more.

  • Page 5: Connections

    Connections Power Scoreboard Run-Stop-Reset USB-B Switch Ports Connection Ports Power Switch When connected to power, flip the power switch to the “о” position to power the unit on. Flip the switch to the “ı" position to power the unit off. Scoreboard Ports The WTTC supports both wired and wireless connection to scoreboards and deck clocks.

  • Page 6: Basic Operation

    Basic Operation The unit runs on A/C power or may be run on a customer supplied external battery. An external battery must be USB Compatible and have an input and output of 5V/1.0A. Average battery run and charge times as tested. (Note: Customer results may vary.) Battery 3.7V 10000mAh 3.7V 7800mAh...

  • Page 7: Water Polo

    Water Polo The Water Polo keyboard insert is double-sided. One side features the blue team on the left and the white team on the right. The other side reverses the two teams. Please use the insert side that aligns with your governing body’s rules. Clock Operations Press to start and stop the game clock.

  • Page 8: Team Operations

    When enabled through the Alt Shot Reset option under the Shot Clock menu this key will reset the shot clock to a length different than the main shot clock time. Set the length with the “Alt Shot” option in the menu. If required to change the game or shot time, see Edit Mode in Advanced Options on page 11.

  • Page 9: Advanced Options

    Advanced options: Starting.a.new.game? .editing.game.time? .shot.time? .score? .number.of.fouls? .number.of.time. outs.remaining To start a new game, press , and select NEW GAME. This cannot be undone, so you’ll be prompted to confirm this action. Press to activate Edit Mode. Next, press the key corresponding to the value you want to edit. Enter the new value with the numeric keypad and press Enter to enact the change.

  • Page 10: Game Settings

    Press to see the game statistics. These can be displayed on scoreboards which have space for this. Set which statistics are kept in the Stats Options, described in Game Setup, below. To edit statistics for a player, enter the stats screen. Use the arrow keys to highlight the number to edit, press Enter, type the new number, and press Enter again.
  • Page 11 Use the Exclusion options to set the length of exclusions and brutalities. There is an option to control whether exclusions clear automatically when a goal is scored. There are also two options which control the placement of exclusions on the scoreboard. You can opt to always place Brutalities in slot C.

  • Page 12: Penalty Shootout

    Penalty Shootout The Penalty Shootout mode is designed to work exclusively with CTS’ DisplayLink Plus and your LED video board. It allows for the display of made and missed penalty shots during the shootout phase of a game. From Water Polo, you can enter the Penalty Shootout mode by click then selecting Go to Penal.
  • Page 13 Customer Service Department www.coloradotime.com Email: support@coloradotime.com Phone: +1 970-667-1000 Toll Free U.S. and Canada 800-287-0653 Fax: +1 970-667-1032...
