Thomson Electrak
LL
®
Electric Linear Actuator
Installation Manual
Edition 2024-06
www.thomsonlinear.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thomson Electrak LL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Regal Rexnord Thomson Electrak LL

Summary of Contents for Regal Rexnord Thomson Electrak LL

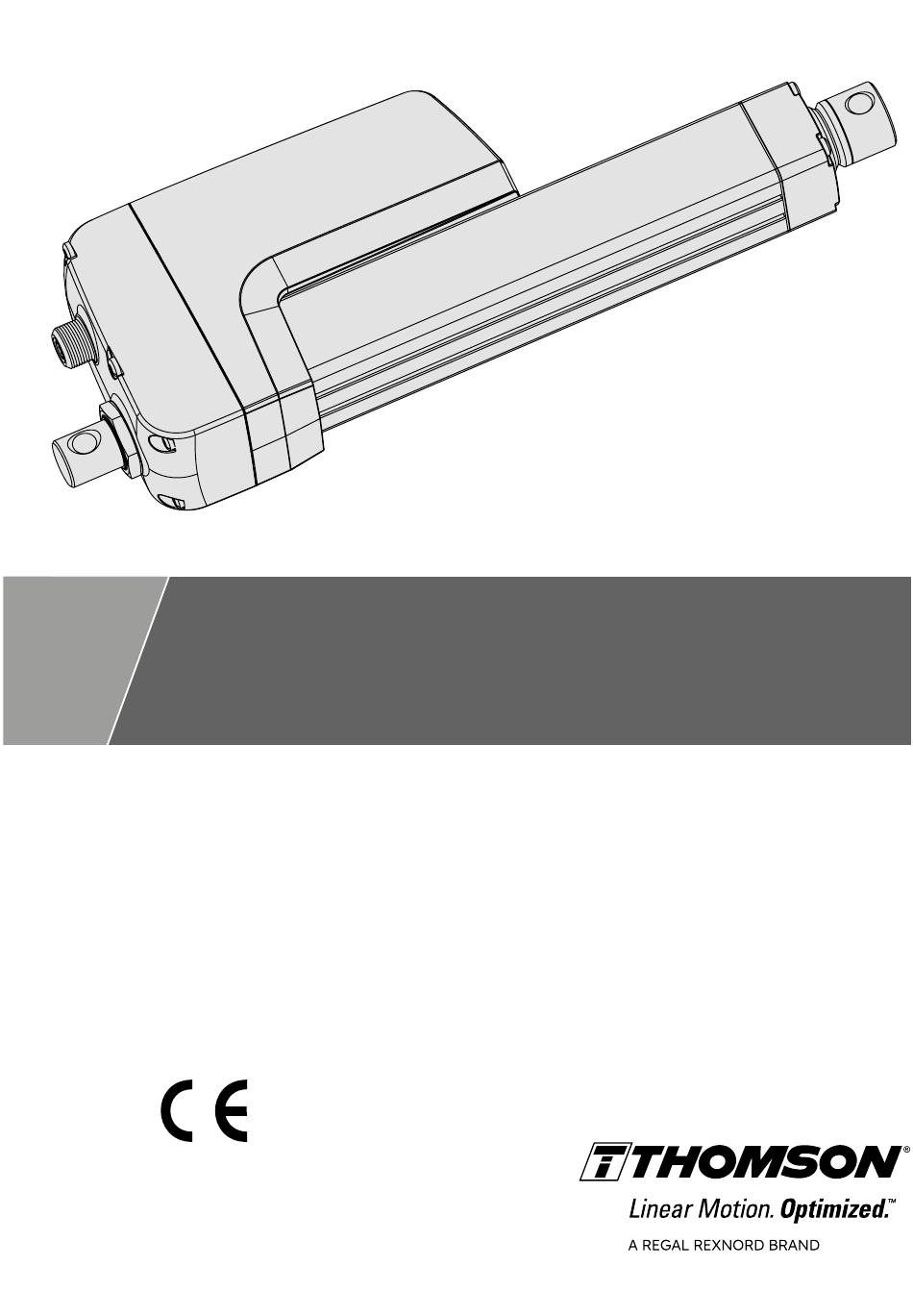

  • Page 1 Thomson Electrak ® Electric Linear Actuator Installation Manual Edition 2024-06 www.thomsonlinear.com...
  • Page 2 Thomson Version history Edition Reason for revision 2020-04 First edition 2020-11 Page references added after brake resistor in diagram legend + back page updated 2021-08 Updated warning for onboard control signals (control type LEX) 2022-05 Date added to the CE declaration 2023-08 Update 2012-08 was lost during 2022-05 update and now added again.

  • Page 3: Table Of Contents

    Contents Thomson Contents 1. General ...................... 4 1.1 About this manual ....................4 1.2 Target group ......................4 1.3 Symbols used ......................4 1.4 Transport and storage .................... 4 1.5 Packaging ......................4 1.6 Disposal ......................... 4 1.7 Support ........................4 2.

  • Page 4: General

    Thomson General 1. General 1.1 About this manual This manual contains mechanical and electrical installation instructions for the Thomson Electrak ® electric linear actuator. It also contains, among other things: • technical data • installation data • type designation key. It is important to carefully read this manual before installing the actuator and to have the correct qualifications needed to perform the installation.

  • Page 5: Safety

    Safety Thomson 2. Safety 2.1 Safety notes • Only properly qualified personnel are permitted to perform mechanical and electrical installation of this product. Properly qualified personnel are familiar with mechanical or electrical installation work and have the appropriate qualifications for their job. •...

  • Page 6: Standards

    Thomson Standards 3. Standards 3.1 EC Declaration of incorporation of partly completed machinery Thomson Electrak LL Actuator - Installation Manual - 2024-06 ®...

  • Page 7: Installation

    Installation Thomson 4. Installation 4.1 Product label The product label can be found on the side of the cover tube. It will tell you which model of actuator you have, its basic performance data and where it is manufactured. Please study the product label to determine actuator type before starting any installation or service on the actuator.

  • Page 8: Mechanical Installation

    Thomson Installation 4.4 Mechanical installation 4.4.1 General installation safety notes • Never work on the actuator with the power switched on! • Do not hold the extension tube while the unit is energized. • Failure modes of the actuator should be considered to ensure it does not create harm. 4.4.2 Basic installation considerations 1.
  • Page 9 Installation Thomson 4.4.3 Mounting orientation and forces 1. The actuator can be mounted in any orientation and handle both pushing and pulling loads. 2. Always install actuator so that the force of the load acts in the center of the extension tube and the rear adapter.
  • Page 10 Thomson Installation 4.4.5 Hand wind mounting and operation 1. Make sure when mounting the actuator that there is space enough between the rear adapter and any object behind it to allow the hand wind to be operated! 2. To be able to operate the hand wind, remove the cover plug placed over the hand wind input (a). 3.

  • Page 11: Electrical Installation

    Installation Thomson 4.5 Electrical installation 4.5.1 General notes • Make sure the leads/cables leading to the motor can handle the maximum motor current. • An emergency stop is recommended to reduce the chance of a crushing hazard. • Never work on the actuator or the wiring with the power switched on! 4.5.2 Fuse size Protect the actuator and the wiring by using a slow blow fuse between the actuator and the power source.
  • Page 12 Thomson Installation 4.5.5 Inrush current At the start of the actuator there is an inrush current to the motor that will last between 75 to 150 milliseconds. See below table to determine the inrush current for the control option being used. Control Option Inrush Current Level Option Inrush current...

  • Page 13: Control Options Installation And Operation

    Installation Thomson 4.6 Control options installation and operation 4.6.1 General notes • Avoid placing signal cables along power cables to reduce the risk of interference. • Avoid using a vehicle earth as the return conductor. Instead use a two wire system to reduce the risk of interference.
  • Page 14 Thomson Installation 4.6.3 Safety functions Below a decsription on how the safety functions works and how they in applicable cases can be reset. Safety functions Feature Functions Reset Speed monitoring The unit keeps the speed constant. Current monitoring Shuts down the actuator on overload. Non bus units: if units stops when extending, reset is done by activating the retract input and vice versa.
  • Page 15 Installation Thomson 4.6.4 Control option LEX To eleminate the risk of the actuator making unplanned moves, for example during emergency stop or when making maintenance work, always turn power off and deactivate control signals. Power the actuator by connecting lead 2 (black) to + Vdc and lead 1 (red) to - Vdc in the power cable. If using a brake resistor it should be connetc between leads 2 (black) and 3 (brown) in the power cable.
  • Page 16 Thomson Installation 4.6.5 Control option LXX To eleminate the risk of the actuator making unplanned moves, for example during emergency stop or when making maintenance work, always turn power off and deactivate control signals. Power the actuator by connecting lead 2 (black) to + Vdc and lead 1 (red) to - Vdc in the power cable. If using a brake resistor it should be connected between leads 2 (black) and 3 (brown) in the power cable.
  • Page 17 Installation Thomson 4.6.6 Control option LXP To eleminate the risk of the actuator making unplanned moves, for example during emergency stop or when making maintenance work, always turn power off and deactivate control signals. Power the actuator by connecting lead 2 (black) to + Vdc and lead 1 (red) to - Vdc in the power cable. If using a brake resistor it should be connected between leads 2 (black) and 3 (brown) in the power cable.
  • Page 18 Thomson Installation 4.6.7 Control options CNO and COO This document assumes the user is familiar with the SAE J1939 and CANopen standards. Terminology from the standard is used, but not described in detail. See sections 5 and 6 for information on J1939 and CANopen operation and communication protocols, respectively.
  • Page 19 Installation Thomson 4.6.7.3 CANopen and SAE J1939 CAN bus installation data Follow wiring guidelines per ISO-11898 Standard CAN 2.0B. Proper termination resistors (120 Ohm) should be placed between the CAN high and CAN low wires in each end of the of the network, see below.

  • Page 20: Can Bus Sae J1939 Information

    Thomson SAE J1939 CAN bus information 5. SAE J1939 CAN bus information Introduction to SAE J1939 CAN bus This document assumes the reader is familiar with the SAE J1939 standard. Terminology from the standard is used, but not described in detail. The default baud rate is 250kbit/s. The Electrak LL actuator ®...
  • Page 21 SAE J1939 CAN bus information Thomson 5.2.3 SAE J1939 actuator control message (ACM) All actuator control parameters are adjustable through the proprietary A message (PGN 61184). The preferred transmission repetition rate is 100 ms (can also be sent as required by the application). Additional message specific information can be found in the table below, all other Proprietary A information can be found in the SAE J1939/21 specification.
  • Page 22 Thomson SAE J1939 CAN bus information 5.2.4 SAE J1939 actuator feedback message (AFM) All actuator feedback data can be retrieved through the proprietary A2 message (PGN 126720). This message is transmitted every 100 ms. Additional message-specific information can be found in the table below, and all other Proprietary A2 information can be found in the SAE J1939/21 specification.
  • Page 23 SAE J1939 CAN bus information Thomson Bit 2 – Voltage error: This flag is used to inform the user that the operational voltage is outside of allowable running parameters. Any motion already in progress will continue for 10 seconds, but additional movement request will not be allowed until the operational voltage returns within the normal operating range.

  • Page 24: Can Bus Canopen Information

    Thomson CAN bus CANopen information 6. CANopen information ® 6.1 Introduction to CANopen 6.1.1 CANopen standard This document assumes the reader is familiar with the CiA 301 specification released by CAN in Automation. Terminology from the standard is used, but not described in detail. The Electrak® LL actuator is compliant with the standard.
  • Page 25 CAN bus CANopen information Thomson 6.2.2 Control PDO entries The Object Dictionary entries mapped to the RPDO are: Index 0x2100 Name Target Position Object Type Data Type UNSIGNED16 Description The target position for the next actuator motion. The 0.0 mm and full extend stroke values represent 0 to 100% stroke and are only relative to the actual available stroke of the individual unit.

  • Page 26: Actuator Feedback

    Thomson CAN bus CANopen information 6.3 Actuator feedback 6.3.1 Feedback PDO properties Operational feedback of the actuator is achieved by receiving the statically mapped TPDO with COB-ID $180 + Node ID. It will have the following layout: Byte 0 Byte 1 Byte 2 Byte 3 Byte 4...
  • Page 27 CAN bus CANopen information Thomson 6.3.4 Error flags Index 0x2205 Name Error Flags Object Type Data Type UNSIGNED8 Description Contains information about actuator errors. Bit 0 (LSB) – Parameter Error: This flag is used to inform the user that one of the object values in the RPDO is outside the allowed ranges the specific model will allow.

  • Page 28: Troubleshooting

    Thomson Troubleshooting 7. Troubleshooting 7.1 Troubleshooting Troubleshooting list Issue Problem Solution Actuator does not move, Actuator is not receiving Ensure the actuator is being supplied with proper rated makes no sound. proper input voltage. input voltage. Actuator makes buzzing Actuator does not have Ensure your power supply can provide enough current to sound, does not move.

  • Page 29: Technical Specifications

    Technical Specifications Thomson 8. Technical specifications 8.1 Technical data Technical Specification ELECTRAK LL Input voltages [Vdc] 24, 48 Input voltage tolerance [Vdc] LL24 (24 Vdc input voltage) 16.8 - 32.0 LL48 (48 Vdc input voltage) 36.0 - 60.0 Stroke length [mm] see product label Static load at fully retracted (Fx), maximum...

  • Page 30: Ordering Key

    Thomson Technical Specifications 8.2 Ordering key Ordering Key Position LL24 B040- 0300 Example 1. Actuator type and supply voltage 6. Rear adapter option LL24 = Electrak LL, 24 Vdc M = cross hole for 12 mm pin LL48 = Electrak LL, 48 Vdc E = cross hole for ½...
  • Page 31 Thomson - Page intentionally left blank - Thomson Electrak LL Actuator - Installation Manual - 2024-06 ®...
  • Page 32 EUROPE USA, CANADA and MEXICO United Kingdom Thomson Thomson 203A West Rock Road Radford, VA 24141, USA Office 9, The Barns Caddsdown Business Park Phone: 1-540-633-3549 Bideford, Devon, EX39 3BT Fax: 1-540-633-0294 E-mail: thomson@regalrexnord.com Phone: +44 1271 334 500 E-mail: thomson.europe@regalrexnord.com Literature: literature.thomsonlinear.com Germany ASIA...
