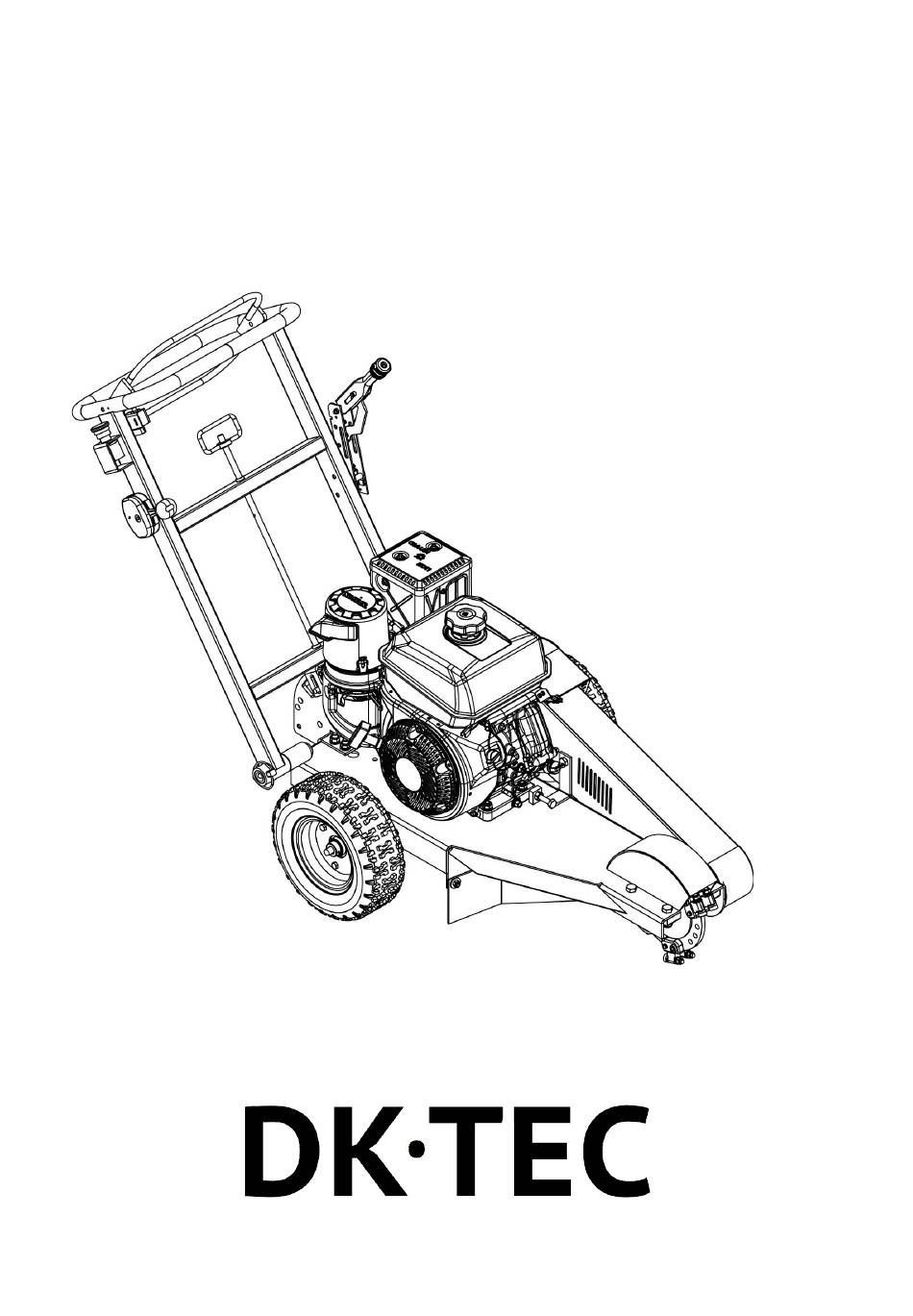

- Page 1 01/2020 Stump cutter User Manual Model: W2000 ALWAYS READ INSTRUCTIONS BEFORE USING THE MACHINE DK-TEC A/S Òrøvej 8, 5800 Nyborg Telephone: 66128222 Email: info@dk-tec.dk...
-
Page 2: Table Of Contents
01/2020 Table of Contents Spare parts ..........................4 Safety instructions ...................... 5 The useafstubfræseren ..........................5 Personallyudstyr ............................7 Children ..............................8 Specifications ......................9 Control handle ......................11 Refueling ..............................11 Centrifugalkobling .............................11 Dead man's button ............................11 Brake ................................11 Throttle ..............................12 Fuelsystem ...............................12 Operation ......................... -
Page 3: Spare Parts
01/2020 Spare parts Always use original spare parts, otherwise the warranty will be void! You can easily find the spare parts that fit the machine by scanning the scan code on your machine's CE plate. Download the app 'QR scanner' on your smartphone in the Play Store or App Store to be able to scan the scan code. -
Page 4: Safety Instructions
If, after reading the user manual, you are still unsure about the safety associated with the use of this machine, you should not use the machine. Please contact DK-TEC for more information. Read this manual thoroughly and make sure you understand it completely before using the machine or starting maintenance. - Page 5 01/2020 WARNING The engine can get very hot. To avoid being burned, it is important that you switch off the engine and wait until all moving parts have cooled down before touching the engine. If you are exposed to vibrations over a long period of time, it can cause damage to the blood circulation or nerve pathways, especially in people with poor blood circulation.
-
Page 6: Personallyudstyr
Use a helmet with a full-face visor. Contact DK-TEC to choose the right safety equipment. Before using the stump cutter, it will in many cases be necessary to clear the area with a chainsaw. It is therefore a good idea to use personal safety equipment that meets the requirements for working with stump grinders and chainsaws. -
Page 7: Children
01/2020 Children • Serious accidents can occur if children are not supervised around the machine. • Keep children away from this machine. • Keep children away from the work area and under the close supervision of another adult • Never allow children to operate the machine •... -
Page 8: Specifications
01/2020 Specifications XZ0200 Engine volume 420CC Fuel type Petrol Grinding teeth 8pcs(4sets) Cutting size Ø200mm Diameter x 10mm thickness Cutting capacity 12" under the ground drive Powerful coupling Motor oil SAE 30 or equivalent Air rubber wheels 13" Overall dimensions 1580x730x1030mm Weight 100kg... - Page 9 01/2020 MAIN COMPONENTS IDENTIFICATION 1. Operating handle. For operating the machine. The height of the handle can be adjusted by pulling the height adjustment handle. 2. Motor switch. It is a button for starting the engine (see details in CONTROLS SECTION). 3.
-
Page 10: Control Handle
01/2020 Control handle Refueling Read the safety instructions before refueling. Keep fuel and fuel tank clean. Avoid filling the machine with dirty fuel. It must be ensured that the tank cover is sufficiently tightened and the gasket is not damaged, especially before washing the machine. -
Page 11: Throttle
01/2020 WARNING Never use the machine with a defective brake. Throttle The throttle controls engine speed and cutting wheel speed. By pulling the handle upwards, the engine runs at idle, and acts as the starting position. By pushing the handle backwards, the engine speed increases, the drive of the centrifugal clutch automatically engages the cutting wheel. -
Page 12: Operation
01/2020 Operation Preparation • Do not use this machine on hills that incline more than 10 degrees. • Do not use this machine if you are tired, if you have consumed alcohol, or if you have taken other drugs or medications that may affect your vision, judgment, or coordination. -
Page 13: Startaf Stubfræseren
01/2020 Important information Clear the work area of foreign objects before starting work. Change the engine oil after 10 hours of use. Check that the bolts and nuts are correctly tightened. After 10 hours of use, they must be tightened. When the motor is operating without the blades rotating, it must be moved away from the work area prevent the frames from burning off. -
Page 14: Stopmotoren
01/2020 Stop the engine While keeping the blade off the ground, release the safety handle. Wait until the blade stops completely. Lower the blade so it rests against the ground. Make sure the brake is set before leaving the controls, especially if you are on an incline. Turn the engine switch to the off position. -
Page 15: Procedurefornedfræsningaf Stub
01/2020 Procedure for milling down stumps WARNING Never leave the working position with bladed rotary. Keep all people and animals at a distance when the blade rotor is running. WARNING Danger of flying debris Rocks and debris can cause serious personal injury or property damage. Debris can fly at high speed in all directions out of the chute. -
Page 16: Normalslukkeprocedure
01/2020 Tips To make operation easier, mill the stump down to ground level. WARNING Rotating knife blades are very dangerous. Stay at the operator's station and make sure the blade rotor comes to a complete stop before doing anything else. Place the stump cutter in position with the blade rotor near the front top edge of the stump. -
Page 17: Maintenance
01/2020 Maintenance Before working on the machine, pull the ignition cable from the spark plug. Cutting head Each cutting tooth can be used in 3 different positions to extend the life of the knife. Check the cutting head after each use. If the head is worn, change the mowing head mounting position. Among the most critical elements on the stump grinder are the knife blades. -
Page 18: Replacementafknivblade
01/2020 Replacement of knife blades 1. Clean all soil from the blade and mounting flanges. Remove all bolts holding the blade. Be careful not to drop the knife section when they come loose. 3. Check each section for cracks. Replace the blade if it is cracked. 4. -
Page 19: Lubricationaf Lejre
Always park the machine on a level surface before performing maintenance or making adjustments. Do not disassemble the engine. This may void your engine warranty. Contact DK-TEC if you have any questions regarding service or warranty on the machine. Always follow all maintenance instructions. The carburettor adjustments must not be adjusted so that the engine will run at too high revs. -
Page 20: Service
01/2020 Service Always use original spare parts from DK-TEC. • Paint the places where the paint has been scraped off to prevent rust. • Check the machine for worn or damaged parts and retighten any nuts and bolts that may be loose. - Page 21 01/2020 WARNING Never store the engine with fuel in the tank indoors or in a poorly ventilated room where fuel vapors can come into contact with open flames, sparks or the like. Handle the fuel with care as it is highly flammable. Careless handling can cause serious injury and accidents to both people and property.
- Page 22 01/2020 TROUBLE SHOOTING Symptom Cause Action The engine will not Fuel valve closed. Open the fuel valve. start Choke valve open. Close the shock with cold engine User error Engine switch OFF position. Turn engine switch to ON User error Fuel tank empty.
- Page 23 01/2020 Problem Possible solutions Belt coming off. 1. Pulleys not aligned. 2. Belt tension is insufficient. Adjust belt tension. Belt engages late or 1. Tighten the belt as described in the operator's manual. 2. Reduce cutting depth. slips. Belt not staying tight 1.
- Page 24 No.391, Huimin Road, Huimin Town, Jiashan County, Zhejiang, P. R. China Erklærer hermed at følgende maskine: Betegnelse: Stubfræser Model: XZ0200/Model W2000 Er fremstillet i overensstemmelse med følgende EF-direktiv: • Maskindirektivet 2006/42/EC Anvendte standarder: EN ISO 12100:2010, Eva Chen 21/10/2021 name and date...
- Page 25 01/2020 Always see the latest version of the manual, as well as the spare parts list / parts list for your item www.dk-tec.dk, under the machine itself.
