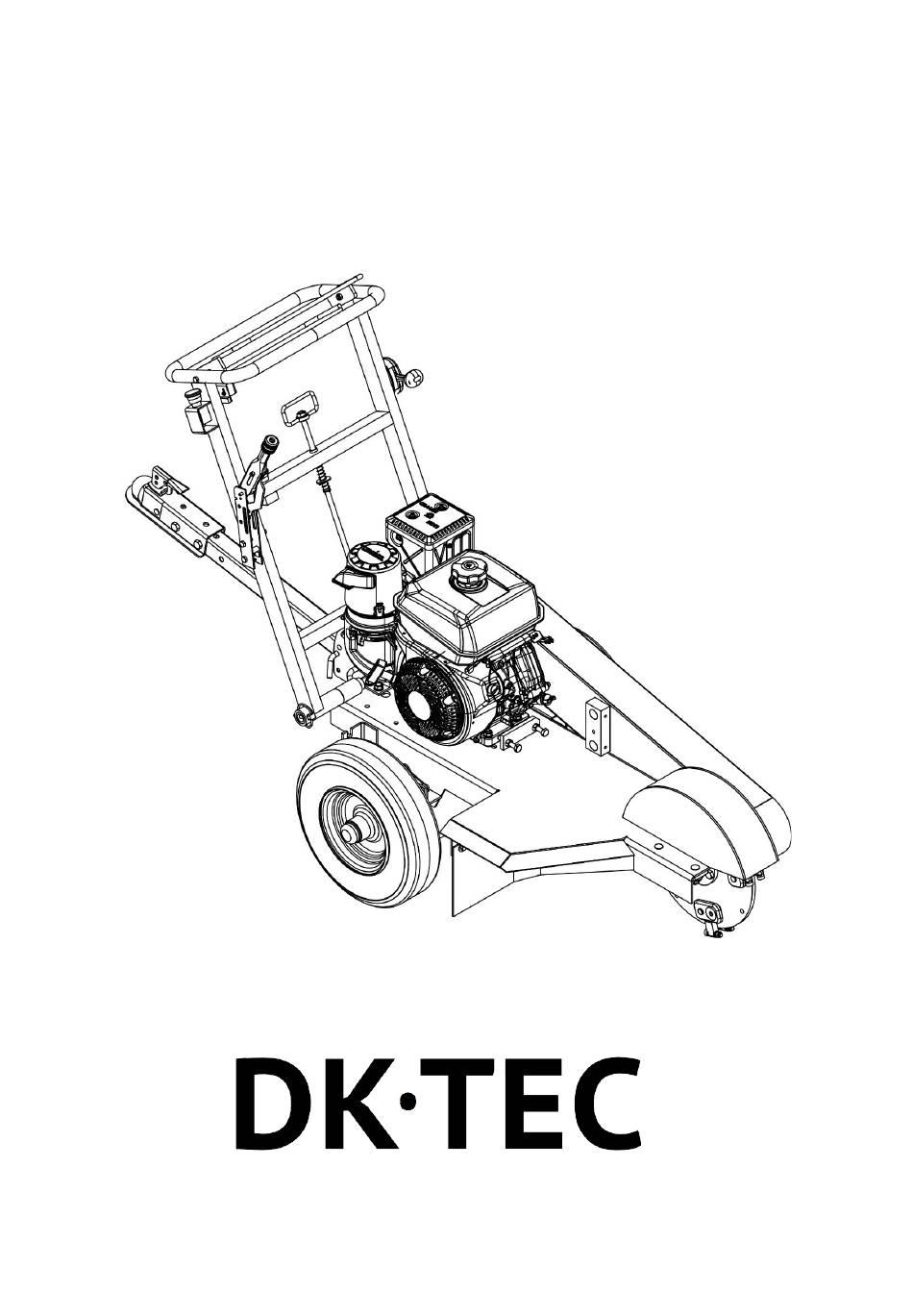

- Page 1 11/2021 Stump cutter W3000 User Manual Translation of original manual Model: W3000 ALWAYS READ INSTRUCTIONS BEFORE USING THE MACHINE DK-TEC A / S Ærøvej 8, 5800 Nyborg Phone: 66128222 Email: info @ dk-tec.dk...
-
Page 2: Table Of Contents
01/2020 Table of Contents Spare parts ..............................4 Safety instructions ...................... 5 The useafstubfræseren ..........................5 Personallyudstyr ............................7 Children ..............................8 Specifications ......................9 Control handle ......................11 Refueling ..............................11 Centrifugalkobling .............................11 Dead man's button ............................11 Brake ................................11 Throttle ..............................12 Fuelsystem ...............................12 Operation ......................... -
Page 3: Spare Parts
01/2020 Spare parts Always use original spare parts, otherwise the warranty will be void! You can easily find the spare parts that fit the machine by scanning the scan code on your machine's CE plate. Download the app 'QR scanner' on your smartphone in the Play Store or App Store to be able to scan the scan code. -
Page 4: Safety Instructions
If, after reading the user manual, you are still unsure about the safety associated with the use of this machine, you should not use the machine. Please contact DK-TEC for more information. Read this manual thoroughly and make sure you understand it completely before using the machine or starting maintenance. - Page 5 01/2020 WARNING The engine can get very hot. To avoid being burned, it is important that you switch off the engine and wait until all moving parts have cooled down before touching the engine. If you are exposed to vibrations over a long period of time, it can cause damage to the blood circulation or nerve pathways, especially in people with poor blood circulation.
-
Page 6: Personallyudstyr
Use a helmet with a full-face visor. Contact DK-TEC to choose the right safety equipment. Before using the stump cutter, it will in many cases be necessary to clear the area with a chainsaw. It is therefore a good idea to use personal safety equipment that meets the requirements for working with stump grinders and chainsaws. -
Page 7: Children
01/2020 Children • Serious accidents can occur if children are not supervised around the machine. • Keep children away from this machine. • Keep children away from the work area and under the close supervision of another adult • Never allow children to operate the machine •... -
Page 8: Specifications
01/2020 Specifications XZ0300 Commercial Pro Engine 420CC Fuel type Petrol Grinding teeth 8 pcs Cutting head size Ø350mm Diameter x 10mm thickness Cutting capacity 16” below ground, 20” above ground Drive Clutch and belt Drawbar Wheel 16" pneumatic wheels Overall dimensions 1720x815x1245mm Weight 135kg... - Page 9 01/2020 MAIN COMPONENTS IDENTIFICATION 1. Operating handle. For operating the machine. The height of the handle can be adjusted by pulling the height adjustment handle. 2. Motor switch. It is a button for starting the engine (see details in CONTROLS SECTION). 3.
-
Page 10: Control Handle
01/2020 Control handle Refueling • Read the safety instructions before refueling. Keep fuel and fuel tank clean. Avoid filling the machine with dirty fuel. It must be ensured that the tank cover is sufficiently tightened and the gasket is not damaged, especially before washing the machine. •... -
Page 11: Throttle
01/2020 Throttle The throttle controls engine speed and cutting wheel speed. By pulling the lever upwards, the engine idles and acts as the starting position. By pushing the handle backwards, the engine speed increases, the drive of the centrifugal clutch automatically engages the cutting wheel. -
Page 12: Operation
01/2020 Operation Preparation • Do not use this machine on hills that incline more than 10 degrees. • Do not use this machine if you are tired, if you have consumed alcohol, or if you have taken other drugs or medications that may affect your vision, judgment, or coordination. -
Page 13: Startaf Stubfræseren
01/2020 Important information Clear the work area of foreign objects before starting work. Change the engine oil after 10 hours of use. Check that the bolts and nuts are correctly tightened. After 10 hours of use, they must be tightened. When the motor is operating without the blades rotating, it must be moved away from the work area prevent the frames from burning off. -
Page 14: Moving/Transportation
01/2020 Make sure the brake is set before leaving the controls, especially if you are on an incline. Turn the engine switch to the off position. Allow the engine to cool for at least 5 minutes before releasing the brake and moving for storage or transport. -
Page 15: Procedurefornedfræsningafstub
01/2020 Procedure for milling down stumps WARNING Never leave the working position with bladed rotary. Keep all people and animals at a distance when the blade rotor is running. WARNING Danger of flying debris Rocks and debris can cause serious personal injury or property damage. Debris can fly at high speed in all directions out of the chute. - Page 16 01/2020 Tips To make operation easier, mill the stump down to ground level. WARNING Rotating knife blades are very dangerous. Stay at the operator's station and make sure the blade rotor comes to a complete stop before doing anything else. Place the stump cutter in position with the blade rotor near the front top edge of the stump.
-
Page 17: Maintenance
Always park the machine on a level surface before performing any maintenance or adjustments. • Do not disassemble the engine. This may void your engine warranty. Contact DK-TEC if you have any questions regarding service or warranty on the machine. Always follow all maintenance instructions. -
Page 18: Cutting Head
01/2020 WARNING Wait until all moving parts have come to a complete stop before performing maintenance on the machine. Turn off the engine and remove the ignition cable from the spark plug. Cutting head Each cutting head can be used in 3 different positions to extend the life of the knife. Check the cutting head after each use. -
Page 19: Brakejustering
01/2020 rotation. Loosen the No. 9 gasket, No. 10 flat washer Ø8, lock washer Ø8 and No. 12 nylon lock nut M8 on the cutting wheel as shown in the drawing below. Rotate the cutting head at the other mounting location. Tighten with tool If the cutting head is finished worn or damaged, replace it with a new cutting head. -
Page 20: The Strap
Always park the machine on a level surface before performing maintenance or making adjustments. Do not disassemble the engine. This may void your engine warranty. Contact DK-TEC if you have any questions regarding service or warranty on the machine. Always follow all maintenance instructions. The carburettor adjustments must not be adjusted so that the engine will run at too high revs. -
Page 21: Service
01/2020 Service Always use original spare parts from DK-TEC. • Paint the places where the paint has been scraped off to prevent rust. • Check the machine for worn or damaged parts and retighten any nuts and bolts that may be loose. -
Page 22: Storage
01/2020 Storage Storage Allow the engine to cool before storing the machine. Never store the machine near an open flame. Store the machine with the fuel tap in the closed position. Store the machine and fuel in such a way that there is no risk of fuel escaping and vapors coming into contact with flames or sparks from electrical equipment. - Page 23 01/2020 TROUBLE SHOOTING Symptom Cause Action The engine will not Fuel valve closed. Open the fuel valve. start Choke valve open. Close the shock with cold engine. � User error Engine switch in OFF Turn engine switch to ON � position.
- Page 24 01/2020 (Blue exhaust) Tank filled with 2-cycle mixed Clean tank, sludge reservoir and (Voluminous blue- oil. empty carburetor. white exhaust) Tank filled with diesel. Fill the tank with proper fuel. Open choke valve. Clean or replace the air filter. (Black exhaust) Choke left on.
- Page 25 EC - DECLARATION OF CONFORMITY Fabrikant JiashanSuperpowerToolsCo.,Ltd. No.391, Huimin Road, Huimin Town, Jiashan County, Zhejiang, P. R. China Erklærer hermedatfølgendemaskine: Betegnelse: Stubfræser Model: XZ0300,XZ0200,N030,N032,W3000,W2000 Beskrivelse: Stubfræseren fræser stubbe ned til underjordniveau ErfremstilletioverensstemmelsemedfølgendeEF- • Maskindirektivet2006/42/EC Anvendtestandarder: • ENISO12100:2010 Eva Chen21/10-2021...
- Page 26 01/2020 Always see the latest version of the manual, as well as the spare parts list / parts list for your item www.dk-tec.dk, under the machine itself.
