Summary of Contents for Omega DRN-PS-750

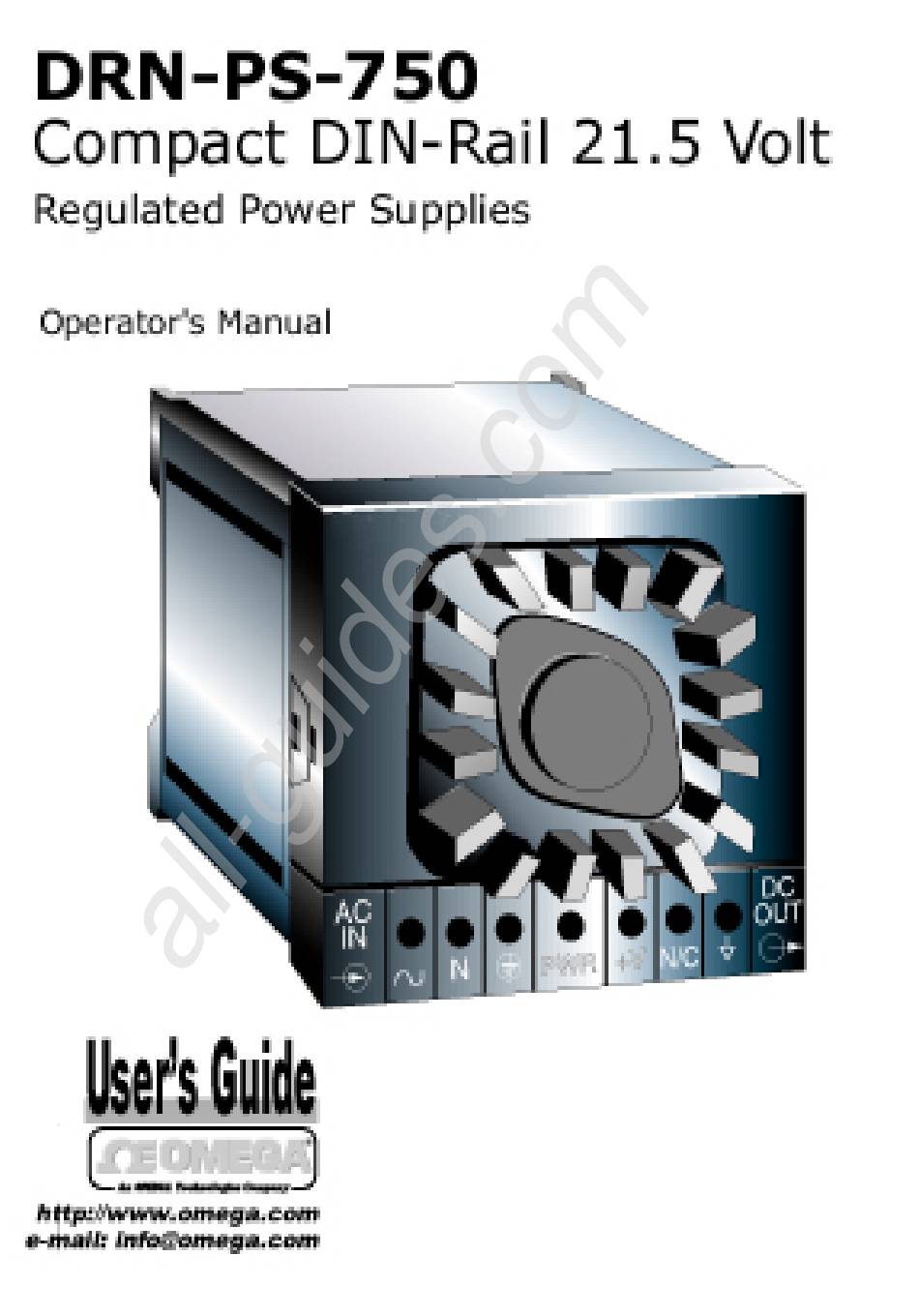

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com ONTENTS 1. General Information and Features 2. Applicable Standards 3. Installation and Removal 4. Input and Output Connections 5. Specifications 5.1 PS Type Labeling 5.2 Size & Weight 5.3 Mounting 5.4 Temperature Ranges 5.5 Input Range 5.6 Input Current Surge Protection 5.7 Output Voltage... -
Page 4: General Information And Features
All manuals and user guides at all-guides.com ENERAL NFORMATION AND EATURES The compact DRN power supplies are designed to supply well-regulated 21.5 volt DC power to sensors, signal conditioners, data acquisition systems and high level logic equipment. Significant DRN features include: ¥... -
Page 5: Applicable Standards
All manuals and user guides at all-guides.com PPLICABLE TANDARDS 2.1 Input Voltage Tolerances Exceeds IEC 38 range 2.2 Input / Output Isolation 4KV rms 60Hz 1 minute test 630V conductor spacing, IEC 348 Exceeds VDE551 / IEC 742 separation spacing Exceeds VDE106 protective separation Exceeds VDE 160 clearance distances Exceeds VDE160 creepage distances... -
Page 6: Installation And Removal
All manuals and user guides at all-guides.com NSTALLATION AND EMOVAL The DRN power supplies are heavy enough to cause damage and or injury Warning! if dropped during installation. Assure firm rail mounting before releasing grip on the unit. If a rail assembly is to be transported, then disconnection, dismounting and separate packing of the power supply is recommended. - Page 7 All manuals and user guides at all-guides.com NSTALLATION AND EMOVAL To change voltage jumpers: 1. Remove cover from case by carefully prying up two side tabs using a screwdriver. Remove two screws from bottom of case. Slide unit out of case. 2.
- Page 8 All manuals and user guides at all-guides.com NSTALLATION AND EMOVAL TRANSFORMER MOUNTING PLATE SHOWN WITH 115VAC WIRING MAIN BOARD 230VAC JUMPER WIRING 115VAC JUMPER WIRING Figure 3.1 Ñ Main Board Power Jumpers DRN-PS Ñ DIN Rail Power Supplies...
- Page 9 All manuals and user guides at all-guides.com NSTALLATION AND EMOVAL installation removal Figure 3.2 Ñ 35mm "Top Hat" Installation: Hook in the module with the mounting rail guide on the top edge of the mounting rail and lower it to lock it into position.
-
Page 10: Input And Output Connections
All manuals and user guides at all-guides.com NPUT AND UTPUT ONNECTIONS RETURN AC Line AC Neutral NO CONNECTION Ground +21.5V Figure 4.1 Ñ Front Panel Connection Labels shown without regulator cover DRN-PS Ñ DIN Rail Power Supplies... -
Page 11: Specifications
All manuals and user guides at all-guides.com PECIFICATIONS 5.1 PS Type Labeling DRNÐPSÐ750, where 750 equals mA rating. DRNÐPSÐ750 5.2 Size & Weight Height: 2.76" (70mm) Width: 2.95" (75mm) Depth: 5.95" (151mm) Weight: 2.0 lbs. (0.9 kg) 5.3 Mounting 35mm "top hat" DIN EN 50022 5.4 Temperature Ranges Operating Temperature Ranges -20 to 60 degrees C... -
Page 12: Input Range
All manuals and user guides at all-guides.com PECIFICATIONS 5.5 Input Range 115 or 230V, 49Ð61Hz DRNÐPSÐ750 ± 10% 5.6 Input Current Surge Protection 6kA/275V Varistor 5.7 Output Voltage 21.5V ± 2% - IR, where I = output current amperes and R = 0.3½ 5.8 Output Current DRNÐPSÐ750 0Ð750mA... -
Page 13: Temperature Derating
All manuals and user guides at all-guides.com PECIFICATIONS 5.10 Temperature Derating None below 50 degrees C DRNÐPSÐ750, 15mA per degree C above 50¡C 5.11 Power-on Indicator Front Panel red LED lamp 5.12 Short-circuit and overload protection DRNÐPSÐ750 foldback current limiting with automatic high temperature shutdown no fuses required 5.13 Wire Connections... -
Page 14: Derating Graph
All manuals and user guides at all-guides.com ERATING RAPH LOCK IAGRAM 1000 DRN-PS-750 75mA I max. ¡C Ambient Figure 6.1 Ñ Derating Graph (+V) AC Line INPUT: 115/230vac 21.5V 49-61Hz AC Neutral Return Ground Figure 7.1 Ñ Block Diagram DRN-PS Ñ DIN Rail Power Supplies... -
Page 15: Dimensions Drawing
All manuals and user guides at all-guides.com IMENSIONS RAWING FASTEN RAIL UNDER POWER SUPPLY WITH TWO SCREWS SPACED AS SHOWN. 3.15 [80.0] 2.95 2.76 [75.0] [70.0] 5.95 [151.1] Figure 8.1 Ñ Dimensions DRN-PS Ñ DIN Rail Power Supplies... -
Page 16: Safety Considerations
All manuals and user guides at all-guides.com AFETY ONSIDERATIONS This device is marked with the international Caution symbol. It is important to read this manual before installing or commissioning this device as it contains important information relating to Safety and EMC (Electromagnetic Compatibility). Unpacking &... - Page 17 Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective it will be repaired or replaced at no charge. OMEGAÕs WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
