Installation Manual of Room Air Conditioner
1.Driver
2.Hacksaw
3.Hole core drill
4.Spanner(17,19 and 26mm)
Accessory parts
No.
Accessory parts
1
Remote controller
2
R-03 dry battery
3
Mounting plate
4
Drain hose
5
4X25
Plastic cap
Screw
6
Drain-elbow
7
Cushion
8
Change for
fresh air box
Change for
9
fresh air tube(suit)
10
Outlet joint
No.001051
Necessary Tools for Installation
5.Torque wrench(17mm,22mm,26mm)
6.Pipe cutter
7.Flaring tool
8.Knife

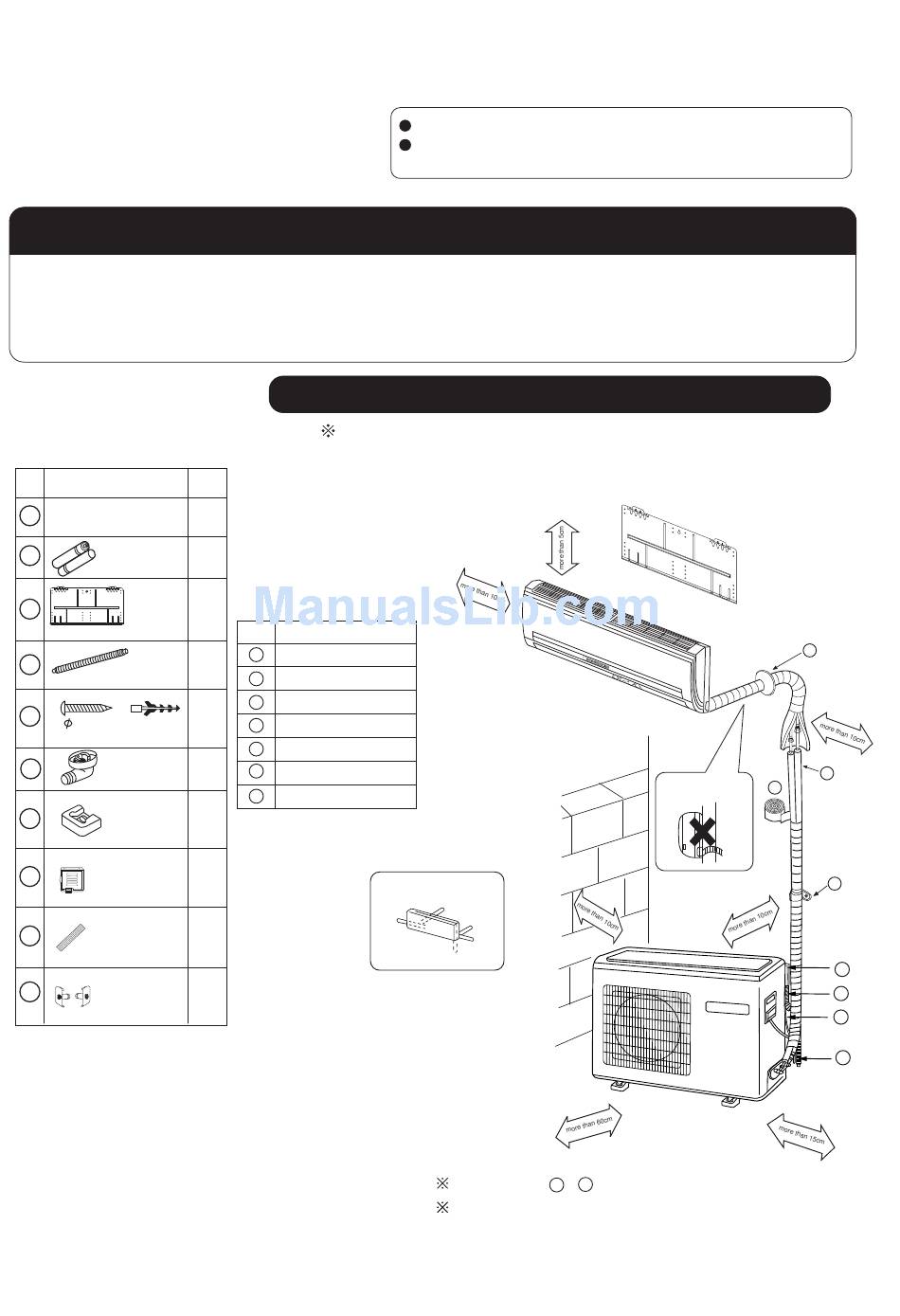

Drawing for the installation of indoor and outdoor units
The models adopt HFC free refrigerant R410A
Number
of
articles
1
2
1
Optional parts for piping
Mark
Parts name
A
Non-adhesive tape
1
Adhesive tape
B
C
Saddle(L.S) with screws
4
Connecting electric cable
D
for indoor and outdoor
Drain hose
E
1
F
Heating insulating material
Piping hole cover
G
4
1
1
2
Read this manual before installation
Explain sufficiently the operating means to the user
according to this manual.
9.Nipper
10.Gas leakage detector or
11.Measuring tape
Arrangement of piping directions
Rear left
Rear
Left
right
Right
Below
The marks from
The distance between the indoor unit and the floor should be
more than 2m.
soap-and-water solution
Attention must be paid to
the rising up of drain hose
A
to
G
in the figure are the parts numbers.
12.Reamer
G
F
A
C
9
10
D
E
Advertisement
Table of Contents
Related Manuals for Haier HSU-09HVD03/R2 - annexe 2
Summary of Contents for Haier HSU-09HVD03/R2 - annexe 2
-
Page 1: Installation Manual Of Room Air Conditioner
Rear left Rear Left right Change for fresh air tube(suit) Right Below Outlet joint The marks from in the figure are the parts numbers. The distance between the indoor unit and the floor should be No.001051 more than 2m. -
Page 2: Selection Of Installation Place
Before inserting power plug into receptacle, check the voltage without fail. The power source is the same as the corresponding name plate. Install an exclusive branch circuit of the power. A receptacle shall be set up in a distance where the power cable can be reached. Do not extend the cable by cutting it. Selection of pipe To this unit, both liquid and gas pipes shall be insulated as they become Iow temperature in operation. -
Page 3: Installation Of The Indoor Unit
In case of left side piping, cut away, with a nipper, the lid for left piping. In case of left-rear piping, bend the pipes according to the piping direction to the mark of hole for left-rear piping which is marked on heat insulation materials. - Page 4 Indoor unit 1. Insert the drain hose into the dent of heat insulation materials of indoor unit. 2. Insert the indoor/outdoor electric cable from backside of indoor unit, and pull it out on the front side, then connect them. 3. Coat the flaring seal face with refrigerant oil and connect pipes.
-
Page 5: Easily-Demount Cleaning Of Indoor Unit
5.Installation instruction on the indoor part of the fresh air device Two ways for the installation of indoor part, as illustrated: Way One (right direction): Take off the lid for right piping pipe,put the Outlet joint into the lid,then put the fresh air tube into the outlet jont. -
Page 6: Installation Of Outdoor Unit
Be careful that matters, such as wastes of sands, etc. shall not enter the pipe. The standard pipe length is 5m. If it is over 5m, the function of the unit will be affected. If the pipe has to be lengthened, the refrigerant should be charged, according to 20 g/m. But the charge of refrigerant must be conducted by professional air conditioner engineer. - Page 7 Otherwise, there will be refrigerant into air conditioner according to the amount marked on abnormal high pressure in the system to make it crack and lead to the name plate. personal injuries.
- Page 8 Please pour water in the drain pan of the indoor unit, and confirm that drainage is carried out surely to outdoor. In case that the attached drain hose is in a room, please apply heat insulation to it without fail.
-
Page 9: Disposal Requirements
The products are fulfilled with the requirements in the directive of other part must be done by a qualified installer in accor- 2002/95/EEC of the European parliament and of the council dance with relevant local and national legislation. -
