Hema HM-DVR2 User Manual

Dual channel discreet dash camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

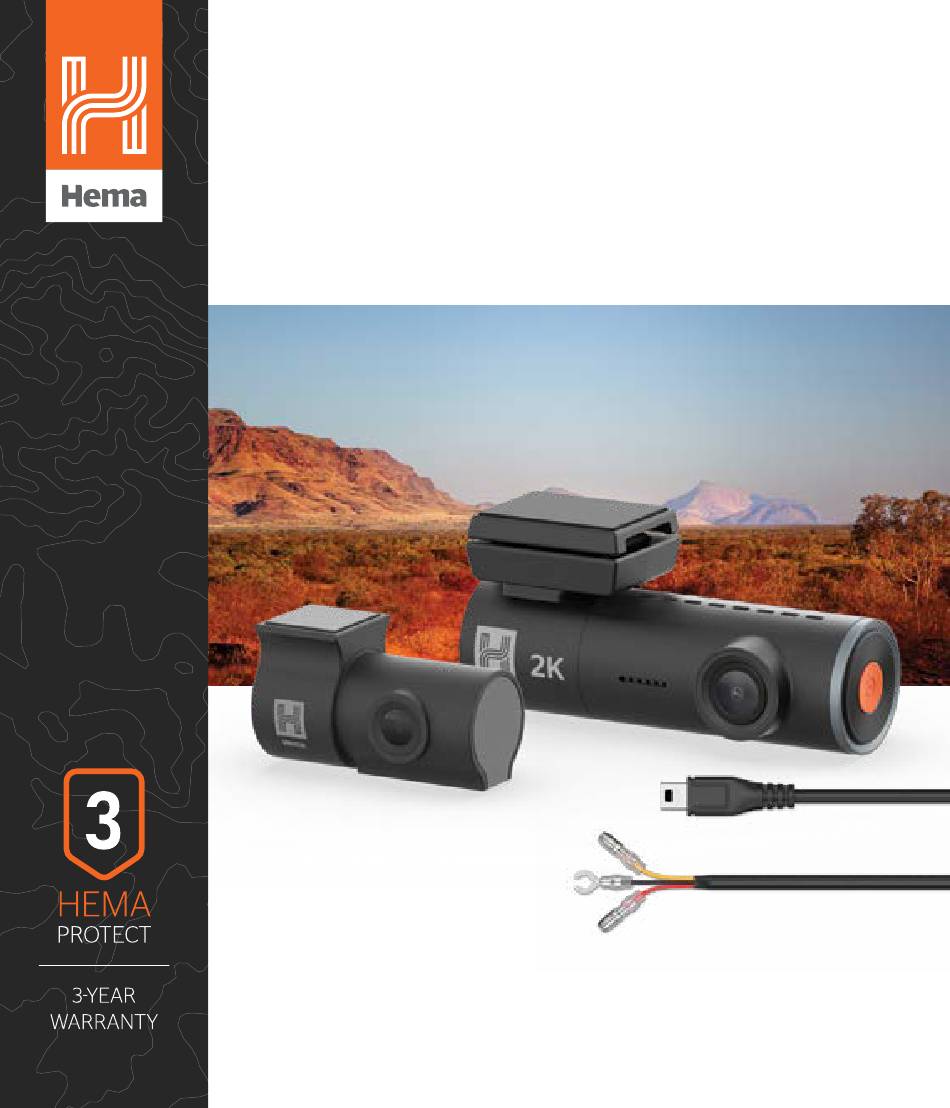

HM-DVR2
Dual Channel
Discreet Dash Camera
User Manual
hema.com.au | hema.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM-DVR2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hema HM-DVR2

Summary of Contents for Hema HM-DVR2

  • Page 1 HM-DVR2 Dual Channel Discreet Dash Camera User Manual hema.com.au | hema.co.nz...

  • Page 3: Table Of Contents

    NOTES ON MICRO SD CARD ....................4 FORMATTING THE INSERTED MICRO SD CARD ............5 PACKAGE CONTENTS ................6 PRODUCT OVERVIEW ................6 INSTALLATION INSTRUCTIONS ............7 HM-DVR2 INSTALLATION ....................7 REAR CAMERA INSTALLATION ..................8 THE 3-WIRE SMART HARDWIRE KIT ................9 5.3.1 PRODUCT INFORMATION ..................10 HARDWIRE KIT FEATURES ....................10...
  • Page 4 CONNECTING TO GROUND ..................29 5.12 SPECIFICATIONS .........................30 DASHCAM QUICK KEY FUNCTIONS ..........31 LED INDICATOR ........................32 DOWNLOADING AND INSTALLING THE HEMA-DVR APP .32 HEMA-DVR APP OPERATION ..................34 APP VIDEO PLAYBACK ......................34 DOWNLOADING VIDEOS FROM THE APP ..............35 SHARING VIDEOS ON SOCIAL MEDIA .................35 HEMA-DVR APP SETTINGS ..............

  • Page 5: Caution

    CAUTION • Ensure you are using your Dash Camera within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Please set the time and date before you use this device to record. •...

  • Page 6: Introduction

    INTRODUCTION Thank you for purchasing a Hema Dash Camera. We are certain that this product will give you trouble free operation while providing you with features that enhance your driving experience. Our products are designed to assist and aid the driver, not to replace the manual function of the person operating the vehicle.

  • Page 7: Formatting The Inserted Micro Sd Card

    FORMATTING THE INSERTED MICRO SD CARD Please download the HEMA-DVR App and connect your Dash camera with the downloaded app by following the steps as described in section 7.0 on page 32. Please enter the Settings Section and select "Format SD card".

  • Page 8: Package Contents

    PACKAGE CONTENTS HM-DVR2 Dash Camera Spare 3M Adhesive Sticker Internal Rear Camera 8m Rear Camera Cable Electrostatic Film x2 3-Wire Hardwire Kit 12V/24V Power Adaptor User Manual PRODUCT OVERVIEW DASH CAMERA Microphone 3M adhesive mount Mini USB connector (for power)

  • Page 9: Installation Instructions

    Remove the protective film off the HM-DVR2 mount and position the Dash Camera in the middle of the electrostatic film. Press down the base of the bracket by hand for 30 seconds to ensure that the adhesive mount is attached to the electrostatic film, and adjust the camera by rotating the barrel until it is capturing the entire road.

  • Page 10: Rear Camera Installation

    Press down the base of the bracket by hand for about 30 seconds to ensure that the adhesive sticker is properly attached to the electrostatic film. Connect the rear camera to the HM-DVR2 using the supplied rear camera cable. Run the cabling either through the roof lining or under the carpet.

  • Page 11: The 3-Wire Smart Hardwire Kit

    THE 3-WIRE SMART HARDWIRE KIT IMPORTANT: REFER TO YOUR VEHICLE OWNER’S MANUAL TO DETERMINE: • Location of the fuse box • How to access the fuse box • The type of fuse tap required It is highly recommended that you thoroughly read the installation instructions in this user manual.

  • Page 12: Product Information

    Mini USB connector. For the latest manual and product updates, please visit hema.com.au or hema.co.nz. HARDWIRE KIT FEATURES • Suitable for use in cars and trucks with with a 12V or 24V battery.

  • Page 13: Package Contents

    PACKAGE CONTENTS 5.5.1 HARDWIRE KIT Triple 22AWG Cables 5V DC output Red Input Connector Black Input Connector Yellow Input Connector Input Cable Control Box with Adhesive Pad Output Cable Output Connector...

  • Page 14: Accessories

    VEHICLE FUSE OPTIONS (USE ONLY ONE OPTION FOR INSTALLATION) ATS (Standard) Fuse Cable Mini Fuse Cable 10. Micro2 Fuse Cable 11. Micro Fuse Cable 5.5.2 ACCESSORIES Cable Ties x 4...

  • Page 15: Battery Drain Protection

    The hardwire kit will identify the lead acid battery type automatically (12V or 24V) and protect your battery from draining accordingly. SETTING THE PARKING MONITOR SWITCH Which is set as default (High) on the right side and is automatically selected to comply with all Hema dash camera models.

  • Page 16: Vehicle Battery Lead Acid State And Capacity

    VEHICLE BATTERY LEAD ACID STATE AND CAPACITY Use the table below to help determine the desired voltage cut-off level for battery drain protection. For example if the temperature is 38°C and you want to keep a 75% lead acid state capacity remaining in your battery when the hardwire kit cuts off output (meaning the battery voltage is approximately 12.4V) the cut- off voltage should be set at the 12.4V band.

  • Page 17: Hardwire Kit Installation

    HARDWIRE KIT INSTALLATION The location of the vehicle’s fuse box varies by vehicle make and model. Locations may include underneath the driver’s side dashboard, behind the glove box and underneath the central console. When in doubt, always refer to your vehicle owner’s manual to determine the location of the fuse box in your vehicle.

  • Page 18: Connecting Hardwire Kit To Your Dashcam

    FIG. 2 There are two main stages in the hardwire kit installation • Connecting the output cable to your dashcam • Connecting the input cables to your fuse box and grounding NOTE: Determine the location of your vehicle’s fuse box before commencing installation of the hardwire kit.

  • Page 19: Attaching The Usb Cable To The Dashcam

    5.10.1 ATTACHING THE USB CABLE TO THE DASHCAM * Note, images are for instruction purposes only, the actual dashcam in this kit may vary from the images. Insert the USB cable into your dashcam (Fig. 3a,3b). FIG. 3a FIG. 3b...

  • Page 20: Routing Output Cable From The Dashcam To Fuse Box

    5.11 ROUTING OUTPUT CABLE FROM THE DASHCAM TO FUSE BOX NOTE: You may need to consult your vehicle manufacturer for instructions on how to remove vehicle fittings (for example, the A-pillar panel) for routing the hardwire kit cables inside your vehicle and for where airbags are located so that these are not obstructed by the routed cables in case of deployment.
  • Page 21 NOTE: The A-pillar that is used to route the cable may not be at the driver’s side as shown. Please refer to your vehicle owner’s manual to determine the location of the fuse box in the vehicle. The output cable needs to be routed in the A-pillar closest to the fuse box.
  • Page 22 INSTALLING THE OUTPUT CABLES IN VEHICLE CONT’D FIG. 6 FIG. 7...
  • Page 23 INSTALLING THE OUTPUT CABLES IN VEHICLE CONT’D FIG. 8a FIG. 8b...
  • Page 24 INSTALLING THE OUTPUT CABLES IN VEHICLE CONT’D FIG. 9a FIG. 9b...

  • Page 25: Housing The Output Cable

    5.11.2 HOUSING THE OUTPUT CABLE Where the output cable from the A pillar meets the side of the dashboard, the output cable will then need to be routed towards the direction of the fuse box by concealing the cable along the side of the vehicle dash (Fig.
  • Page 26 HOUSING THE OUTPUT CABLE CONT’D FIG. 10b FIG. 11...

  • Page 27: Connecting To The Fuse Box

    FIG. 12 5.11.3 CONNECTING TO THE FUSE BOX NOTE: Refer to your vehicle’s fuse layout panel to determine the permanent power fuse for constant and accessories power feed. The fuse cable needs to be connected to the 12V/24V battery feed. Determine the fuse tap cable required for connection to your fuse box.
  • Page 28 ACCESSORIES POWER FUSE CONNECTION - RED CABLE Connect Hardwire Kit vehicle fuse fuse FIG. 13 Connect the red input connector to the fuse tap cable (Fig. 14a, 14b). Ensure the connection is secured. Insert the fuse tap into the fuse box (Fig. 15a, 15b). Tuck away any excess input cable behind the fuse box.
  • Page 29 CONNECTING TO THE FUSE BOX CONT’D FIG. 14b FIG. 15a...
  • Page 30 FIG. 15b CONSTANT POWER Fuse Connection - Yellow Cable Please follow the steps outlined above (Fig. 14 to Fig. 15) to connect the CONSTANT POWER fuse connection using the yellow input connector. NOTE: To determine constant power feed fuse, use a voltage meter.

  • Page 31: Connecting To Ground

    5.11.4 CONNECTING TO GROUND Locate an earth terminal/bolt or any vehicle bolt that is mounted on the chassis of the vehicle that is nearest to the fuse box (Fig. 16). Loosen the bolt and attach the black input cable eyelet to the bolt. Fasten the bolt.

  • Page 32: Specifications

    5.12 SPECIFICATIONS HARDWIRE KIT: CABLES RED INPUT BULLET PLUG OD4MM CONNECTOR BLACK INPUT ROUND RING TERMINAL, NICKEL PLATED, CONNECTOR OD10MM ID6MM L20MM INPUT CABLE THREE CABLES (RED: 12/24V ACCESSORY, YELLOW: 12/24V POWER, BLACK: GROUND), 2X22AWG, CONDUCTOR, SR-PVC INSULATION, PVC JACKET, UL1015/2586, 1M, 150MM CLEARANCE OUTPUT CABLE THREE CABLES, 2X22AWG CONDUCTOR;...

  • Page 33: Dashcam Quick Key Functions

    Reset To Default settings^ * Formatting the Micro SD card will delete all information on the inserted Micro SD Card and prepare the card to be used with the HM-DVR2. ^ Restoring to default settings will also change the WIFI password to default 12345678.

  • Page 34: Led Indicator

    LED INDICATOR The colour of the HM-DVR2 LED Light helps to indicate the following fuctions. Constant red: Not recording Constant blue: Recording in normal mode Blue flashing: Recording an emergency event Green flashing: Updating firmware Constant green: Video playback in App...
  • Page 35 For a step by step guide on connecting your Dash Camera to your smartphone please follow the steps below. On your smart device download the "HEMA-DVR" App from the Google Play Store if you are using an Android device, or the Apple App store if you are using an iPhone.

  • Page 36: Hema-Dvr App Operation

    HEMA-DVR APP OPERATION To use the HEMA-DVR App, your smart device will need to be connected to the dash camera WI-Fi connection. For instructions on connecting your dash camera to your smartphone's Wi-Fi, please follow the steps in the previous section.

  • Page 37: Downloading Videos From The App

    Press the Album Button. Select the video/videos and press the download button. The download will start and will save to your smartphone which can also be accessed through the HEMA-DVR App in the Folder name Local. SHARING VIDEOS ON SOCIAL MEDIA To share videos on Social Media, please follow the instructions below.

  • Page 38: Hema-Dvr App Settings

    HEMA-DVR APP SETTINGS MENU SETTING DESCRIPTION Microphone ON, OFF Turns microphone ON/OFF Loop 1 and 3 Loop recording allows you to set the duration Recording Minutes that the camera will record before creating a new clip Volume Off, Low, Controls the sound level of the built-in speaker...
  • Page 39 HEMA-DVR APP SETTINGS CONT' MENU SETTING DESCRIPTION Format SD Formats the Deletes all recorded data off the Micro SD Card. Card Micro SD card. Wi-Fi Changes the dash camera’s Wi-Fi's name and Settings password from default. Factory Restore factory settings.

  • Page 40: Warranty Terms And Conditions

    All costs involved in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics, will be borne by you. Please scan the QR code for Hema support Or visit Hema support at: https://support.hema.com.au Phone: +61 03 8331 4800...
  • Page 41 WARRANTY AND WARRANTY DISCLAIMER Hema has a limited warranty on whereby Directed warrants to you and only to you that this Hema product will be free from defects in materials and workmanship for three (3) years from the date of your purchase (unless a longer warranty period is required by law).
  • Page 42 In the event of any loss, damage or injury, you will not look to Hema to compensate you or anyone else. You release and waive for yourself and your insurer all subrogation and other rights to recover against Directed arising as a result of the payment of any claim for loss, damage or injury.
  • Page 43 The preceding preclusion and limitation of liability will also not apply to claims for damages arising out of loss of life, bodily injury or health impacts for which Hema may be liable, or for non- contractual liability.

  • Page 44: Notes

    10.0 NOTES...
  • Page 48 Hema®, Hema Maps® and Map Patrol® are registered trademarks of Hema Maps Pty Ltd. HERE® is a trademark of Here Technologies LLC. © 2024 Hema Maps Pty Ltd. © 2024 Hemax Digital Pty Ltd. Hema and Hema Maps are used under license by Directed Electronics.
