Summary of Contents for Bahner Feinwerktechnik JUPITER Duomatic S2

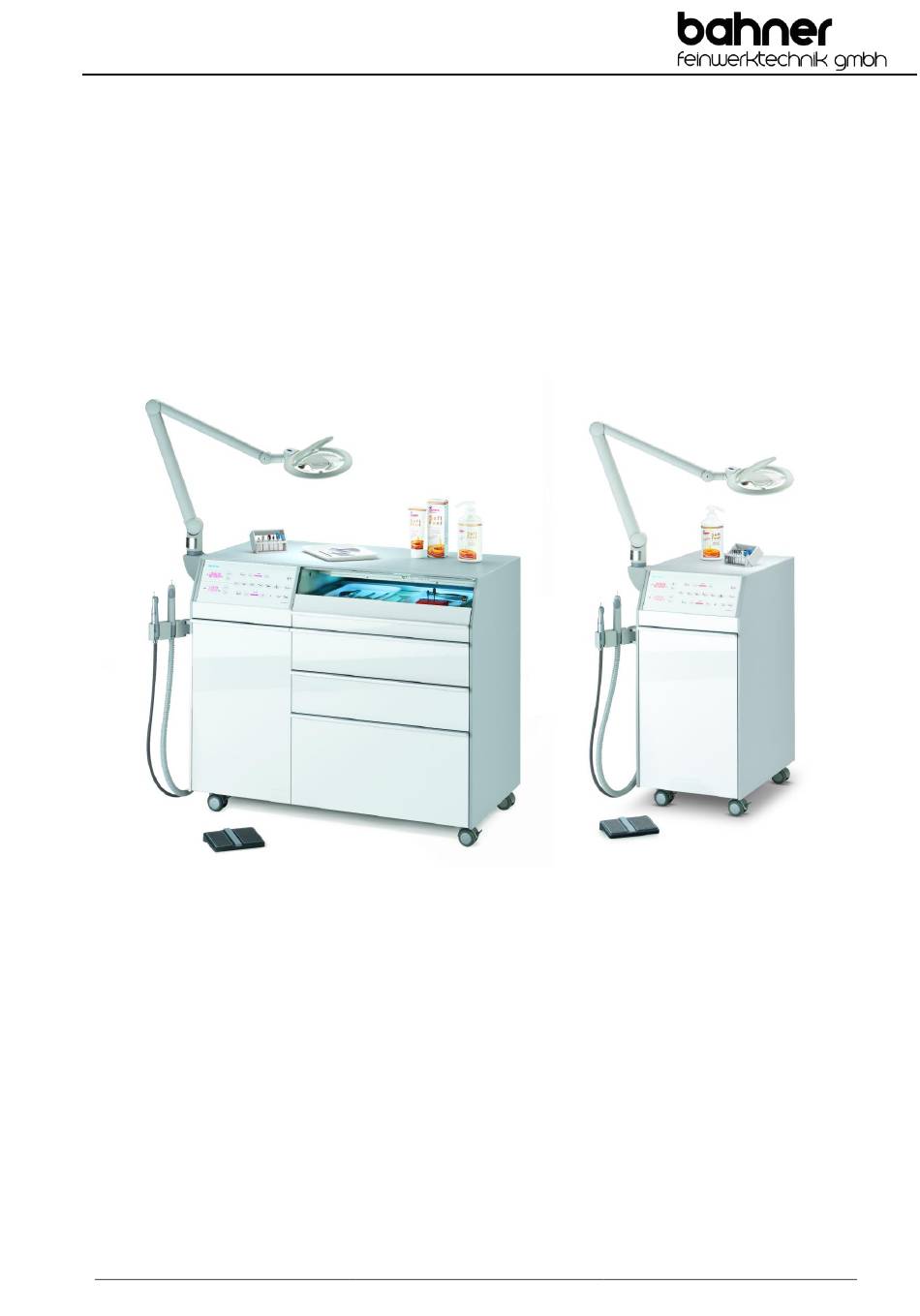

- Page 1 Instruction Manual JUPITER Duomatic S2 Foot Care Cabinet JUPITER Duomatic S2 & JUPITER Duomatic S2 Mini JUPITER Duomatic S2 JUPITER Duomatic S2 Mini Instruction Manual Release 11/2021 Release 11/2021 page 1 of 41...
- Page 2 This will help you to get the most out of the device and avoid costly repairs which can arise from incorrect use. We wish you every success with your new JUPITER Duomatic S2 foot care cabinet and hope you are completely satisfied with it.
-
Page 3: Table Of Contents
Instruction Manual JUPITER Duomatic S2 Table of Contents Device Description page Intended Use page Requirements of the Operator page Personnel and Client Safety page Important Notes on Operation page Security Information page Unpacking the Device and first-time Operation page Assembly of the Hand Piece Holder and the Hose Holder... -
Page 4: Device Description
Operator Requirements The JUPITER Duomatic S2 /-Mini unit is only to be operated by trained and instructed chiropodists, cosmeticians and nail designers who are familiar with the procedures and have the necessary training. -
Page 5: Personnel And Client Safety
Instruction Manual JUPITER Duomatic S2 Personnel and Client Safety Hazard note on the device. This sticker on certain parts of the device is intended to inform you of possible hazards. Please read the respective chapter in the instruction manual for detailed information. - Page 6 Instruction Manual JUPITER Duomatic S2 Safety Information The foot care cabinet must only be operated on a horizontal surface. There is no steadiness on uneven surfaces (5° or 10°). Make sure not to fully open several loaded drawers at once.
-
Page 7: Unpacking The Device And First-Time Operation
After removing the Jupiter Duomatic foot care cabinet from the packaging, check all parts for damages. The following components must be included in the package: JUPITER Duomatic S2 / JUPITER Duomatic S2 Mini foot care cabinet incl. Miele vacuum cleaner and accessories plus instruction manual... -
Page 8: Connection Of The Hand Piece Units
Filling the Spray Tank The JUPITER Duomatic S2 has a generously sized spray tank with a volume of around 500 ml. Depending on the spray setting selected, this quantity is sufficient for approximately 1 week in use. -
Page 9: Power Connection
Spray ON/OFF button. The device then goes into "Standby" mode. Your JUPITER Duomatic S2 is now ready for use. The above-mentioned sequence is repeated when the device has been disconnected from the mains and is then switched back on. -
Page 10: Automatic Spray Pre-Run At Start-Up
The unit will return to operation mode. UV Compartment (JUPITER Duomatic S2 only) The UV compartment is in operation when the mains switch is switched on. It is possible to switch the UV light on and off with the UV ON/OFF button on the front panel. -
Page 11: Control Panel
Instruction Manual JUPITER Duomatic S2 Control Panel The JUPITER Duomatic S2 hass a series of buttons and displays on its front panel to control the functions. Some of the buttons are equipped with small LEDs, to indicate the operating status. -
Page 12: Common Controls
Change direction of rotation Switch between anti-clockwise and clockwise rotation. An indicator lamp signals the selected direction. UV light ON/OFF (JUPITER Duomatic S2 only) You can switch the UV compartment lighting of your unit on and off via this button. - Page 13 Instruction Manual JUPITER Duomatic S2 Service interval display The service interval display is intended to inform users that the active hand piece requires regular maintenance. The operating hours are counted separately for each hand piece. The green LED is lit in normal operating status of up to 400 operating hours.
-
Page 14: Operating With Foot Switch
Instruction Manual JUPITER Duomatic S2 Operating with Foot Switch A particular advantage is the operation of the SATURN AT MICRO via remote foot switch. Note: Unshielded electrical devices or multiple receptions caused by reflection may interfere with the remote foot switch. -
Page 15: Using More Than One Unit In A Room - Foot Switch Coding
Instruction Manual JUPITER Duomatic S2 Using More Than One Unit in a Room – Foot Switch Coding If you wish to use several units of the same type in one room, each unit and its respective foot switch can be individually coded to a dedicated channel. -
Page 16: Changing The Rotating Instruments
Instruction Manual JUPITER Duomatic S2 Changing the Rotating Instruments Rotating instruments must be changed with the motor in idle mode only. Insert the rotating instruments (grinders and burrs) carefully into the head piece head. Make sure to fully insert the shaft of the instrument all the way to the stop. -
Page 17: Overload Protection
Instruction Manual JUPITER Duomatic S2 Spray Hand Piece The spray hand piece is equipped with a spray unit to spray the treatment area. The spray mist absorbs large portions of the callus / nail cutting dust that occurs during foot treatment work. -
Page 18: Maintenance And Disinfection
Instruction Manual JUPITER Duomatic S2 Maintenance and Disinfection All maintenance and disinfection operations that should be executed at regular intervals can be found on the following pages. Surveillance authorities, as for example your local health authority, may require proof of the performed maintenance operations. - Page 19 Instruction Manual JUPITER Duomatic S2 Further Information Rotating instruments have to be cleaned after every use. Always obey the cleaning and disinfection regulations stated by your local health authority and the instructions given by the instruments manufacturer. You can find some general instructions under the following links.
-
Page 20: Checking The Rotating Instruments
Instruction Manual JUPITER Duomatic S2 Checking Rotating Instruments Instruments which are often used, such as cutters, diamond grinders, etc. can bend at the shaft or the head. This causes uneven rotation and vibrations in the hand piece. Bent or uneven worn instruments can cause huge forces on chuck and bearings. This can lead to extensive damage. -
Page 21: Pump Maintenance
Instruction Manual JUPITER Duomatic S2 Pump Maintenance The JUPITER Duomatic S2 uses a peristaltic pump to move the spray liquid from the tank into the hand piece. The pump is located behind a cover plate on the left side of the cabinet. - Page 22 Instruction Manual JUPITER Duomatic S2 7 cm yellow black clamp clamp 5.) Remove the old tube from the pump housing and 6.) Detach both clamps from the old tube and attach ensure not to lose the two clamps. Mind the them to the new tube, so that the distance between orientation of the clamps.
-
Page 23: Changing The Dust Bag
Instruction Manual JUPITER Duomatic S2 Changing the Dust Bag When to change the dustbag? We recommend a weekly check of the dust bag change indicator. Operate the suction hand piece on the highest suction level and check the dust bag change indicator. -
Page 24: Maintenance Of The Uv Compartment
Instruction Manual JUPITER Duomatic S2 9.4.1 Change the Air Clean Filter Every time you start a new packet of dust bags, replace the Air Clean filter and filter for motor protection How to replace the Air Clean filter? 1. Open the dust compartment lid. -
Page 25: Hand Piece Maintenance
Instruction Manual JUPITER Duomatic S2 Hand Piece Maintenance This cleaning procedure is only to be performed if the power switch is set to "0" or if the power cable is disconnected. The motor itself is maintenance-free and should only be wiped occasionally with a damp cloth. -
Page 26: Cleaning The Hand Piece Housing
Instruction Manual JUPITER Duomatic S2 9.6.1 Cleaning the Hand Piece Housing Before changing the dust bag and before cleaning the interior of the hand piece, clean the hand piece housing. Step 1: The hand piece housing comes with a bayonet catch. To open it, hold the hand piece at its rear part and turn the front part approximately 45°... -
Page 27: Cleaning The Suction Hand Piece
Instruction Manual JUPITER Duomatic S2 9.6.2 Cleaning the Suction Hand Piece During operation and with every change of the rotating instrument, small amounts of abrasive dust can enter the inside of the hand piece. If this dust accumulates and hardens, it can impair and damage the hand piece mechanics. Therefore it is necessary to clean the hand piece mechanics on a regular base. - Page 28 Instruction Manual JUPITER Duomatic S2 Step 3: Step 2: Insert the test pin into the hand piece and push the Unscrew the attachment nut inside the hand piece by clamping chamber about 1 cm out of the bearing. using the cleaning key and remove it.
-
Page 29: Replacement Of The Front Bearings - Suction Hand Piece
Instruction Manual JUPITER Duomatic S2 Replacement of the Front Bearing – Suction Hand Piece 9.6.3 If you notice unusual sounds when working with the hand piece, the reason may be contamination of the bearing. The following illustrations show how you can replace it yourself:... -
Page 30: Components Of The Suction Hand Piece
Instruction Manual JUPITER Duomatic S2 9.6.4 Components of the Suction Hand Piece Item Qty. Illustration Hand piece head Cleaning key Attachment nut Test pin Clamping chamber Clamping bed Clamping pins Plastic sleeve Shaft Bearing Dust cap Coupling Release 11/2021 page 30 of 41... -
Page 31: Cleaning The Spray Handpiece
Instruction Manual JUPITER Duomatic S2 9.6.5 Cleaning the Spray Handpiece During operation and with every change of the rotating instrument, small amounts of abrasive dust can enter the inside of the hand piece. If this dust accumulates and hardens, it can impair and damage the hand piece mechanics. - Page 32 Instruction Manual JUPITER Duomatic S2 Unscrew the axial nut with a 10-cent coin or a suitable Insert the testing burr and push out the chuck assembly screwdriver. Take apart the chuck assembly. If you want to clean the parts in an ultrasonic bath, remove both ball bearings.
- Page 33 Instruction Manual JUPITER Duomatic S2 Insert the three clamping pins. Enclose the pins with your Attach the clamping bush fingers and slide the assembly into the rear shaft. Slide it into the front shaft. Attach the wave spring washer, the front and the rear ball bearing.
- Page 34 Instruction Manual JUPITER Duomatic S2 Your handpiece is now ready for use again. Slide the spray attachment onto the tip of the handpiece Screw the spray attachment back on. Make sure that it is and clip it onto the retaining clip.
- Page 35 Instruction Manual JUPITER Duomatic S2 Replacing the ball bearings If you notice unusual noises while working with the handpiece, this may be due to dirty or worn ball bearings. The ball bearings are available as spare parts and can easily be replaced while the chuck is being cleaned. See also step 13 of the cleaning instructions.
-
Page 36: Error Analysis
Instruction Manual JUPITER Duomatic S2 Error Analysis This error analysis should help the user to sort out minor malfunctions that may occur. If the suggested measures do not lead to success, please contact your local service partner. Problem Cause Measure... - Page 37 Instruction Manual JUPITER Duomatic S2 Parts List – Hand Piece FH40S_2020 Position Stück Abbildung Artikelnummer Spare handpiece 704210500 FH40S_2020 wave spring washer 704207453 4x6x0,12 Handpiece housing 704210505 FH40S_2020 O-Ring 15 x 1,5 for 704210409 handpiece housing Axial nut FH40S_2020 704210203...
-
Page 38: Technical Data
Device fuse 20x5 slow blow 10A, low breaking capacity 1500A Bahner Feinwerktechnik GmbH reserves the right to make any technical and visual changes to its products at any time and without prior notification. Release 11/2021 page 38 of 41... -
Page 39: Information Concerning Electromagnetic Compatibility
Instruction Manual JUPITER Duomatic S2 12.1 Information concerning electromagnetic compatibility Manufacturer's declaration concerning electromagnetic compatibility Emitted interference Passed requirements Test standard Wire-related EN 550 11 radio interference emissions Class B (0.15 MHz - 30 MHz) Electrical field strength Class B... -
Page 40: Warranty
Warranty Dear customer, You have made a good choice with the JUPITER Duomatic S2. Our foot care cabinets are subject to continuous checks during manufacture and are of outstandingly high quality and reliability, with a long service life. The defects liability period covers 12 months from the date of purchase. The liability is limited to the repair or the exchange of the device. - Page 41 Instruction Manual JUPITER Duomatic S2 Bahner Feinwerktechnik GmbH Wilthener Strasse 32 02625 Bautzen...
