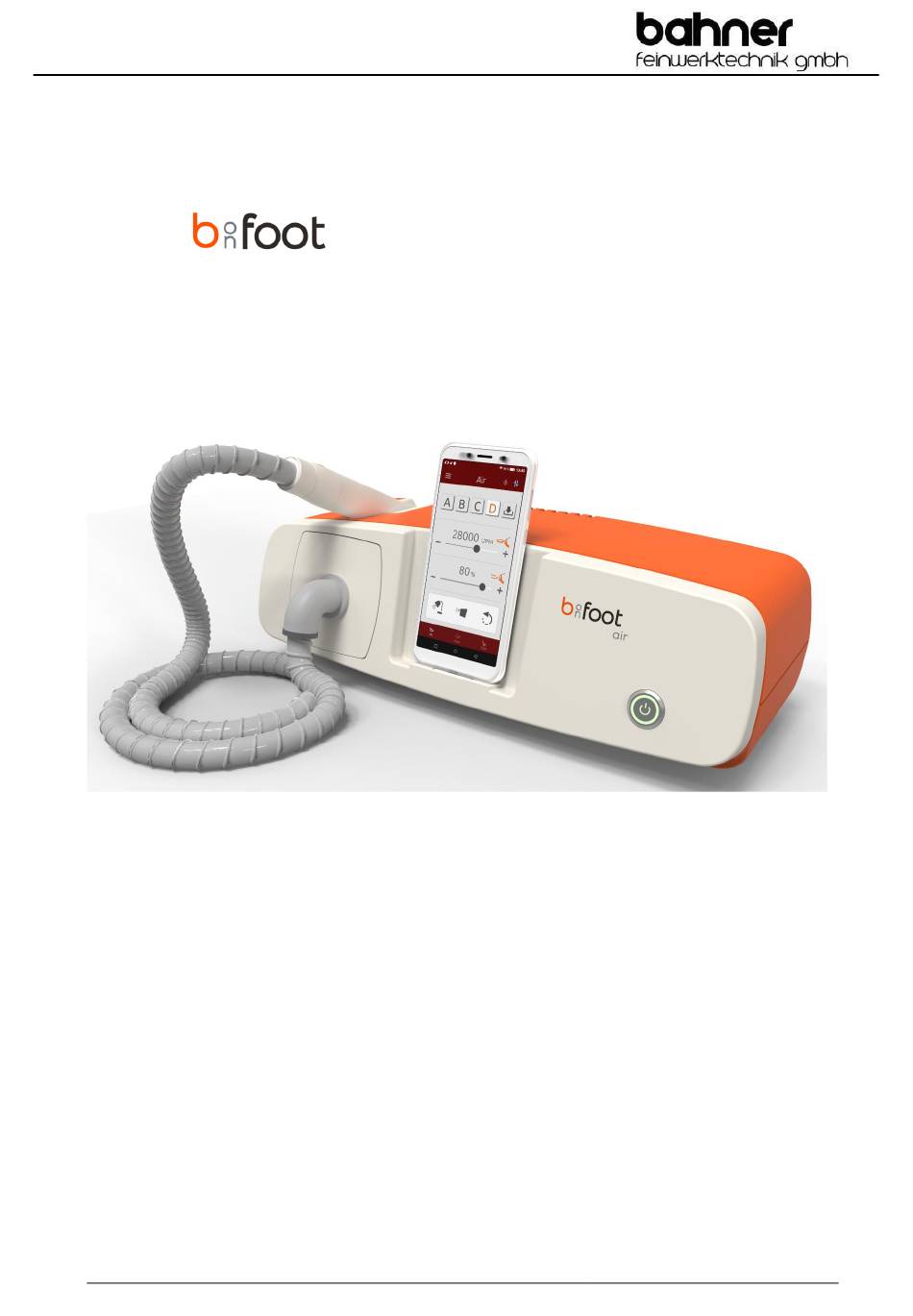

- Page 1 Air suction device – User manual Air suction device User manual Published 10/2019 UMN Air 10/2019 Page 1 of 28...
-
Page 2: Table Of Contents
Air suction device – User manual Contents Product description ........................4 Symbols used in this manual ......................5 Package contents .......................... 5 Applications ........................... 6 Operator requirements ......................... 6 Personnel and client protection ....................6 Safety ............................6 Getting started ..........................7 8.1. - Page 3 Air suction device – User manual 10.2. Maintenance of the motor hand piece ..................22 10.3. Protection and inspection of the automatic clamping mechanism ........... 22 10.4. Cleaning the automatic clamping mechanism ................23 Troubleshooting .......................... 25 Spare parts ..........................26 Technical specifications .......................
-
Page 4: Product Description
You can also download and print out the instructions at www.b-on-foot.de. We hope you enjoy using your Air suction device and wish you great success. Sincerely, Bahner Feinwerktechnik GmbH 1. Product description Dust bag compartment Hand piece... -
Page 5: Symbols Used In This Manual
In case of replacement or repair, the original packaging must be used when returning the item. Please note that Bahner Feinwerktechnik GmbH accepts no responsibility for any damage caused as a result of failure to comply with this instruction. -
Page 6: Applications
Air suction device – User manual 4. Applications The Air suction device is designed for cosmetic foot care, pedicures and manicures. Attachments such as files, drills and grinding bits can be fitted onto the rotating motor hand piece. These interchangeable bits are ideal for quickly and effectively removing calluses, corns, nails, etc. -
Page 7: Getting Started
Air suction device – User manual 8. Getting started Place the device in a safe, suitable location. Plug the power cable into the power socket on the left side of the device and the other end into a mains outlet. - Page 8 Air suction device – User manual Protecting your phone You will be prompted to enable device protection to prevent unauthorised access to your smartphone. You can choose whether you want to secure the phone with a pattern lock, PIN code or password. If you prefer not to enable the device protection, you can tap NO THANKS and then NEXT.
-
Page 9: Google Play Store
Air suction device – User manual 8.2. Google Play Store Use the Google Play Store to download apps to your phone. The applications found in the Google Play Store can either be free or paid. 8.2.1. Opening a new Google Play Store account To download applications from the Google Play Store, you must first sign in to a Google Play account. -
Page 10: Operating Features Of The Air Suction Device
Air suction device – User manual 9. Operating features of the Air suction device Since the Air suction device can only be operated via the b-on-foot app on the smartphone, the front panel of the device only features an on/off button and a docking station for the smartphone. All the features available on the Air suction device can be adjusted via the app. - Page 11 Air suction device – User manual To activate, swipe down from the top of the screen until you see the following screen: Wi-Fi Bluetooth Mobile data Flight mode Auto-rotate Location Power saver Do not disturb Torch Night mode Mute Screenshot Then tap the Bluetooth and Location icons to enable these features.
-
Page 12: Launching The B-On-Foot App
Air suction device – User manual 9.2. Launching the b-on-foot app To access the b-on-foot app, drag the bottom icon bar up. All apps available on your smartphone will now be displayed. Then briefly tap the b-on-foot icon to get started. Switch on the device using the button on the front. -
Page 13: Operating The Hand Piece
9.4. Operating the hand piece The hand piece is operated using a total of 7 buttons and a slider in the app, which allow the b-on-foot Air to be adjusted to the specific foot care requirements of each client. The current speed (RPM) is displayed in the 5-digit speed range in the upper half of the screen. - Page 14 Air suction device – User manual Buttons explained: Hand piece motor OFF: When this button is grey, it indicates the hand piece motor is switched off. In suction mode, the hand piece motor off status automatically ensures the suction function is switched off. It turns on again, as soon as the hand piece motor is switched on.
-
Page 15: Operating The Suction
You also have the option of using the smartphone to operate other b-on-foot Air devices. The smartphone supplied is not assigned exclusively to the foot care device with which it is delivered. -
Page 16: Music Playback
Your phone automatically searches for all available devices and lists them along with the known devices. To connect to the music module of your b-on-foot Air, tap the device named b-on-foot Air Sound followed by the serial number of the desired device in the available devices list. If the smartphone has previously been connected to the music module of your b-on-foot Air device, the smartphone will automatically connect to the last connected device as soon as the smartphone’s Bluetooth has been activated or when the music module of the foot care device is linked. -
Page 17: Other App Features
Air suction device – User manual If your device does not appear in the list of available devices, check whether your b-on-foot Air is turned on and within range of the smartphone. If necessary, you can also conduct a new search for available devices by tapping the Refresh button in the upper right corner of the screen. -
Page 18: My Devices
However, if over time you have the feeling that the handpiece motor behaves differently than after purchase or you want to connect a new handpiece to your b-on-foot Air, you can have the motor relearned using this menu item. -
Page 19: Contact
An internet connection is required to contact us via the contact form. 9.8.7. Info In the Info section you will find all information about the b-on-foot Air device and the installed app. In the event you require technical support, please note all the relevant details regarding your foot care device and pass this information on to the customer service department at Bahner Feinwerktechnik GmbH. -
Page 20: Changing The Rotating Bit
Air suction device – User manual Do not clean sharp-edged objects. Attach the new dust bag to the cable suction tube. Please make sure that you press the dust bag on the black plastic ring and this then noticeably engages on the cable suction tube. Now insert the new dust bag into the device. - Page 21 Air suction device – User manual Daily disinfection In case of visibly contaminated surfaces (blood, pus, secretions, etc.), the surfaces must be disinfected immediately after the patient has been treated and the respective exposure time of the disinfectant must be adhered to. Weekly disinfection Change the dust bag whenever ¾...
-
Page 22: Maintenance Of The Motor Hand Piece
Air suction device – User manual 10.2. Maintenance of the motor hand piece The motor itself is maintenance-free and should only be wiped down with a slightly damp cloth. Never use oil or oil-based sprays to lubricate the motor hand piece. This cleaning procedure may only be carried out when the device is unplugged from the mains. -
Page 23: Cleaning The Automatic Clamping Mechanism
Air suction device – User manual The following steps illustrate how to clean the hand piece: 10.4. Cleaning the automatic clamping mechanism Open the hand piece by twisting the rear section of the hand piece casing. Press the inner core of the hand piece with motor out of the front section of hand piece casing. If necessary, disconnect the inner core of the hand piece with motor from the connector. - Page 24 Air suction device – User manual If necessary, unscrew the motor from the inner core of the hand piece. When reassembling, insert the inner core with motor into the front section of the hand piece casing. Place the front and rear sections of hand piece casing back together and screw clockwise to close.
-
Page 25: Troubleshooting
If this is not sufficient, the extraction tool supplied can be used. 11. Troubleshooting The following steps should help you to solve minor problems that may arise without further assistance. If the measures recommended below do not provide the required remedy, please contact Bahner Feinwerktechnik GmbH. Problem... -
Page 26: Spare Parts
Device including hand piece 1800 g, hand piece 146g, power cable 800 g. Bahner Feinwerktechnik GmbH reserves the right to make technical and optical modifications to its products at any time without prior notice. No electromagnetic interactions are known to occur between this device and other devices. -
Page 27: Information On Electromagnetic Compatibility
Air suction device – User manual 14. Information on electromagnetic compatibility Manufacturer's Declaration on Electromagnetic Emissions This device is intended for use in the electromagnetic environment specified below. The user should ensure that use is made in such an environment. Interference Requirements meet Test standard... -
Page 28: Warranty
Air suction device – User manual 15. Warranty, Dear Customer, Thank you for choosing to purchase the b-on-foot Air suction device, an excellent choice. Our pedicure devices are produced under strict manufacturing guidelines and are known for high quality, functional reliability and long service life.
