Making Connections,
Part 1: Audio Output

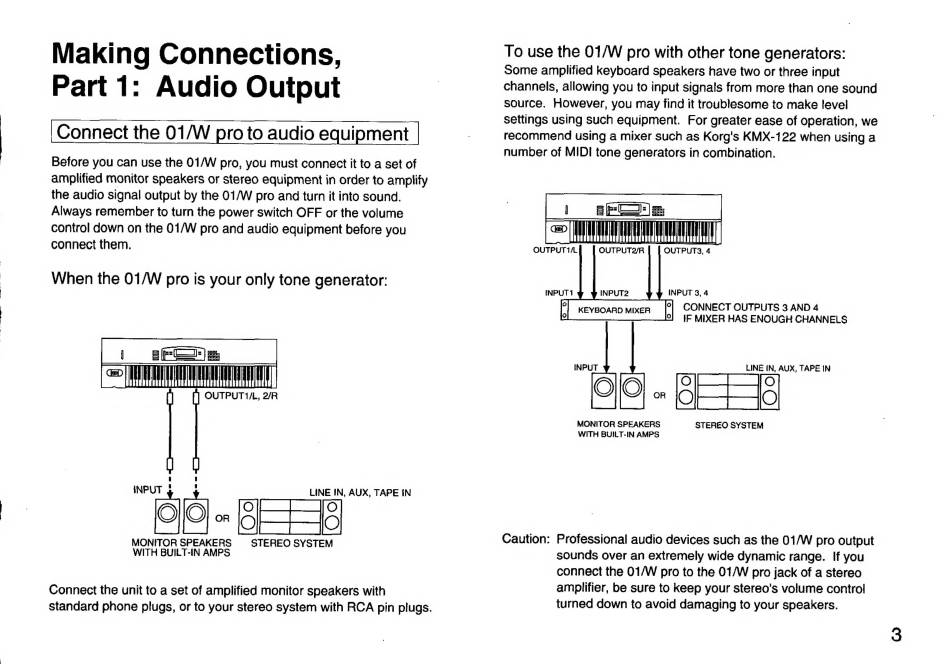

Connect the 01/W pro to audio equipment
Before you can use the 01/W pro, you must connect it to a set of
amplified monitor speakers or stereo equipment in order to amplify
the audio signal output by the 01/W pro and turn it into sound.
Always remember to turn the power switch OFF or the volume
control down on the 01/W pro and audio equipment before you
connect them.
When the 01/W pro is your only tone generator:
| BESTS
E
OUTPUT1/L, 2/R
LINE IN, AUX, TAPE IN
"(0 - BEE
MONITOR SPEAKERS STEREO SYSTEM
WITH BUILT-IN AMPS
Connect the unit to a set of amplified monitor speakers with
standard phone plugs, or to your stereo system with RCA pin plugs.
To use the 01/W pro with other tone generators:
Some amplified keyboard speakers have two or three input
channels, allowing you to input signals from more than one sound
source. However, you may find it troublesome to make level
settings using such equipment. For greater ease of operation, we
recommend using a mixer such as Korg's KMX-122 when using a
number of MIDI tone generators in combination.
| stella
= TT
OUTPUT2/R OUTPUTS, 4
INPUT1 INPUT2 INPUT 3, 4
P] Kevsoaromner | CONNECT OUTPUTS 3 AND 4
IF MIXER HAS ENOUGH CHANNELS
LINE IN, AUX, TAPE IN
- oF + 4g
MONITOR SPEAKERS STEREO SYSTEM
WITH BUILT-IN AMPS
Caution: Professional audio devices such as the 01/W pro output
sounds over an extremely wide dynamic range. If you
connect the 01/W pro to the 01/W pro jack of a stereo
amplifier, be sure to keep your stereo's volume control
turned down to avoid damaging to your speakers.
