nCase M2 Assembly Manual page 2

Flatpack Assembly Manual
13
17
14
11
15
16
12
12
Extra Accessory
11 Glass Window Panel
12 Slotted Window Panel
13 Power Supply Bracket - ATX
14 Front l0 Cover - Round
15 Front l0 Cover - Angle
16 Tall Feet
17 VGPU Kit
(lnclude PCle Riser Cable + Bracket)
5
4
6
7
3
8
1
9
2

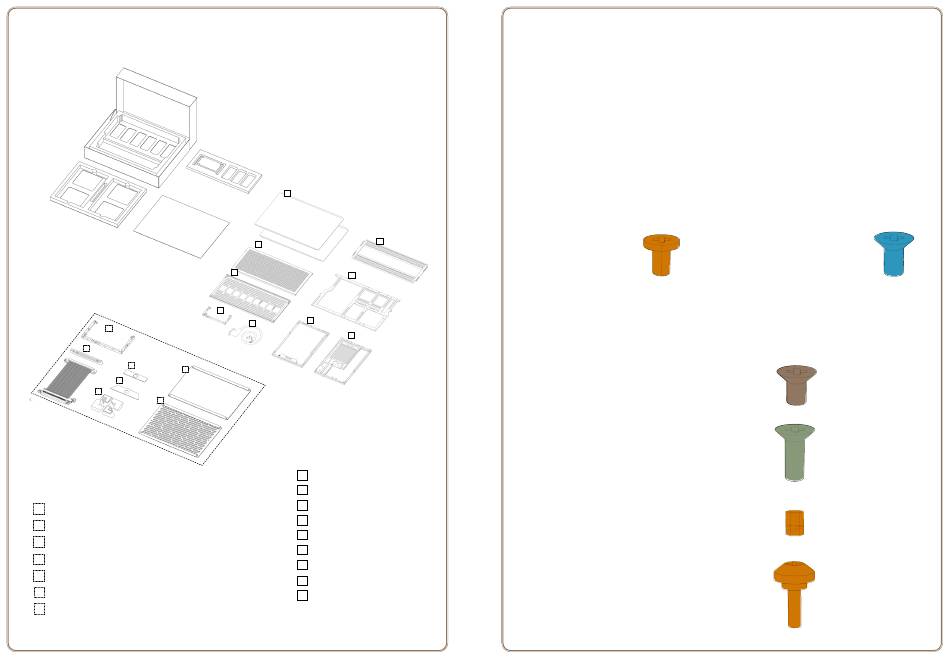

Parts
Front Panel
1
2 Rear Panel
3 Motherboard Tray
Fan + Radiator Bracket
4
5 Side Panels x2
6 Top Panel
7 Bottom Panel
8 Power Supply Bracket - SFX
9 Power Supply Inlet Cable
Flatpack Assembly Manual
DO NOT overtighten screws. Once resistance is encountered,
do not tighten more than one-quarter turn.
Each fastener is different in length or head-shape, and putting them next to
each other is a good way to identify them.
Screw-5
M3 Flat Sunk Screw
This screw works for all of the steps in this
manual. One-screw-fits-all is easier to build.
This screw is custom designed to work with
both regular and countersunk holes.
CScrew-4
M3 Countersunk Screw
PSbracket-10
M3 PowerSupplyBracket Screw
Standoff-6
M3 FemaleStandoff Screw
Thumbscrew-10
M3 Thumb Screw
CScrew-6
OR
M3 Countersunk Screw
This screw only works for countersunk holes,
and has a slightly stronger lock.
