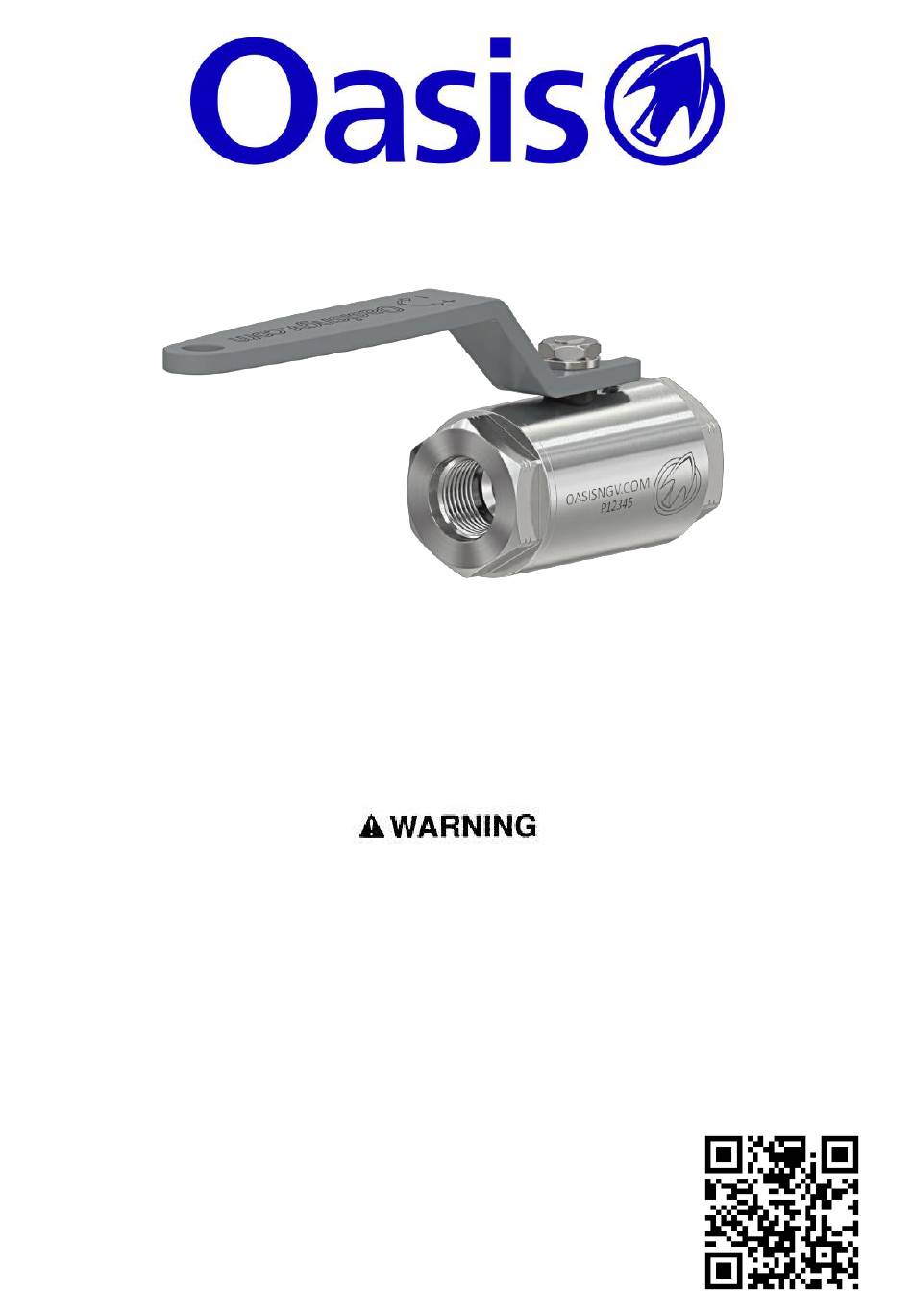

BV900 Series
Ball Valve SAE
Instruction Manual
Failure to follow these instructions or to properly install and maintain this equipment could result in gas leak-
age, fire or explosion causing property damage and personal injury or death.
Oasis products must be installed, operated and maintained by trained and competent personnel in
accordance with all applicable local codes, rules and regulations in addition to the Oasis Instructions.
Oasis Engineering Ltd. will not be held liable in such circumstances where installation, operation and
maintenance procedures were performed by incompetent personnel resulting in improper assembly, unsafe
operation, equipment damage or personal injury.
Oasis recommends that all service technicians should watch the Product Servicing Video before attempting to
service this part.
Oasis Engineering Ltd
129 Birch Avenue, Tauranga, New Zealand.
T: +64 7 928 3808
E: info@oasisNGV.com
W: www.OasisNGV.com
Instruction Manual
Advertisement
Related Manuals for Oasis BV900 Series
Summary of Contents for Oasis BV900 Series
- Page 1 Oasis products must be installed, operated and maintained by trained and competent personnel in accordance with all applicable local codes, rules and regulations in addition to the Oasis Instructions. Oasis Engineering Ltd. will not be held liable in such circumstances where installation, operation and maintenance procedures were performed by incompetent personnel resulting in improper assembly, unsafe operation, equipment damage or personal injury.
- Page 2 High pressure gas and gas equipment can cause serious harm to both infrastructure and personnel if safety precautions are not followed. Oasis recommends considering the use of the following PPE when working with high pressure along with any other site specific health and safety requirements:...
-
Page 3: Installation Instructions
O-ring first use with Snoop or soapy water. should neatly fill the void creating the seal. Faces touch O-ring BV900-INS-02 2524 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice. - Page 4 BV903 = 13mm BV903 = 34mm BV904 = 13mm BV904 = 34mm BV906 = 19mm BV906 = 50mm BV908 = 19mm BV908 = 50mm BV900-INS-02 2524 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 5 1 x Cap O-ring 1 x Cap Back-up O-ring 1 x Locking Tab* 2 X SAE O-ring * Only used when servicing actuated ball valves. The Complete Oasis Seal Kit must be used Tools Required Pick Tool Anti Seize Grease Cleaner (Warm Soapy...
- Page 6 1. Unscrew stem nut. Open and close valve to ensure all trapped gas is released. 6.Remove ball. 4. Remove end cap. 5.Discard seat. BV900-INS-02 2524 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 7 7. Remove stem first and discard. Do not scratch body 10. Clean body and end cap. Visually inspect 9. Remove cap O-rings and discard. parts for damage. BV900-INS-02 2524 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 8 1. Apply grease to end cap O-rings and fit to end cap. Apply anti-seize to thread. 2. Install first new seat 3. Apply grease to stem O-ring and insert stem assembly. Click BV900-INS-02 2524 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 9 Servicing Assembly 4. Insert Ball. 5. Install second new seat BV900-INS-02 2524 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 10 BV906=160Nm BV908=160Nm 7. Install gland and screw on handle nut. 8. Tighten stem nut. Recommended Handle Nut Torques: BV902=3Nm BV903=3Nm BV904=3Nm BV906=6Nm BV908=6Nm BV900-INS-02 2524 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 11 11. Check for leaks on first use using snoop or soapy water. Important: Actuate valve 4 times before use to ensure initial sealing. BV900-INS-02 2524 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
