SERVICE
CLOTHES DRYER
DVE45R6100C/A3
"This document can not be used without Samsung's authorization"

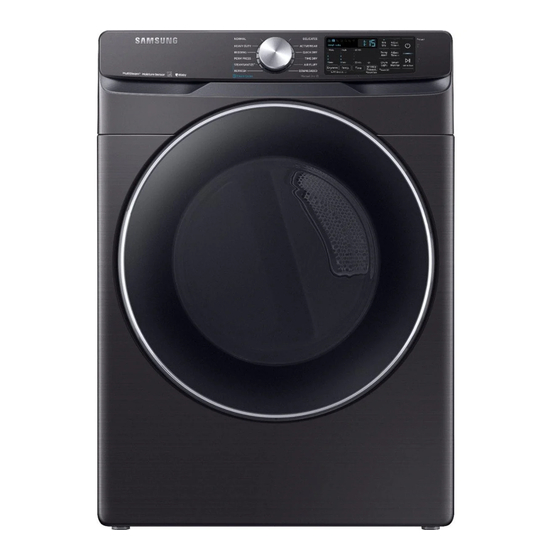

CLOTHES DRYER
Basic Model : DV5500M
Project Name : DV6000R
Model Code : DVE45R6300V/A3
DVE45R6300P/A3
DVE45R6300W/A3
DVG45R6300V/A3
DVG45R6300P/A3
DVG45R6300W/A3
Manual
1. Safety Instructions
2. Features and
3. Disassembly and Reassembly
4. Troubleshooting
DVE45R6100C/A3
DVE45R6100P/A3
DVE45R6100W/A3
DVG45R6100C/A3
DVG45R6100P/A3
DVG45R6100W/A3
CONTENTS
Advertisement
Table of Contents
Related Manuals for Samsung DV5500M
Summary of Contents for Samsung DV5500M
- Page 1 Model Code : DVE45R6300V/A3 DVE45R6100C/A3 DVE45R6300P/A3 DVE45R6100P/A3 DVE45R6300W/A3 DVE45R6100W/A3 DVG45R6300V/A3 DVG45R6100C/A3 DVG45R6300P/A3 DVG45R6100P/A3 DVG45R6300W/A3 DVG45R6100W/A3 SERVICE Manual CLOTHES DRYER CONTENTS 1. Safety Instructions 2. Features and 3. Disassembly and Reassembly 4. Troubleshooting DVE45R6100C/A3 “This document can not be used without Samsung's authorization”...
-
Page 2: Table Of Contents
Component Testing Procedures ........... . 27 “This document can not be used without Samsung's authorization”... -
Page 3: Safety Instructions
17. Operate time dry for 20 minutes after service and check wheter HE error occurs or not. When HC error occurs, check the terminal wiring of compressor. It may cause desorption phenomenon of the pin for the wiring of compressor. Safety Instructions _ 3 “This document can not be used without Samsung's authorization”... -
Page 4: Important Safety Information
21. Always read and follow manufacturers instructions on packages for laundry aids. Heed all warnings or precautions. To reduce risk of poisoning or chemical burns, keep products away from children at all times, preferably, in a locked cabinet. 4 _ Safety Instructions “This document can not be used without Samsung's authorization”... - Page 5 DO NOT have a fuse in the neutral or ground circuit. A fuse in the neutral or ground circuit could result in an electrical shock. DO NOT use an extension cord with this appliance. DO NOT use an adapter plug with this appliance. DO NOT pinch the power cord. Safety Instructions _ 5 “This document can not be used without Samsung's authorization”...
-
Page 6: Features And
4-way Vent (Elec.) You can install the exhaust vent in the following four (4) positions: back, either side, bottom. You can use “Delicate dry” with tumble dry. Samsung dryer can save your clothes Delicate Dry damage by high temperature heat. -
Page 7: Product Dimension
90° D. Depth Product-inches (mm) 31.5 (800) Water pressure-psl (kPa) 20 - 116 (137 - 800) NET weight lb (kg) 123.5 (56) Electric (W) 5300 Heater Rating Gas (BTU/hr) 20000 “This document can not be used without Samsung's authorization”... - Page 8 Side by side Installation 5.9 In. (150 mm) 6 In. (152 mm) 1 In. (25 mm) 1 In. (25 mm) 1 In. (25 mm) 5.9 In. (150 mm) 7.1 in. (180 mm) “This document can not be used without Samsung's authorization”...
-
Page 9: Comparing With Existing Models
Gas - 215liter ↓ Gas - 215liter ↓ Gas - 270liter ↓ (kWh/cycle // Liter/cycle) Yearly Energy Consumption 607kWh / year (Elec) 607kWh / year (Elec) 644kWh / year (Elec) (kWh/year) “This document can not be used without Samsung's authorization”... -
Page 10: Options
2-4. OPTIONS SPECIFICATIONS Item Code Remarks MANUAL-BOOK DC68-03381T Y connector DC67-00324A Default Water Hose DC97-15648A (Canadian models only) Short Water Hose DC97-15249A “This document can not be used without Samsung's authorization”... -
Page 11: Disassembly And Reassembly
General tools for the after service. Long Nose Pliers) The tool for disassembling the fan on the back. C-Ring Jig Ease insertion and separation of C-Ring. Disassembly and Reassembly _ 11 “This document can not be used without Samsung's authorization”... -
Page 12: Standard Disassembly Drawings
3. Remove 4 screws from the Control Panel. Control Panel 4. Unplug 2 Housings. 5. Remove it from the unit. After reassembly try every button, working properly. 12 _ Disassembly and Reassembly “This document can not be used without Samsung's authorization”... - Page 13 8. Re-insert the two screws that held the lever holder into the same screw holes, and then tighten. Disassembly and Reassembly _ 13 “This document can not be used without Samsung's authorization”...
- Page 14 Insert screws, and then tighten as shown. 13. Re-attach the remaining screws to the remaining holes above and below the lever holder, and then tighten. 14 _ Disassembly and Reassembly “This document can not be used without Samsung's authorization”...
- Page 15 4. Remove Frame Front. Incandescent Lamp 5. Remove 1 screws from Touch Sensor & Removal Touch Sensor. After reassembly check the Touch Sensor work properly through test mode. Disassembly and Reassembly _ 15 “This document can not be used without Samsung's authorization”...
- Page 16 Carefully spread the cabinet as needed to get extra clearance. But, take care not to deform the cabinet. Front & Rear Roller (After removing 1. After remove Holder-Shaft, separate each Roller. Drum Back) 16 _ Disassembly and Reassembly “This document can not be used without Samsung's authorization”...
- Page 17 4. Remove 1 Housing Motor. 5. Remove 2 Housing Belt Cut. Off Switch. 6. Remove 3 Screw from Motor-Bracket. 7. Separate Assy Motor in Bottom Plate. Disassembly and Reassembly _ 17 “This document can not be used without Samsung's authorization”...
- Page 18 11. Remove 2 Spring Plate Using a long-nose plier. 12. Remove 1 Screw Belt Cut Off Switch. 13. Remove Holder Shaft and Roller-Idler. After reassembly check the Motor work properly. 18 _ Disassembly and Reassembly “This document can not be used without Samsung's authorization”...
- Page 19 3. Remove the Duct-Exhaust. 1. Unplug the unit. 2. Remove Top Cover. Thermistor 3. Remove 1 screw from the Assy Drum Back. To remove the screw, use long tools. Disassembly and Reassembly _ 19 “This document can not be used without Samsung's authorization”...
- Page 20 2. Remove 6 Housing Heater-Terminals. Heater 3. Remove 2 screw from Heater Die. 4. Separate Heater in Drum-Back. Reassembly procedures are in the reverse order of dissasembly procedures. 20 _ Disassembly and Reassembly “This document can not be used without Samsung's authorization”...
-
Page 21: Troubleshooting
Error Recall mode reminds users of the last error that was detected. DVE(G)45R6300*/6100* : Dryness + Wrinkle Prevent In Error Recall mode, the last error that was detected appears. If no error has been found, nothing is displayed. Troubleshooting _ 21 “This document can not be used without Samsung's authorization”... -
Page 22: Special Features
You can choose from TOWELS, SANITIZE, SHIRTS, JEANS, WOOL, ECO NORMAL, SMALL LOAD, LOW TEMP., RACK DRY, and WRINKLE AWAY. 2. Press Power on your dryer. 3. Turn the Cycle Selector to DOWNLOADED. 4. Press and hold Start/Pause (Hold to Start). 22 _ Troubleshooting “This document can not be used without Samsung's authorization”... - Page 23 You don’t need a separate app to create your account. NOTE If you have a Samsung account, use the account to log in. A registered Samsung smartphone user automatically logs in. To register your appliance to SmartThings 1.
-
Page 24: Trouble Diagnosis
• For the best drying results, dry heavy items and light weight items separately. 24 _ Troubleshooting “This document can not be used without Samsung's authorization”... - Page 25 Sensor Dry automatically senses the moisture in the load and shuts the dryer off when the Extended time. selected dryness level is reached. The drying time can change according to the type and amount of laundry. See the cycle chart for reference. Troubleshooting _ 25 “This document can not be used without Samsung's authorization”...
-
Page 26: Maintenance
Be careful not to scratch or damage the surface. ■ Exhaust System • Check and clean the exhaust system on a yearly or regular basis to maintain optimum performance. • 26 _ Troubleshooting “This document can not be used without Samsung's authorization”... -
Page 27: Component Testing Procedures
- Terminal: “COM” - “NO” (1-2): ∞ Ω Door Switch 2. Door switch: On - Terminal: “COM” - “NC” (1-3): ∞ Ω - Terminal: “COM” - “NO” (1-2) < 1Ω 125V, 10A Troubleshooting _ 27 “This document can not be used without Samsung's authorization”... - Page 28 Switch shown in start position Switch (Motor) Start = Contact closed • 238.23 kΩ at 25°C (77°F) Thermistor • Resistance value < 1Ω Radiant sensor (10RS) Gas • 120V 28 _ Troubleshooting “This document can not be used without Samsung's authorization”...
- Page 29 Valve 6-7: Resistance value approx. 1000Ω • 120V, 60Hz, 120A • Resistance value 40~400Ω Igniter (101D) • 120V, 4.5A Thermostat • Resistance value < 1Ω (60T21 Hi-Limit) • 230F-50F 250V, 25A (60T2) Troubleshooting _ 29 “This document can not be used without Samsung's authorization”...
- Page 30 North & Latin America gspn3.samsungcsportal.com China china.samsungportal.com This Service Manual is a property of Samsung Electronics Co.,Ltd. © 2019 Samsung Electronics Co.,Ltd. All Any unauthorized use of Manual can be punished under applicable rights reserved. International and/or domestic law.
