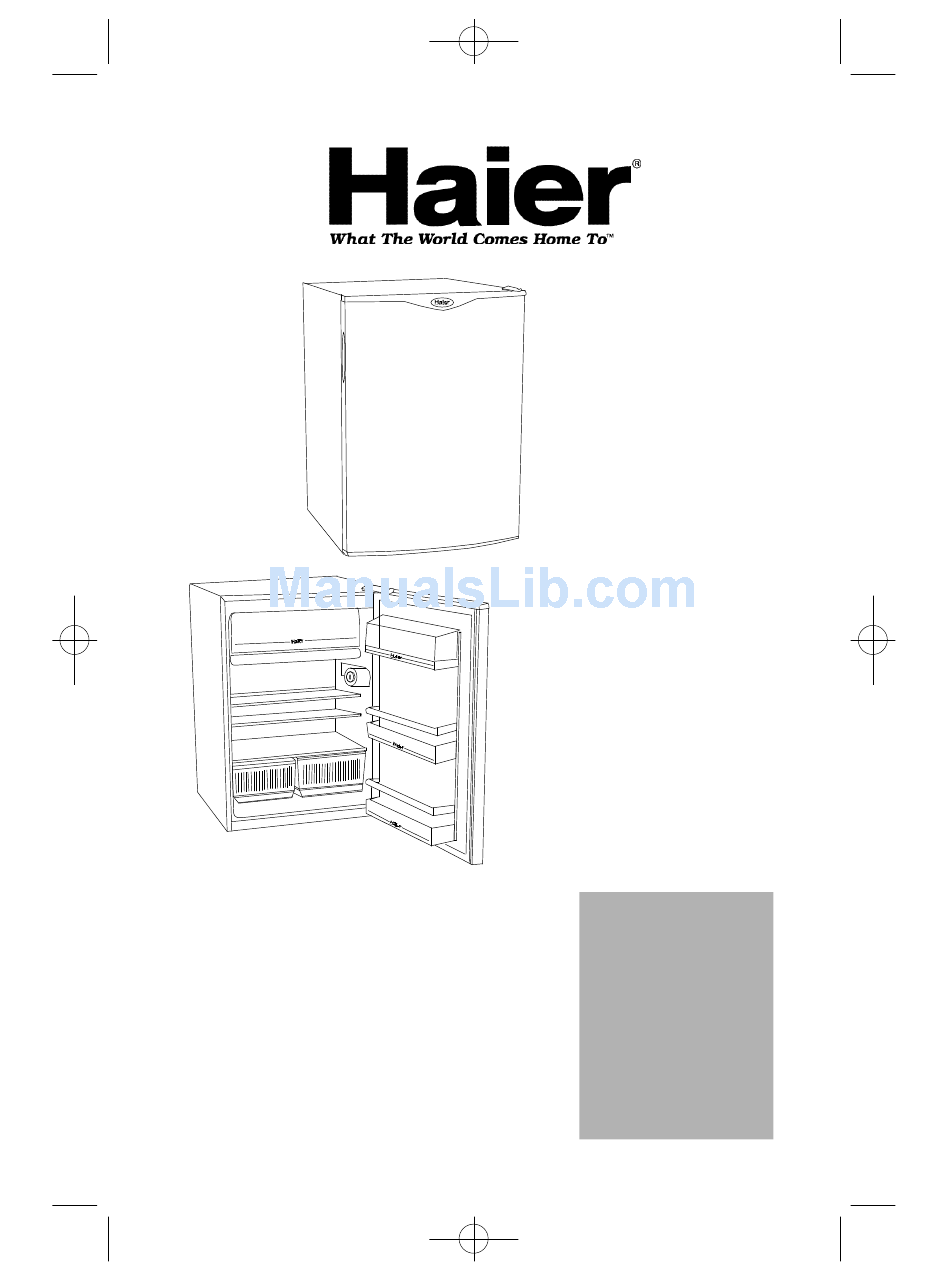

- Page 1 HSP06WNAWW-manual 10/22/01 12:37 PM Page 1 Compact Refrigerator Réfrigérateur Compact Refrigerador Compacto User Manual- Model # Guide de l’Utilisateur- Modèle HSP06WNA Manual del Usuario- Para Modelo de...
-
Page 2: Safety Precautions
When using this appliance, always exercise basic safety precautions, including the following: 1) Use this appliance only for its intended purpose as described in this use and care guide. 2) This refrigerator must be properly installed in accordance with the installation instructions before it is used. -
Page 3: For Future Reference
10/22/01 12:37 PM Page 3 English 10) This refrigerator should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only. 11) Do not operate your refrigerator in the presence of explosive fumes. SAVE THESE INSTRUCTIONS... -
Page 4: Table Of Contents
Refrigerator Features And Use ............General Features..................8 Refrigerator Interior Shelves ..............8 Defrosting....................10 Food Storage Information ..............11 Normal Operating Sounds..............12 Proper Refrigerator Care and Cleaning ........13 Cleaning and Maintenance ..............13 Power Interruptions ................14 Vacation and Moving Care ..............14 Troubleshooting................15 Warranty Information ..............17... -
Page 5: Parts And Features
5. Adjustable Glass Shelf 2. Adjustable Temperature 6. Adjustable Front Leveling Leg Control and Light (not shown) 3. Covered Dairy Shelf 7. 2 Crispers 4. 2 Full Width Door Shelf. 8. Glass Crisper Cover (Accomodates 2 liter bottles) 9. Egg Tray... -
Page 6: Installing Your Refrigerator
After properly placing your refrigerator in its final position, you can level your refrigerator. • Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them counterclockwise to lower your refrigerator. -
Page 7: Electrical Requirements
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to power the refrigerator. • Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard. -
Page 8: Door Alignment
1. Remove the top hinge cover. 2. Loosen the top hinge screws using a phillips head screwdriver. 3. Adjust the door or put a spacer in between and then tighten the screws. 4. Replace the top hinge cover. fig. # 1... -
Page 9: Refrigerator Features And Use
To remove or replace a full-width slide-out shelf or glass crisper cover: (see fig. # 2) 1. Gently tilt the shelf up and slide forward until the shelf has been completely removed. 2. To replace the shelf, gently slide the shelf back. -
Page 10: Door Shelves
# 3 • To replace insert the right tab in the appropriate slot on the door liner and snap in the left side. Crisper •... -
Page 11: Defrosting
Make sure the drip tray is under the freezer section and push the defrost button on the thermostat. Defrosting may take a few hours. To speed up defrost time, keep the door open and place a bowl of warm water in the refrigerator. -
Page 12: Food Storage Information
Food Storage Information Fresh Food • When storing fresh food, which is not prepackaged, be sure to wrap or store food in airtight and moisture proof material unless otherwise noted. This will ensure proper shelf life and prevent the transfer of odors and tastes. -
Page 13: Hsp06Wnaww-Manual 10/22/01 12:37 Pm
Page 13 English Normal Operating Sounds You May Hear • Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils. • The thermostat control will click when it cycles on and off. -
Page 14: Proper Refrigerator Care And Cleaning
Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your refrigerator. • Rinse with clean warm water and dry with a soft cloth. • Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,concentrated detergents, solvents or metal scouring pads. -
Page 15: Power Interruptions
Power Interruptions • Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet. If outage is for a prolonged period, inspect and discard spoiled or thawed food in freezer and refrigerator. -
Page 16: Troubleshooting
• Check if thermostat control is not in the “OFF” position. • Check if refrigerator is plugged in. • Check if there is power at the ac outlet, by checking the circuit breaker. Food temperature appears too warm • Frequent door openings. - Page 17 • Prolonged or frequent door openings. • Check door gaskets for proper seal. Refrigerator has an odor: • Interior needs cleaning. • Foods improperly wrapped or sealed are giving off odors. Refrigerator door does not shut properly: • Level the refrigerator. • Re-align refrigerator door.
-
Page 18: Warranty Information
What will be done? limitations may not apply to you. Some States do not allow limitations on how 1. We will repair or replace, at our dis- long an implied warranty lasts, so the cretion any mechanical or electrical above limitations may not apply to you. - Page 19 IMPORTANTE No regrese este producto a la tienda Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A). NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA...
