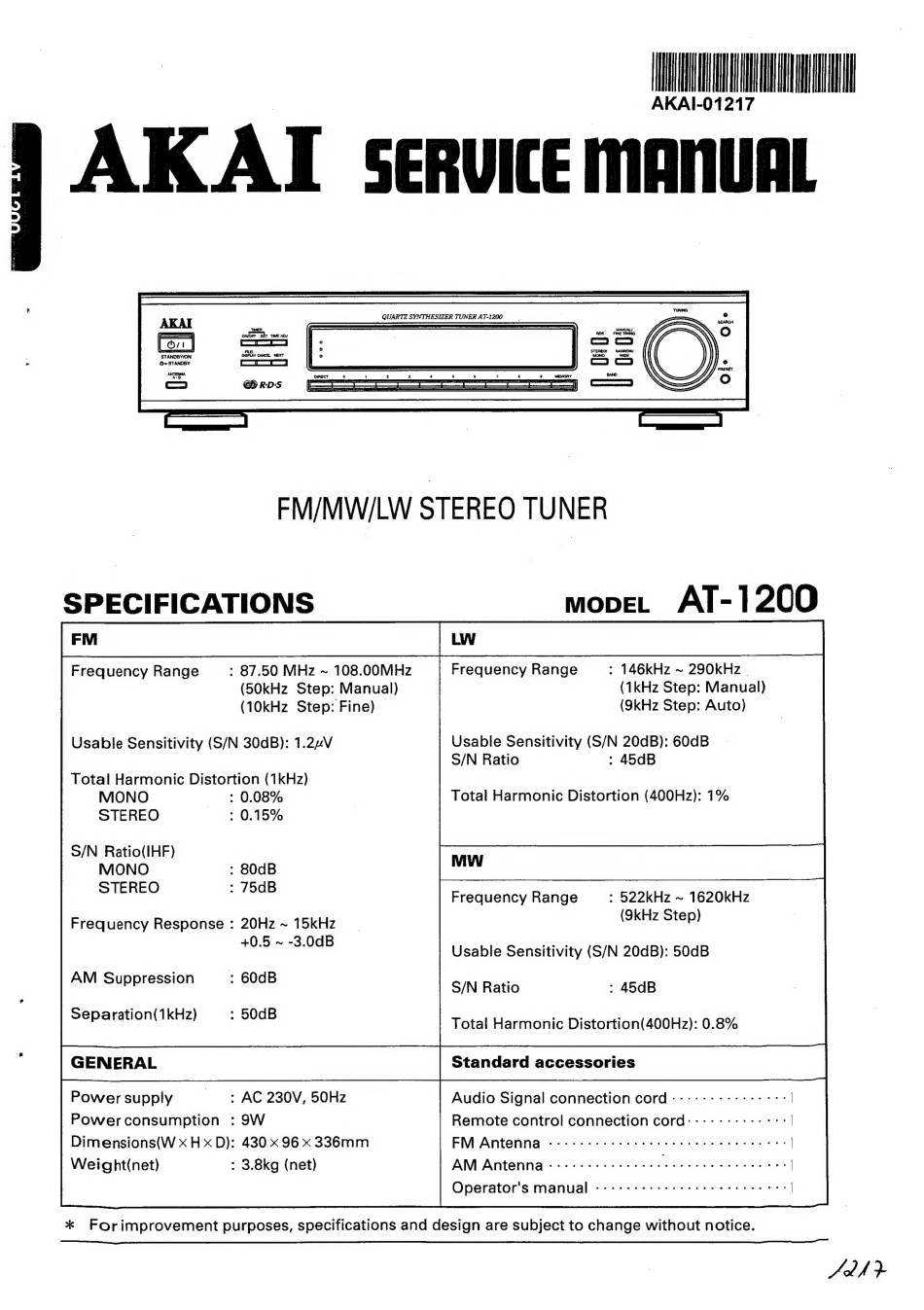

AKAI SERVICE MANUAL

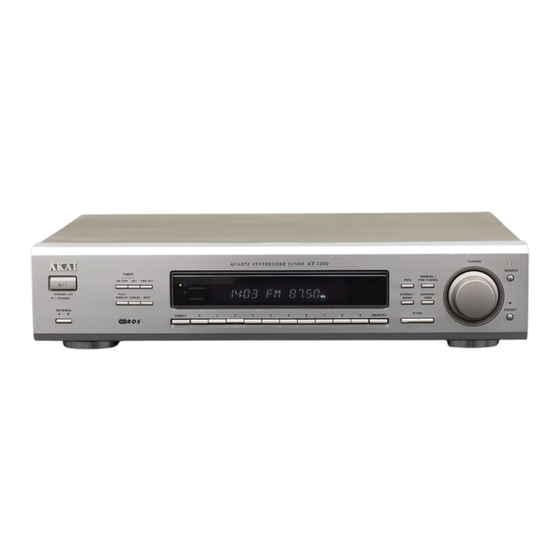

QUARTZ SYNTHESIZER TUNER AT-1200
EM/MW/LW STEREO TUNER
SPECIFICATIONS move. AT-1200
Frequency Range : 87.50 MHz ~ 108.00MHz Frequency Range > 146kHz ~ 290KHz -
(50kHz Step: Manual) (1kHz Step: Manual)
(10kHz Step: Fine) (9kHz Step: Auto)
Usable Sensitivity (S/N 30dB): 1.24V Usable Sensitivity (S/N 20dB): 60dB
S/N Ratio : 45dB
Total Harmonic Distortion (1kHz)
MONO : 0.08% Total Harmonic Distortion (400Hz): 1%
STEREO 1 0.15% |
S/N Ratio(IHF)
MONO : 80dB
Frequency Response : 20Hz ~ 15kHz (9kHz Step)
AM Suppression : 60dB
S/N Ratio : 45dB
| [GeNeraL | Standarctnccessories
Power supply 1 AC 230V, 50Hz Audio Signal connection cord
Power consumption : 9W Remote control connection cord
Dimensions(W x H x D): 430 x 96 x 336mm FM Antenna
Weight(net) : 3.8kg (net) AM Antenna
Operator's manual
* Forimprovement purposes, specifications and design are subject to change without notice.
