PUSH POWER
Instructions for use
SL-PP62K1

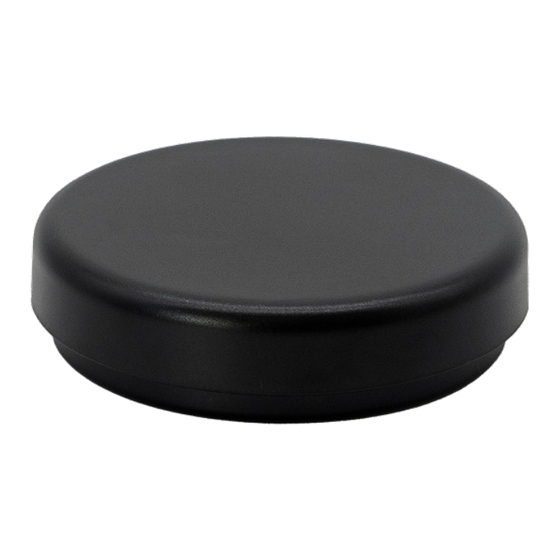

COOKIE - Push button 62 mm (black)
Thank you for choosing a SIRO light switch!
These simple instructions will help you to install and use your new switch.
TECHNICAL DRAWING
62 mm
Must not be disposed of with household waste.
Must not be disposed of in household waste.
PRODUCT FEATURES
`
Push button to stick in the room or on furniture.
`
No battery and no wiring necessary!
`
Battery-free device without external power supply.
`
Transmission energy is generated from mechanical energy when the push
button is pressed.
`
Radio-based range up to 80 meters.
`
Push Button can be connected to any number of Push Power Receivers.
`
Functions: ON - OFF - DIMMING with MONO receiver ON - OFF - DIMMING with
DUO receiver (no color change possible!)
`
A changeover switch function is provided when several switches are used.
`
Available in black (K1) version
ASSEMBLY
`
Free to use,
`
glue with adhesive dots
DIMENSIONS
`
Push button (DxH):
TECHNICAL FEATURES
`
Transfer protocol:
`
Range (without mesh):
`
IP Rating:
SAFETY AND INSTALLATION INSTRUCTIONS
16 mm
`
DThis product is not a toy and is not suitable for children!
`
Dhe SIRO LED system is only suitable for indoor use. Unprotected outdoor
use is not permitted. Contact with moisture must be avoided at all costs!
SCOPE OF DELIVERY
`
`
Pushbutton
`
Adhesive strips in a circle shape
SIRO fittings and metal
goods factory
Spielfeldstrasse 12
4452 Ternberg, Austria
62 x 16 mm
RF 433 mhz
30 meters (indoors)
IP20
Tel . +43 (0)7256.6020.0
© 2024 All rights
Fax . +43 (0)7256.8932
reserved. All rights
E-mail office@siro.at
reserved
Web . www.siro.at
Version 01/24
