Summary of Contents for AguaStella AS59CH

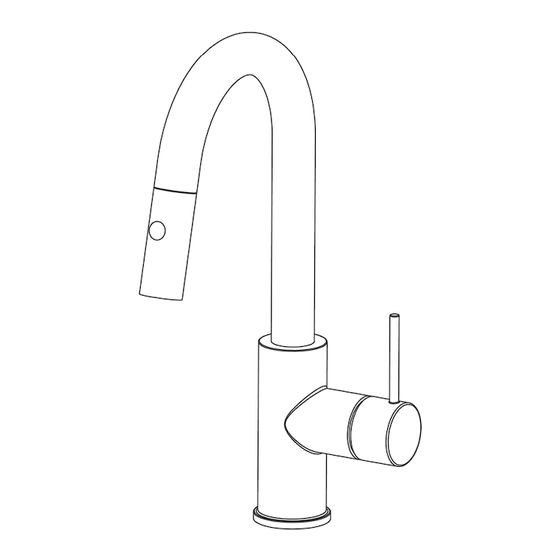

- Page 1 Installation Instructions AS59CH/AS59MB/AS59B B Pull-Down Bar Sink Kitchen Faucet...
- Page 2 Features 1. Chrome/Matte Black/Brushed Gold/Brushed Brass 2. Sedal ceramic disc cartridge: Tested with 500,000 cycles 3. All metal construction 4. Pull-down sprayer with dual function: Spray and stream (TIP: Switch by sliding the round button on the sprayer head up and down. Don’t push it in!) 5.
-
Page 3: Tools Needed
Turn on the hot and cold knobs on the existing faucet to release the built-up pressure. ·Always wear safe glasses when cutting or soldering water supply lines. ·Keep the drain covered to avoid losing parts. · AguaStella is not liable for any damage to the product, countertop or sink due to improper installation. Installation 1. - Page 4 3. Place the faucet body into the faucet hole of the deck/sink (Figure 3). A standard 1-3/8" hole is required for this faucet. Figure 3 4. From underneath the deck/sink, slide the rubber washer followed by the metal washer all the way up to the threaded shank (Figure 4).
- Page 5 Test the faucet by turning the faucet on and off. Make sure the water flow is right and no leaks. If it leaks, turn the water supply off and contact AguaStella at aguastellausa@outlook.com. Figure 8 Page 4...
-
Page 6: Troubleshooting Guide
Trouble-Shooting Guide Issue Cause Solution Faucet cannot be secured The threaded shank is not Screw the threaded shank tight to the counter with tight in the faucet’s body. tight in the faucet’s body the black lock nut. with your hand. Water is leaking from inside The 3 hoses inside the faucet’s Screw the 3 hoses tight to the of the faucet’s body. -
Page 7: Product Information
Product Information Page 6...
