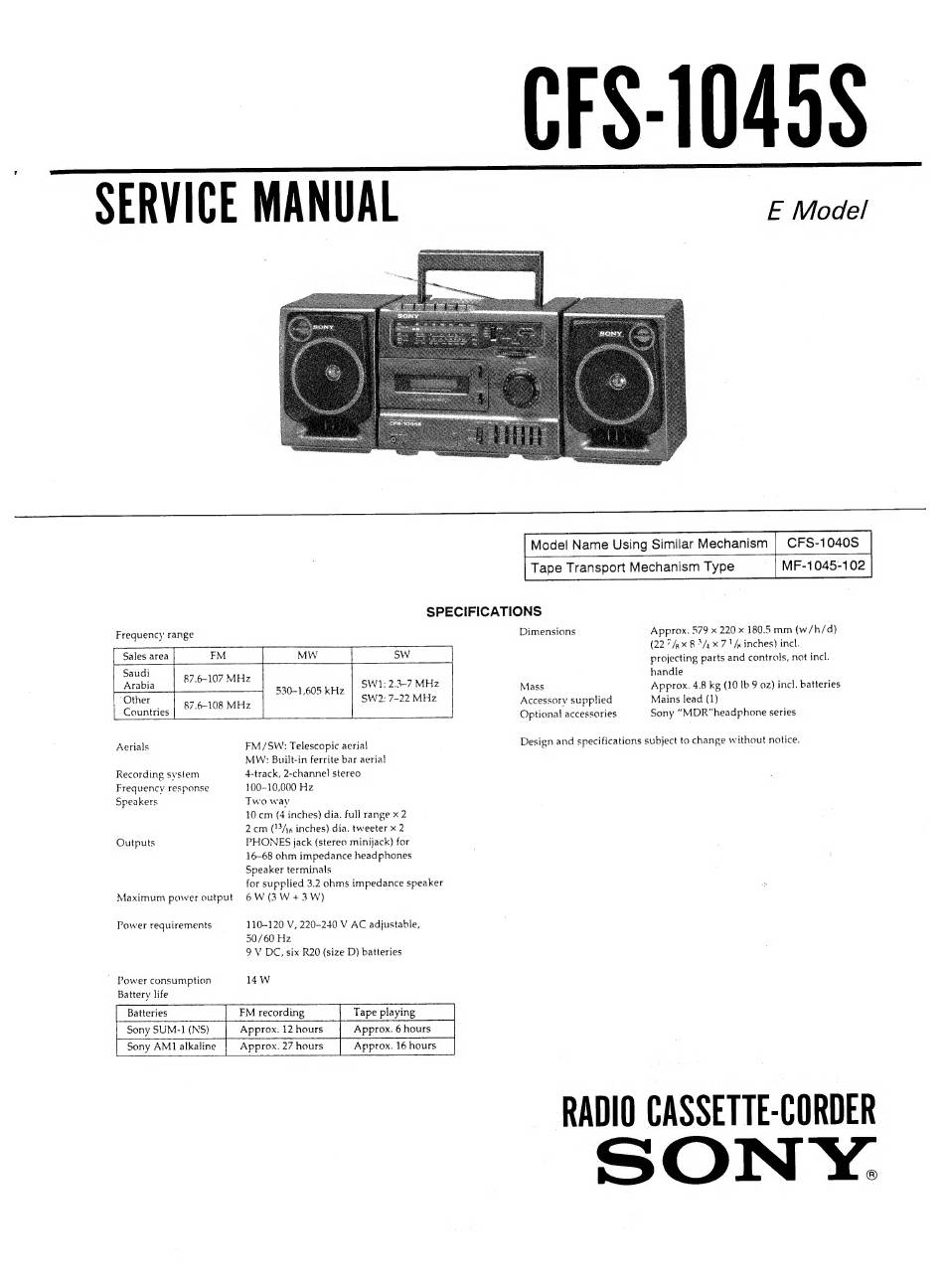

Sony CFS-1045S E Service Manual

CFS-10498 |
CFS-1040S
MF-1045-102
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
SPECIFICATIONS
Frequency range
Dimensions
Approx. 579 x 220 x 180.5 mm (w/h/d)
(227 847 Mince) inl
a r
projecting parts and controls, not incl.
87.6-107 MHz '
MW: Built-in ferrite bar aerial
Recording system 4-track, 2-channel stereo
Frequency response 100-10,000 Hz
Speakers Two way
10 cm (4 inches) dia. full range x 2
2.cm (!3/16 inches) dia. tweeter x 2
Outputs PHONES jack (stereo minijack) for
16-68 ohm impedance headphones
Speaker terminals
for supplied 3.2 ohms impedance speaker
Maximum power output 6W(3W+3W)
Power requirements 110-120 V, 220-240 V AC adjustable,
50/60 Hz
9V DC, six R20 (size D) batteries
Power consumption 14W
Battery life
Batteries FM recording Tape playing
Sony SUM-1 (NS) Approx. 12 hours Approx. 6 hours
Sony AM1 alkaline Approx. 27 hours Approx. 16 hours
RADIO CASSETTE-CORDER
ONY.
