READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING. KEEP THIS INSTRUCTIONS FOR FUTURE REFERENCE
Fixtures must be wired in accordance with the National electrical code and all applicable local codes. Proper grounding is required for safety.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A QUALIFIED ELECTRICIAN
WHO IS FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Risk of fire or electric shock. High bay Light installation requires knowledge of luminaires and electrical systems. If not qualified,DO NOT try to install.
Please contact an electrician.
Risk of fire or electric shock. Suitable for wet locations. Make sure the power is off permier to install.
Risk of fire or electric shock. Suitable for non-insulated surface and frame.DO NOT cover fixture with insulation liner or similar material.
DO NOT install in unstable, loose or breakable surfaces.
DO NOT let objects impact or exert force on the surface of the fixture.
Page 1

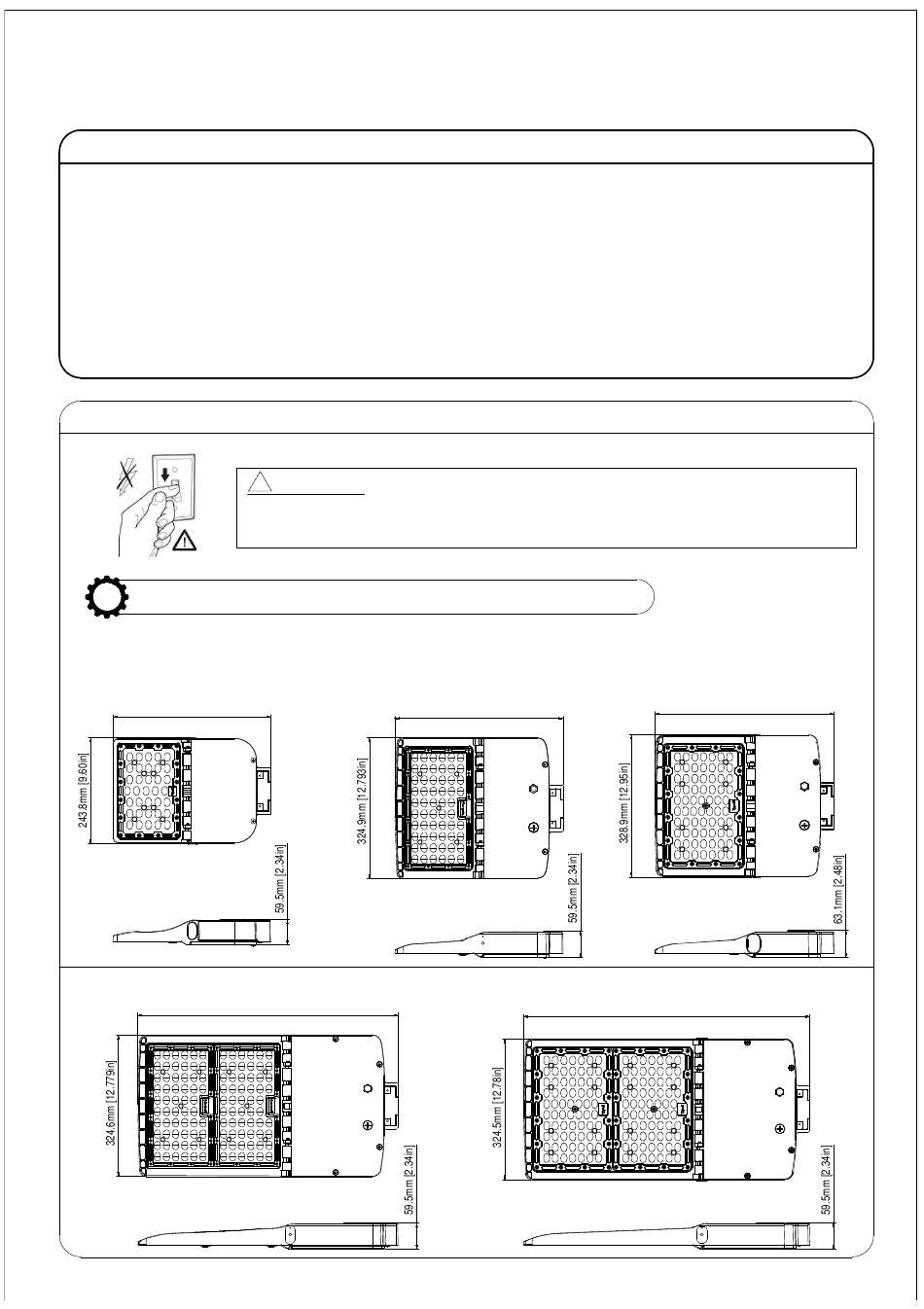

Installation Instructions LED shoe box Light(Type F) Important READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING. KEEP THIS INSTRUCTIONS FOR FUTURE REFERENCE Fixtures must be wired in accordance with the National electrical code and all applicable local codes. Proper grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A QUALIFIED ELECTRICIAN WHO IS FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
Page 2
Installation and Electrical Connection The installation steps are as follows: 1.Install the sensor (only Shoebox-F with the sensor version ) Screwdiver 1).Remove a protective cover(a) from the 2).Install a sensor(c) and waterproof ring(d) fixture(b) into the fixture(b) SHOEBOX-F with the sensor : F1 size F2 size F3 size...
Page 3
Installation and Electrical Connection The installation steps are as follows: 2.Slip Fitter Mounting Kit 196.9mm [7.751in] Ø65mm [Ø2.559in] Straight rod round arm mounting Hoisting arm lamp pole installation 90° 90° Adjustable Angle Adjustable Angle Internal wiring diagram Step : 1.Remove light fixture and bracket from carton 2.Insert the bracket above the lamp post and tighten the screws 3 .
Page 4
Installation and Electrical Connection The installation steps are as follows: 3.Adjusted Arm Mounting Kit Round 65mm [2.559in] 207.8mm [8.181in] 30mm [1.181in] Ø65mm [Ø2.559in] Round rod installation Square bar installation Note: Screw plate must be placed inside the lamp post ° Internal wiring diagram Adjustable Angle Step :...
Page 5
Installation and Electrical Connection The installation steps are as follows: 4 . Arm Mounting Kit Round 60mm [2.362in] 179mm [7.047in] 12mm [0.472in] 146.9mm [5.783in] Circular light pole fittings Round rod installation Square bar installation Internal wiring diagram Note: Screw plate must be placed inside the lamp post Step :...
Page 6
Installation and Electrical Connection The installation steps are as follows: 6 . Trunnion Mounting Kit Ø16mm [Ø0.630in] 80mm [3.150in] Ø12mm [Ø0.472in] adjustable bolt 5 . Bracket 311mm [12.244in] 46mm [1.811in] 11.5mm [0.453in] 4mm [0.157in] adjustable bolt Step : 1.Drill holes in the wall according to the size of the bracket holes and install bolts. 2.Connect the lamp circuit correctly according to the local national electrical wiring standard.
