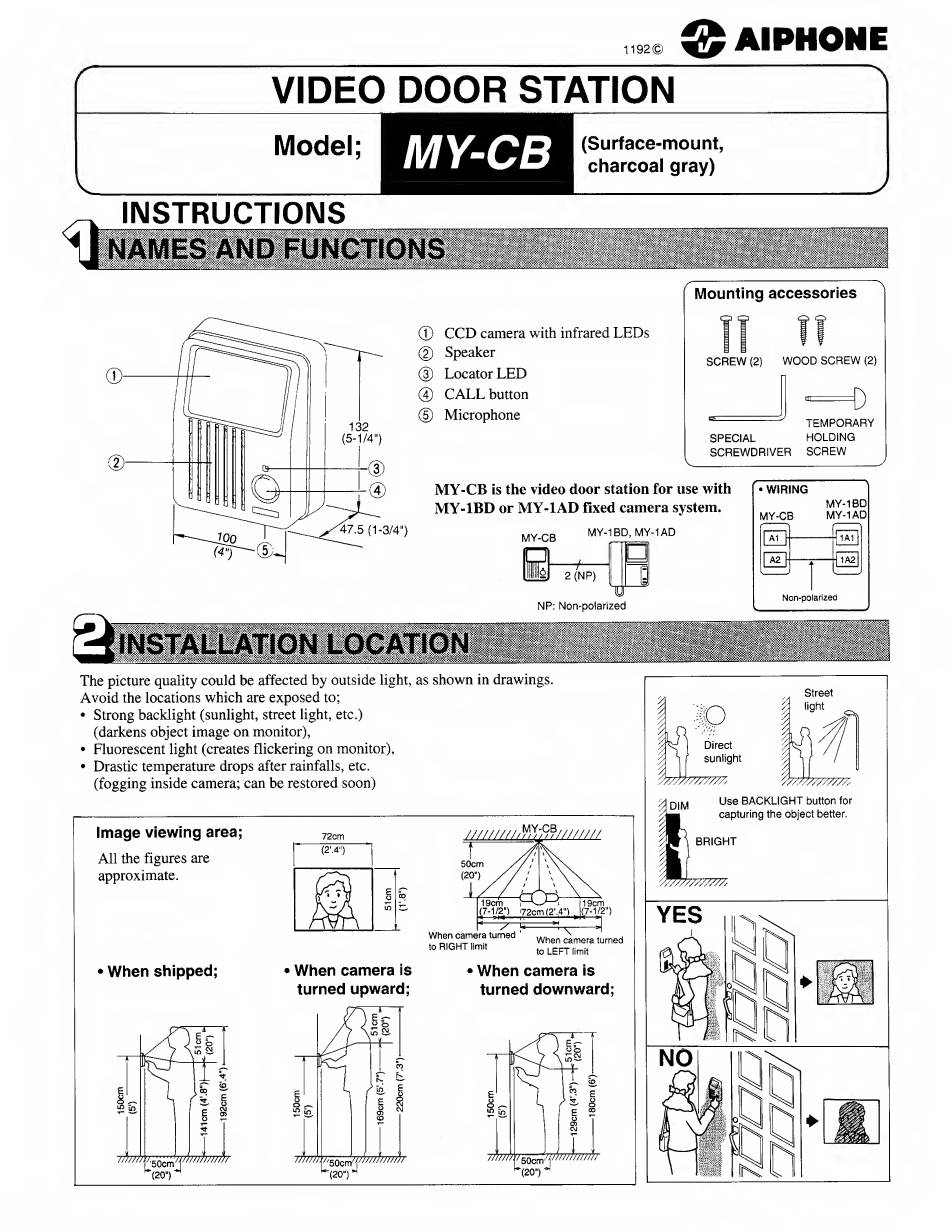

O AlPHONE
INSTRUCTIONS
NAMES ANP FUNCTIONS
Mounting accessories
132
(5-1/4")
© CCD camera with infrared LEDs
© Speaker
@ Locator LED
@ CALL button
® Microphone
SCREW (2)
WOOD SCREW (2)
--
TEMPORARY
SPECIAL
HOLDING
SCREWDRIVER
SCREW
47.5 (1-3/4":
MY-CB is the video door station for use with
MY-IBD or MY-IAD fixed camera system.
MY-CB
MY-IBD, MY-IAD
Bhisdn
idr—
NP: Non-polarized
•WIRING
MY-1BD
MY-CB
MY-1AD
|ai [■
■|lAll
-
"I
''^1
Non-polarized
1
i
m
iwin
The picture quality could be affected by outside light, as shown in drawings.
Avoid the locations which are exposed to;
• Strong backlight (sunlight, street light, etc.)
(darkens object image on monitor),
• Fluorescent light (creates flickering on monitor),
• Drastic temperature drops after rainfalls, etc.
(fogging inside camera; can be restored soon)
Image viewing area;
All the figures are
^ DIM
BACKLIGHT button for
capturing the object better.
) BRIGHT
approximate.
' When shipped;
19cm
^
19cm
(7-1/2:)
i72cm(2'.4") , (7-112
")
YES
When camera turned '
to RIGHT limit
When camera turned
to LEFT limit
> When camera is
turned upward;
' When camera is
turned downward;
