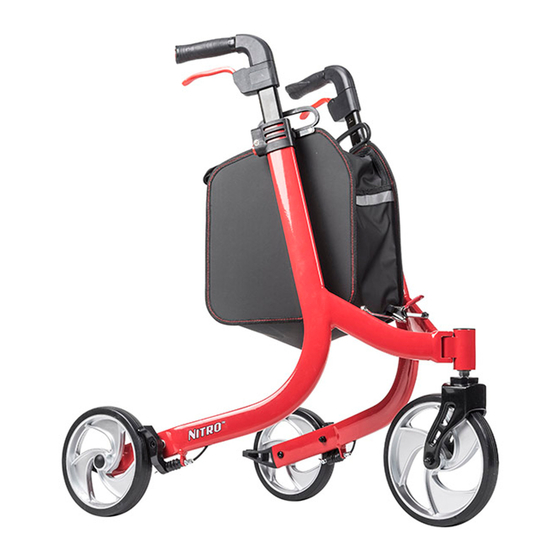

- Page 1 Nitro™ 3-wheel rollator item # RTL10266TWHL VER.A.11.20...
-
Page 2: Parts List
parts list WEIGHT CAPACITY: 300 LBS (136 KG) 6. Folding hinge Handgrip 7. Bag 2. Adjustable tubing handgrip 8. Front wheel 3. Rear reflector on handgrip 9. Brake adjust screw 4. Brake lever 10. Rear wheel 5. Interlock button for handgrips introduction The Walking aid is suitable for a single user with limited mobility. -
Page 3: Height Adjustment
unfolding the Nitro™ Rollator To unfold the Rollator, position the Nitro™ upright on all three wheels. Hold each hand grip and pull outward until the Nitro™ rollator unlocks and opens fully (figure 1-2). Gently push down on locking handle located near the front wheel. An audible “click” confirms that the folding hinge is fully engaged in lock position. - Page 4 removing / attaching the carry bag To remove bag, push down quick release tab and gently pull up on the carry bag handle (figure 4). Repeat with other side. To replace bag, simply insert quick release tab back into the buckle. An audible “click”...
-
Page 5: Adjustment Of Brakes
adjustment of brakes To adjust the braking strength hold the nut firmly in place. To loosen, turn the brake adjuster clockwise (figure 7) towards the inside of the frame. To tighten, turn the brake adjuster counter-clockwise (figure 8) towards the outside of the frame. TURN HOLD TURN... - Page 6 curb assist The Nitro™ Rollator features a Curb Assist for terrain transitions. The Curb Assist allows the user to move over curbs and small steps with ease. The Curb Assist is visibly located on the inside of the rear wheel (figure 11). How to Use the Curb Assist: 1.
-
Page 7: Safety Instructions
safety instructions • Use only as a walking aid! • Use only on even and solid surfaces. • Maximum user weight: 300 lbs. • Regularly check the screws and fasteners on the Nitro™ Rollator and retighten if necessary. • Use bag only for transport of objects and do not overload. Maximum load: 11 lbs. •... -
Page 8: Maintenance
The warranty does not extend to non-durable components, such as rubber accessories, casters, and grips, which are subject to normal wear and need periodic replacement. If you have a question about your Drive device or this warranty, please contact an authorized Drive dealer.
