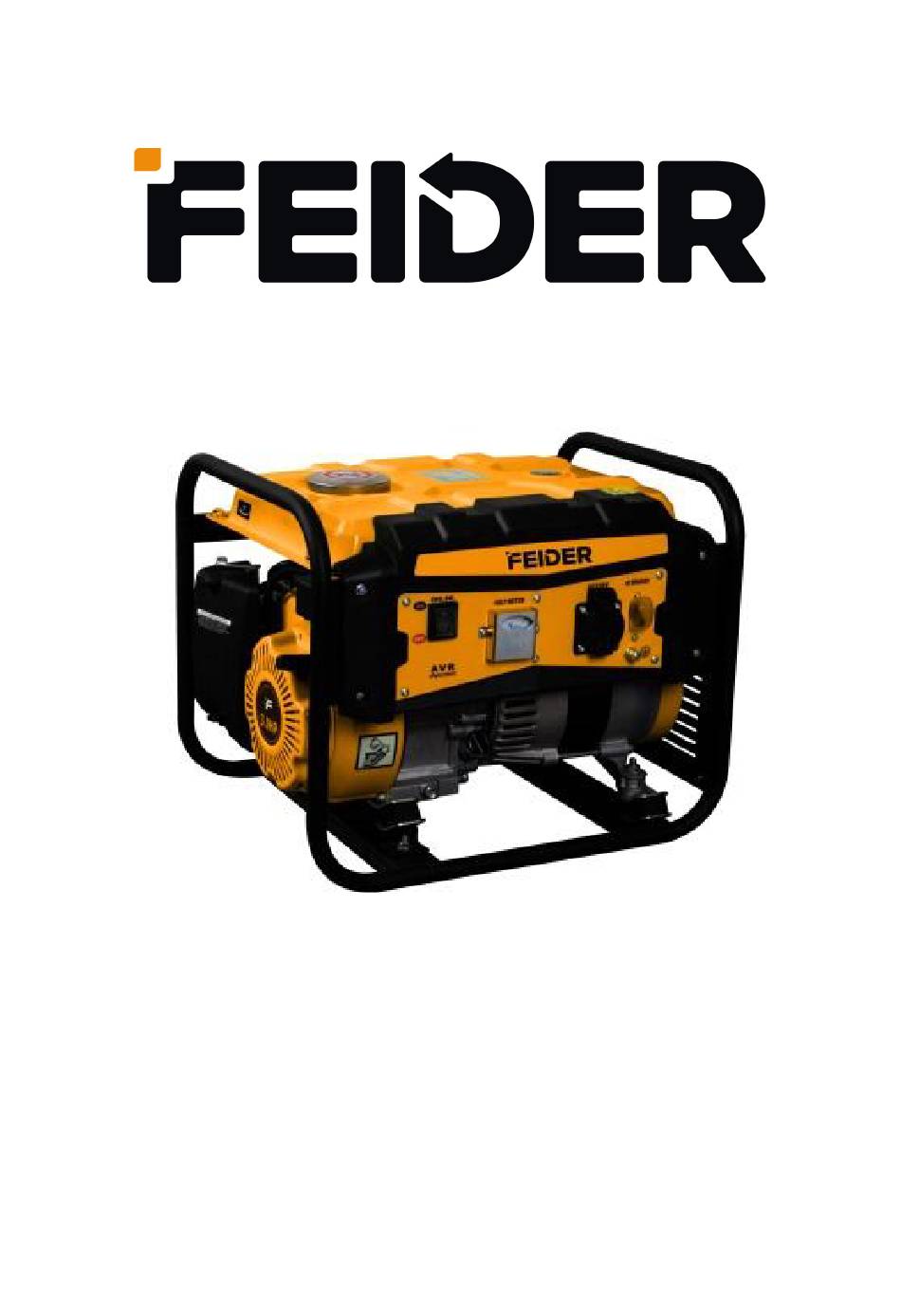

- Page 1 ORIGINAL INSTRUCTIONS >EN LOW POWER GENERATING SET FG1000 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. PARTS IDENTIFICATION........................8 3. CONTROLS............................. 8 4. GENERATOR USE..........................10 5. PRE-OPERATION CHECK.........................13 6. STARTING/STOPPING THE ENGINE....................15 7. MAINTENANCE............................15 8. TRANSPORTING/STORAGE......................19 9. TROUBLESHOOTING.........................21 10. CIRCUIT DIAGRAM...........................22 11. SPECIFICATIONS..........................23 12. DECLARATION OF CONFORMITY....................24 13. WARRANTY............................25 14. PRODUCT FAILURE.........................26 15. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Warning: 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4. - Page 4 tightening them if necessary. Clean the components of the air filter periodically, and replace the air filter when necessary. Remove any electrical equipment that is plugged in before starting or stopping the generator. Before transporting the generator, you must empty the fuel tank. ...
- Page 5 If you swallow fuel by mistake, if you inhale fuel vapours or if you get drops of fuel in your eyes, see a doctor immediately. If a certain quantity of fuel is spilt on your skin or clothing, wash or change your clothes.
- Page 6 Close the fuel tap Drain fuel from the fuel tank Empty carburetor fuel Symbol explanation Attention! Please read the manual carefully before using the unit! Conforms to relevant safety standards Do not dispose of old appliances with domestic rubbish Add engine oil.
- Page 7 Warnings on the product Read them carefully before using the generator.
-
Page 8: Parts Identification
2. PARTS IDENTIFICATION NOTE: Diagrams may vary according to the types. 3. CONTROLS 1) Engine Switch To start and stop the engine. Switch position: OFF: To Stop the engine. Key can be removed/inserted. ON: To run the engine after starting. START: To start the engine by turning the starter motor. - Page 9 3) Fuel Valve The fuel valve is located between the fuel tank and carburetor. When the valve lever is in the ON position, fuel is allowed to flow from the fuel tank to the carburetor. Be sure to return the lever to OFF after stopping the engine.
-
Page 10: Generator Use
7) Oil Alert System The oil alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase can fall below a safe limit, the oil alert system will automatically shut down the engine (the engine switch will remain in the ON position). - Page 11 potential for electrical shock. • If an appliance begins to operate abnormally, becomes sluggish or stops suddenly, turn it off immediately. Disconnect the appliance, and determine whether the problem is the appliance, or if the rated load capacity of the generator has been exceeded. •...
- Page 12 protector has switched off. Wait a few minutes and push the button in to reset the DC circuit protector. Connecting the battery cables: 1) Before connecting charging cables to a battery that is installed in a vehicle, disconnect the vehicle’s grounded battery cable. WARNING The battery gives off explosive gases;...
-
Page 13: Pre-Operation Check
5. PRE-OPERATION CHECK 1) Engine oil NOTICE Engine oil is a major factor affecting engine performance and service life. Non-detergent and 2-stroke engine oils will damage the engine and are not recommended. Check the oil level BEFORE EACH USE with the generator on a level surface with the engine stopped. - Page 14 Use gasoline with a pump octane rating of 86 or higher. We recommend unleaded gasoline because it produces fewer engine and spark plug deposits and extends exhaust system life. Never use stale or contaminated gasoline or oil/gasoline mixture. Avoid getting dirt or water in the fuel tank.
-
Page 15: Starting/Stopping The Engine
6. STARTING/STOPPING THE ENGINE Starting the engine 1. Make sure that the AC circuit breaker is in the OFF position. The generator may be hard to start if a load is connected. 2. Turn the fuel valve to the ON position. 3. - Page 16 1) MAINTENANCE SCHEDULE REGULAR SERVICE PERIOD Performed Each First Every 3 Every 6 Every at every indicated month or operating hour month months months year or interval, whichever comes first. or 20 or 50 or 100 300 Hrs. ITEM Hrs. (3) Hrs.
- Page 17 Used motor oil may cause skin cancer if repeatedly left in CAUTION Used motor oil may cause cancer if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.
- Page 18 4) Reinstall the air cleaner element and the cover. 5) Fuel Sediment Cup Cleaning The sediment cup prevents dirt or water which may be in the fuel tank from entering the carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned.
-
Page 19: Transporting/Storage
The gap should be: 0.70-0.80 mm (0.028-0.031 in). 6) Check that the spark plug washer is in good condition, and thread the spark plug in by hand to prevent cross-threading. 7) After the spark plug is seated, tighten with a spark plug wrench to compress the washer. If installing a new spark plug, tighten I/2 turn after the spark plug seats to compress the washer. - Page 20 Reinstall the spark plug. Change the engine oil. After removal from storage, drain the stored gasoline into a suitable container, and fill with fresh gasoline before starting. *Use gasoline conditioners that are formulated to extend storage life. Contact your authorized generator dealer for conditioner recommendations. 1) Drain the carburetor by loosening the drain screw.
-
Page 21: Troubleshooting
9. TROUBLESHOOTING When the engine will not start: Is there fuel in the tank? Refill the fuel tank Add the recommended oil. Is there oil in the tank? STILL SPARK Is there spark from Replace the Take the generator to an spark plug. -
Page 22: Circuit Diagram
10. CIRCUIT DIAGRAM... -
Page 23: Specifications
11. SPECIFICATIONS Engine model PT156F1 Single cylinder, 4-strokes, Forced air Engine type cooling, OHV. Displacement (CC) 93cc Rated speed 3000/min Igniting system Transistor magneto Starting system Recoil Engine Fuel Volume (L) 5.2 L Continuous operation time (h) 8.5h Min. Fuel consumption (g/kWh) 435 g/kWh Lube Oil capacity (L) 0.36L... -
Page 24: Declaration Of Conformity
BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: LOW POWER GENERATING SET Model: FG1000 Serial number: 20240709271-20240709470 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it:... -
Page 25: Warranty
1 3 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 26: Product Failure
1 4 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 27: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 28 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
